| Display Specifications | |

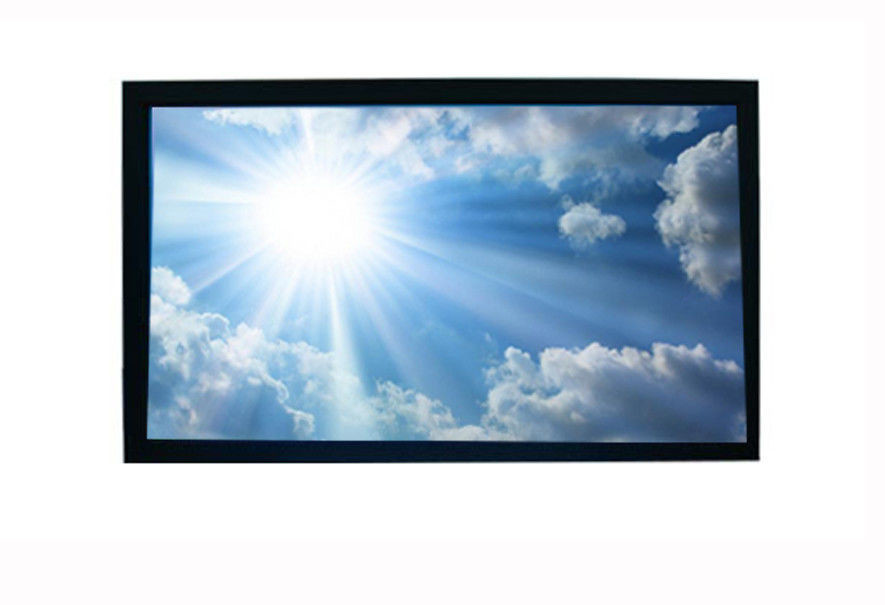

| Display | 42″ Color TFT high brightness touch monitor |
| Model Name | AXD-42OPN1P2-TH4 |
| Active Display Area (mm) | 930.25 (H)x523.01(V) |
| Pixel Pitch (mm) | 0.4845(H)x0.4845 (V) |
| Resolution (Pixel) | WSXGA (1920X1080) |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 4000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 118 W typical, normal operation |
| Touch Screen | Resistive RS232/USB(Optional) |
| OSD Control | On the back side |

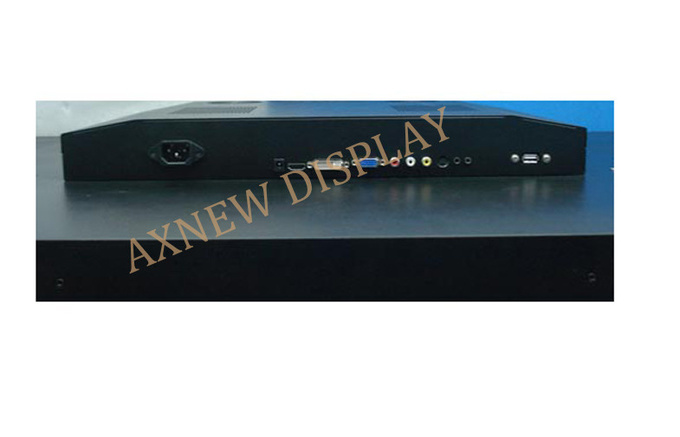

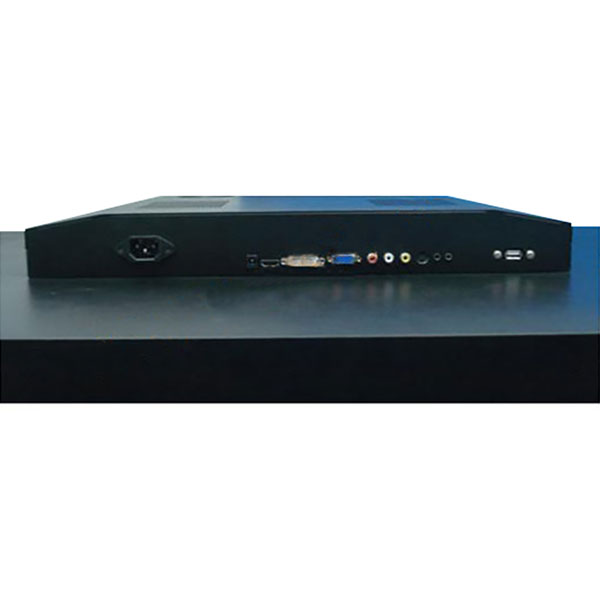

| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
|
Power Input Touch Screen options |
220v IR Touch panel |
| Mechanical Specifications | |
| Construction | Steel metal housing |
| Dimensions | 1037.0x 579.0x 76(mm) |
| Mounting | Embedded ,fixing holes on the vesa mounting |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | 0~60ºC |
| Storage Temperature | -20~60ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 42″ sunlight readable touch LCD HD with 220 V |
