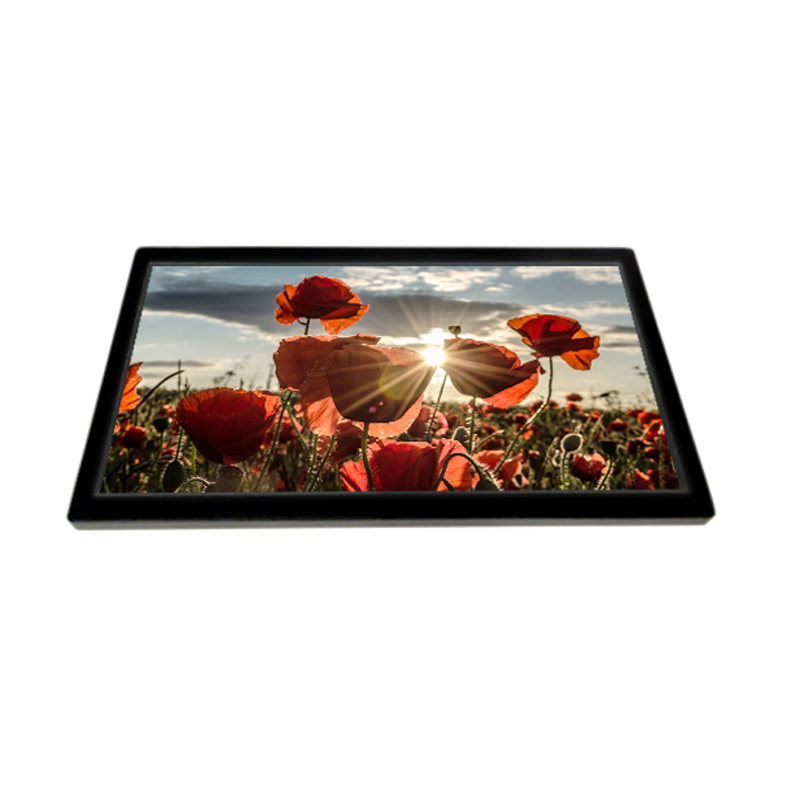

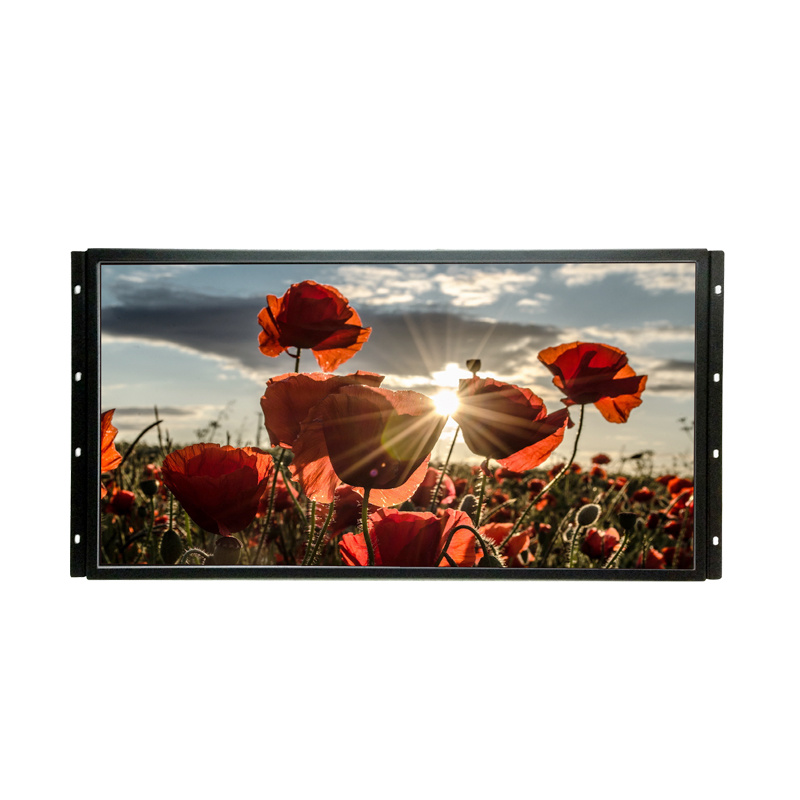

24 Inch Slim High Brightness Monitor, Open Frame Monitor Hdmi Vga Dvi Inputs 178 Angle

Brand :

Model: AXD-24OPN1P1-VH3

Screen Size: 24″

Screen format: 16:9

Display Resolution(pixel): 1920X1080

Contrast Ratio: 3000:1

Brightness: 1000cd/m^2

Storage temperature : -20℃~60℃
Operating temperature : 0 to 50°C

Input signal: VGA DVI

Power Input: AC 100~240V/ 12V DC

Product status: Stock



Display Specifications

Display
24″ high brightness 1000nits lcd monitor
Model Name
AXD-24OPN1P1-VH3
Active Display Area (mm)
531.36 (H) x 298.89 (V)
Pixel Pitch (mm)
0.2767(H) x 0.2767 (V)
Resolution (Pixel)
1920X1080
Brightness (CD/m^2)
1000cd/m^2
Contrast Ratio
3000:1
Viewing Angle (CR >=10)
178/178
Power consumption
58W typical, normal operation
Touch screen
Options
OSD Control
On the back side
I/O Connectors
1x12v,1XVGA,1xHDMI,1XDVI-D
Power Input
AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications

Construction
Roasted Metal Frame
Dimensions
572.7x 353.7x 38.7(mm)

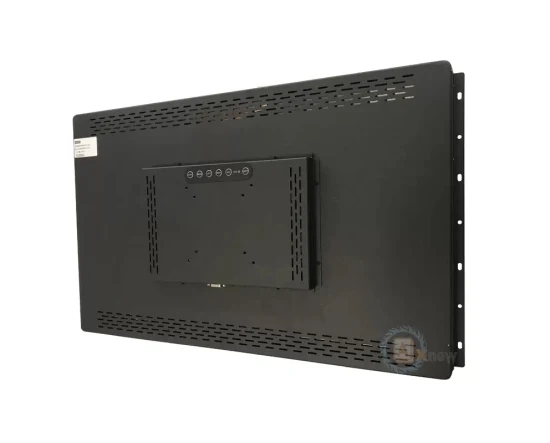

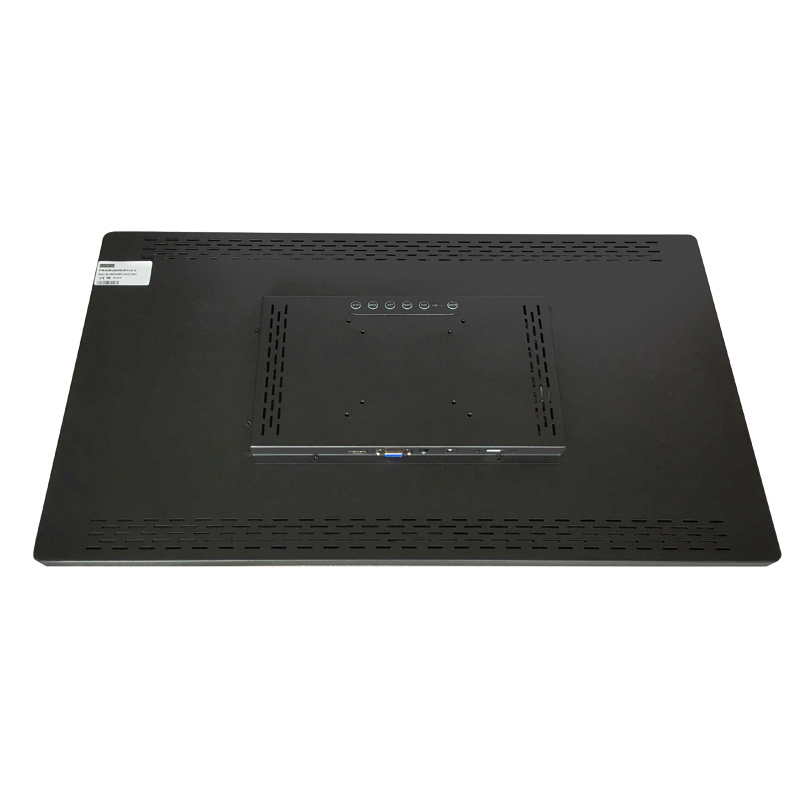

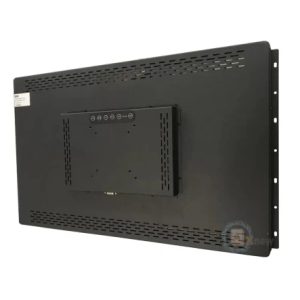

Mounting
backside fixing holes ,VESA 75×75(100×100)
Power source
AC 100~240V/ 12V DC
Environment Specifications

Operating Temperature
0~50℃
Storage Temperature
-20~60℃
Rating
Facilitate installation of the demolition, solid portfolio



Features and Advantages

  1. 24 inch wide viewing angle 89/89/89/89 with Full HD high resolution
  2. 1000nits Sunlight readable wide screen,supporting by industrial controller board with VGA DVI HDMI inputs
  3. slim and thin design widely used for outdoors gaming industry outdoor Automatic equipments, outdoor Advertising , outdoor vending embedded system, outdoor Kiosks, etc

24 inch Slim High Brightness Monitor , Open Frame Monitor Hdmi Vga Dvi Inputs 178 Angle
