Features and Advantages
1. Fanless Design; Ultra Slim and Compact Mechanical Design
2. High Luminance LCD Panel with A new grade
3. Intel®3865U /I3 7100U 2.0 GHz Processor
4. 12 ” VGA 1024 x 768 Resolution Color TFT LCD Display
5. Fully IP65 Waterproof front Compliant Stainless Steel Chassis
6. Supports Wide Range DC Power Input (12V) for special project
7. Intel® SATA SSD Compatible
8. Wake-on-LAN functionality for targeted centralized startup via a network
9. Economic type of panel pc can be widely used to mount into the Automatic equipments, Gas Station ,Advertising , vending embedded system, Kiosk application etc.
Specifications datasheet
| Panel PC information | |
| Model Number | AXD-12PPC2-A1 |
| 12.1’’ Touch panel pc | |
| Case/Bezel Color | Black |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 4:3 |
| Touch Panel | Projected-capacitive Touch Flat Screen |
| Touch response time | 10ms (typical) |
| Optimal (native) Resolution | 1024×768 |
| LCD panel Pixel pitch | 0.264 x 0.264 mm |
| LCD panel Colors | 16.7 million |
| LCD panel Brightness | 350 cd/m2 |
| LCD panel Response Time | 8ms |
| Contrast Ratio | 800:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±80° or 160° total |
| Vertical (up/down) | 70°(up), 70°(down) or 140° total |
| CPU | Soldered onboard Intel® Celeron 3865U 1.8GHz/I3 7100 U
Processor; DDR4 1600MHz SDRAM |
| storage | Brand new SATA SSD (64G/128G/256G) |
| Serial Ports | 2 x COM ports (1x RS-232/422/485 by-pin connector) |
| USB Ports | 2 x USB external ports ; 6 six USB internal ports |
| LAN | 1 x LAN RJ-45 connector |
| Net | 1 x Realtek RTL8111C Gigabit Ethernet controller |
| DC Power In | 1 x 4-pin connector |
| Video Port | 1 x DVI-D female connector for Digital Video Output |
| Watch Dog Timer | 1~255 levels reset |
| Internal Sockets & Connectors | 1 x Compact Flash socket (reserved for OEM project) |
| Power Specification | DC 12V |
| Working Environment | |
| Temperature | Operating: -10°C to 70°C ;Storage -20°C to75°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Shock | Operating 16G, 11ms & Non-operating 4G, 20ms (with |
| Dimensions | |

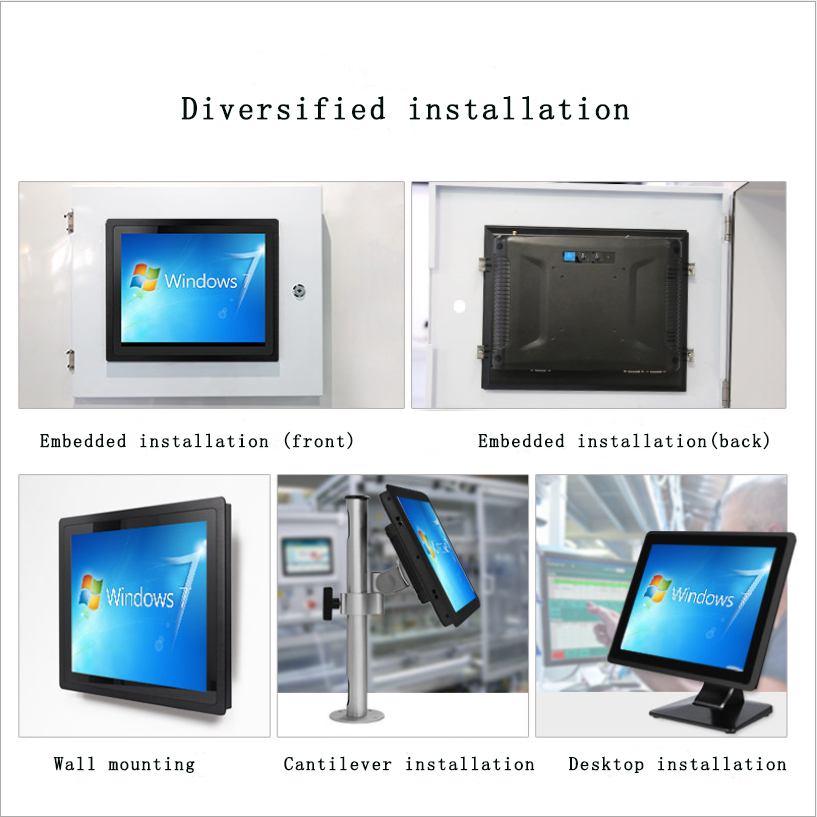

| Mounting Type | Embedded Installation |
| Mechanical dimensions | 344 x 58 x 263 mm |
| Weight (Net) | 5.5 kgs/ piece |
| Drawings | Please contact us for details |
| Order Information | Model Number: 1)AXD-12PPC2-A1 800×600 with 3865U
2) AXD-12PPC2-A2 800X600 with I3 7100U 3) AXD-12PPC2-A3 1024X768 with 3865U 4) AXD-12PPC2-A4 1024X768 with I3 7100U |
| Other Details | Minimum Order Quantity: 5 Pieces
Price: Depends on product and order quantity Packaging Details: 5 Pcs /Carton with firm foam Delivery Time: 10-15 working days Payment Terms: T/T, Paypal, Western Union Supply Ability: 2000 pieces/month |
