The application scope of the 10.4-inch surface acoustic wave touch screen is relatively wide, mainly including the following fields:
Industrial Control: In the industrial production environment, it is used for operation panels, monitoring equipment, etc. Its high durability and anti-interference ability enable it to adapt to the complex environment of the industrial site.
Medical Equipment: Such as medical examination equipment, self-service registration and payment machines in hospitals, nursing workstations, etc. The high sensitivity and stability of the surface acoustic wave touch screen help improve the accuracy and efficiency of medical operations. At the same time, its good anti-pollution property also facilitates daily cleaning and disinfection.
Transportation: It is applied in equipment such as in-vehicle navigation systems, electronic bus stop signs, and subway ticket vending machines.
Commercial Display: Commonly found in shopping mall guide machines, interactive screens of brand display cabinets, electronic menus in restaurants, etc. It provides interactive shopping guidance and product introductions.
| Display Specifications | |

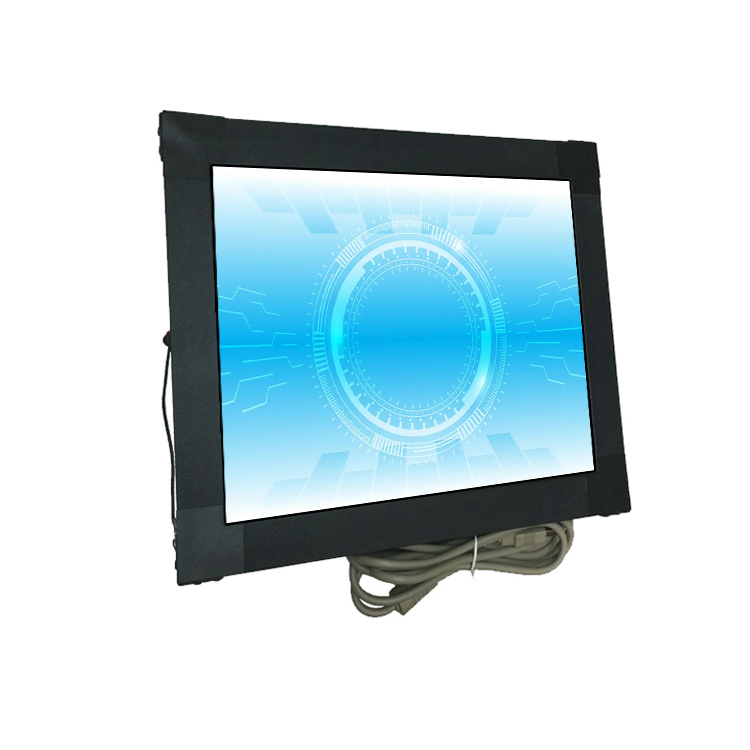

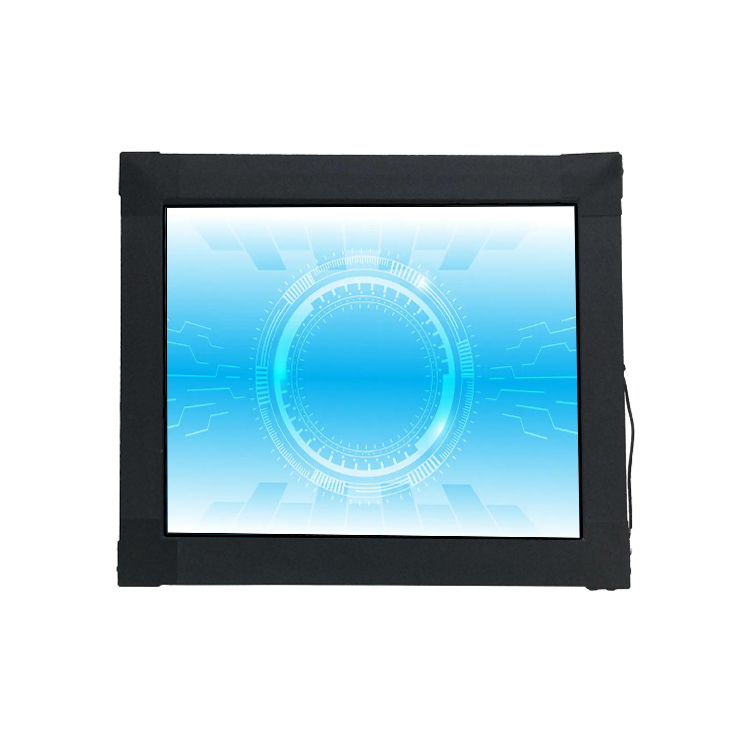

| Display | 10.4″ Color TFT Industrial Monitor with IP65 front |
| Model Name | AXD-10OPIPN1P1-T2W |
| Active Display Area (mm) | 221.2 (H)x158.4(V) |
| Pixel Pitch (mm) | 0.264(H)x0.264(V) |
| Resolution (Pixel) | SVGA (800X600) 16.2M Color |
| Brightness (CD/m^2) | 800cd/m^2 |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 160/140 |
| Power consumption | 13.6W typical, normal operation |
| Touch Screen | Resistive ;IR Touch ;RS232/USB;Wave touch(Optional) |

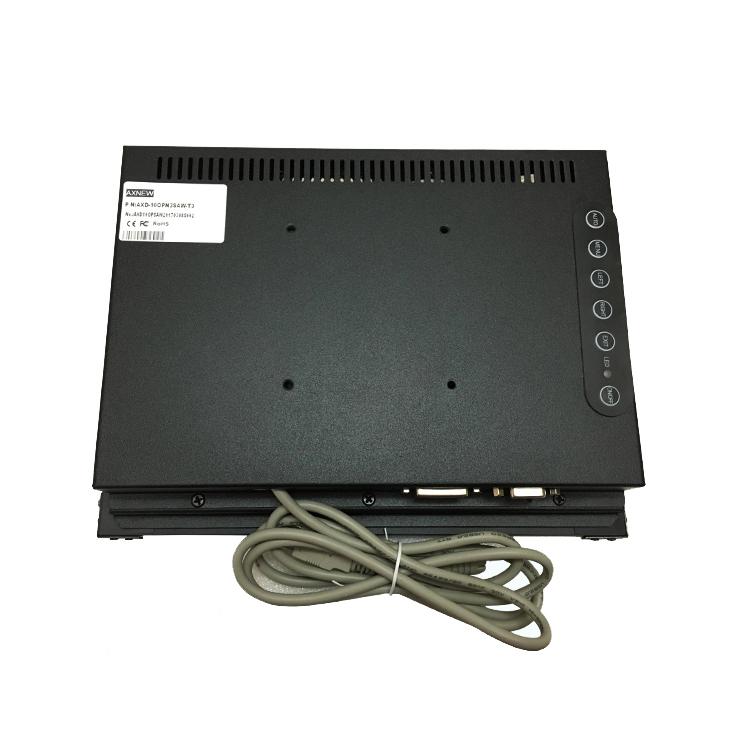

| OSD Control | On the back side |

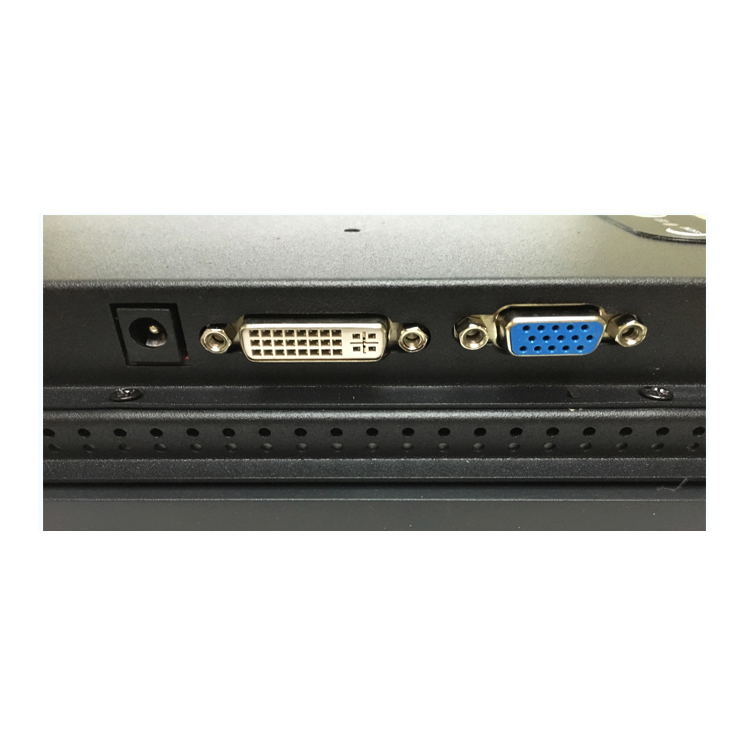

| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Aluminum front bezel &Black Color |
| Dimensions | 306.6x 230.1x 57.0(mm) |
| Mounting | Embedded ,Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~85ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 10.4″ IP Monitor with VGA input and power adapter |
Packaging & Delivery
| Packing details | 1x 10.4 inch Industrial LCD display; Packed in 5 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing
4. Industrial design to protect the LCD screen, mounting on the outdoor application
5. VGA DVI interfaces
