| Display Specifications | |

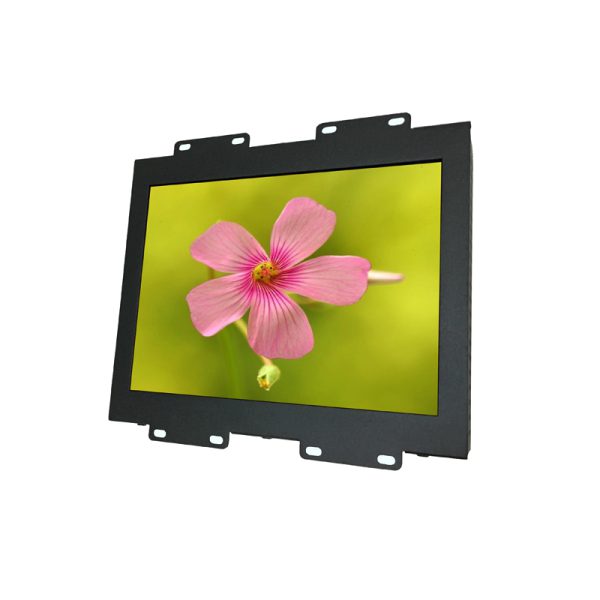

| Display | 8.4″ Color TFT Open Frame IR Touch monitor with LED backlight |
| Model Name | AXD-084OPT4 |
| Active Display Area (mm) | 170.4(H)x127.8(V) |
| Pixel Pitch (mm) | 0.213(H)x0.213(V) |
| Resolution (Pixel) | SVGA (800X600)16.2MColor |
| Brightness (CD/m^2) | 450cd/m^2 |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 160/140 |
| Power consumption | 3.3W typical, normal operation |
| Touch Screen | Resistive;RS232/USB(Optional) |

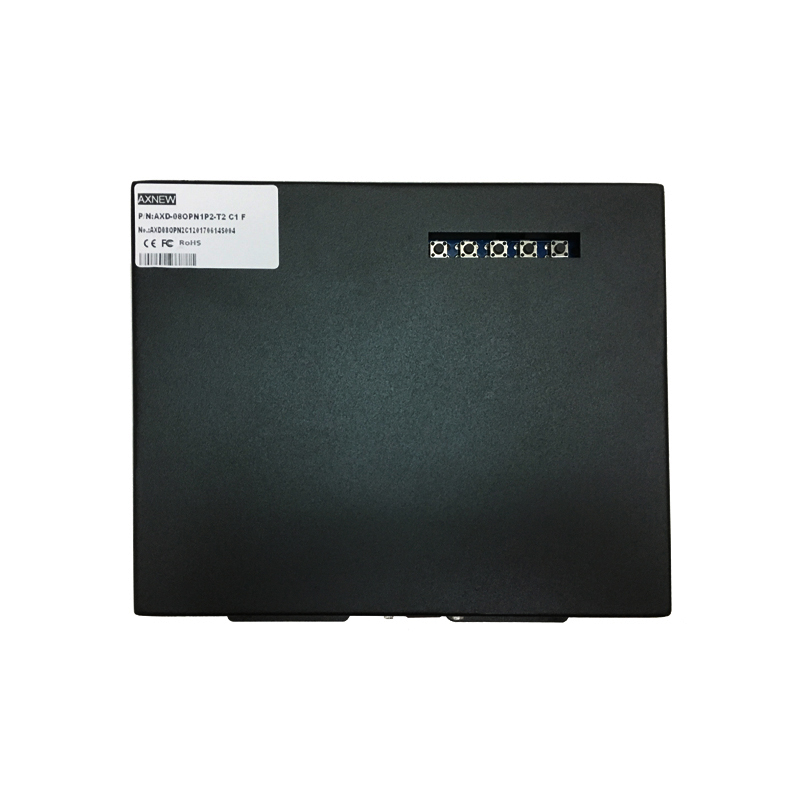

| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA, DVI-D options |
| Power Input | DC 12V,4A48W |
| Mechanical Specifications | |
| Construction | Steel open frame & black Color |
| Dimensions | 210.0 x 147.4x 22.0 (mm) |
| Mounting | Embedded, rear mounting |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 8.4” Open frame IR touch Monitor with VGA input |
