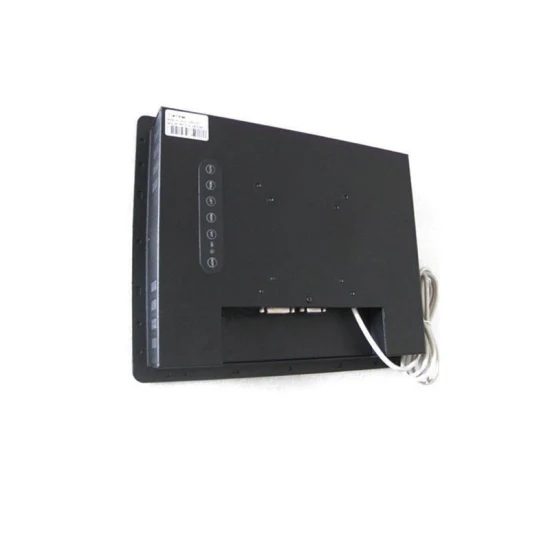

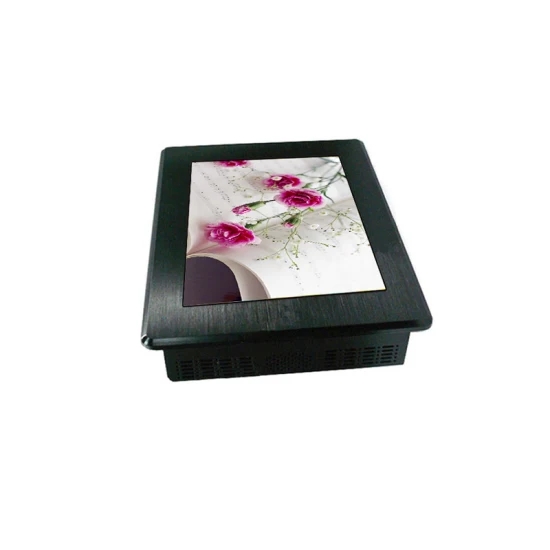

Mini Saw POS 15 Inch Touch Screen Monitor LCD 160/140 Wide Screen

Brand :

Model NO: AXD-15OPT3P1
Screen Size: 15 Inch
Display Resolution(pixel): 1024×768
Contrast Ratio:500:1
Brightness (CD/m^2): 250/350 cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc

Display Specifications

Display

15″ Color TFT Industrial touch Monitor

Model Name

AXD-15OPT3P1

Active Display Area (mm)

305.7(H)x229.7(V)

Pixel Pitch (mm)

0.297(H)x0.297(V)

Resolution (Pixel)

VGA (1024×768)6 bit + FRC

Brightness (CD/m^2)

250/350 cd/m^2

Contrast Ratio

500:1

Viewing Angle (CR >=10)

160/140

Power consumption

28 W typical, normal operation

Touch Screen

SAW Touch ;RS232/USB(Optional)

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V, 4A 48W

Mechanical Specifications

Construction

Steel metal housing & black Color

Dimensions

359.0x 270.0×46.3(mm)

Mounting

Embedded ,vesa75x75;100×100 Wall Mounting Optional

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

-10~70ºC

Storage Temperature

-30~80ºC

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

15″SAW  touch monitor with VGA Input and power adapter

Features and Advantages

1. New and A grade perfect panels with wide viewing angle
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environmen
5. VGA DVI interfaces; SAW long use life with USB/ RS232 touch controller
6. 15 inch touch open frame monitor for application control , advertising player ,campus and industrial terminals etc
