High Bright Full HD 21.5 Inch Capacitive Touch Monitor with AV RGB Signal Inputs

Brand :

Model NO: AXD-21OPN1P1-T2P

Screen Size: 21.5 Inch

Display Resolution(pixel): 1920×1080

Contrast Ratio:1000:1

Brightness (CD/m^2): 250cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Display Specifications
Display 21.5″ Touch LCD Monitor (LED)
Model Name AXD-21OPN1P1-T2P
Active Display Area (mm) 476.64 (H)x268.11(V)
Pixel Pitch (mm) 248.25 (per one triad) x 248.25
Resolution (Pixel) WSXGA (1920X1080)
Brightness (CD/m^2) 250cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 178/178
Power consumption 25.71 W typical, normal operation
Touch Screen Resistive Touch; Pro-Capacitive Touch; SAW;
Infrared Touch (Optional)
OSD Control On the back side

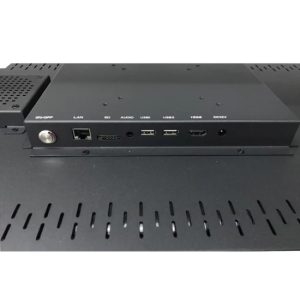

I/O Connectors 1x12v,1XVGA,DVI-D,HDMI(Optional)
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel metal housing
Dimensions 522.0x 294.6x 33.0(mm)
Mounting Embedded ,fixing holes on the back frame
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature 0~55ºC
Storage Temperature -20~60ºC
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 21.5″ Touch lcd Open frame FHD with VGA input and power adapter

Packaging & Delivery

Packing details 1x 21.5 inch Industrial Touch Screen Monitor;
Packed in 2 pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power
adapter
Delivery terms 7- working days for stock products after receiving payments;
15 working days for order production



Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces and the optional port for touch screen
6. 21.5” Open frame monitor for gaming , advertising player ,kiosk terminals etc
