Features and Advantages
1. Panel Mount /Wall Mount with Flat design for all in one PC
2. 21 inch 1920×1080 IPS Panel with A new grade
3. Intel® I3-3217U 2.0GHz Processor/ I3-7100U Dual core 2.5GHZ
4. Using multi touch PCAP touch panel, high sensitive and fast-response
5. 3mm vandal-proof touch glass to protect the pc .
6. Supports Wide Range DC Power Input with industrial power connector
7. Can be customized 9V-36V wide voltage, 4 Pin aviation plugs sockets, Shock – proof.
Specifications datasheet
| Panel PC information | |
| Model Number | AXD-21PPC-A5C |
| 21.5 ’’Industrial Touch panel pc | |
| Case/Bezel Color | Black/Silver |
| TFT Type | Brand new IPS LCD with LED backlight |
| Aspect ratio | 16:9 |
| Touch Panel | Projected-capacitive Touch Flat Screen |
| Touch response time | 10ms (typical) |
| Optimal (native) Resolution | 1920×1080 |
| LCD panel Pixel pitch | 0.297 x 0.297mm |
| LCD panel Colors | 16.7 million |
| LCD panel Brightness | 250 cd/m2 |
| LCD panel Response Time | 8ms |
| Contrast Ratio | 1000:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±88° or 176° total |
| Vertical (up/down) | 88°(up), 88°(down) or 176° total |
| CPU | Soldered onboard Intel® Dual Core I3-3217U Dual core
2.0GHZ Processor; DDR4 1600MHz SDRAM |
| storage | Brand new SATA SSD socket(64G/128G) |
| Serial Ports | 2 x COM ports (1x RS-232/422/485 by-pin connector) |
| USB Ports | 2 x USB external ports ; 6 six USB internal ports |
| LAN | 1 x LAN RJ-45 connector |
| Net | 1 x Realtek RTL8111C Gigabit Ethernet controller |
| DC Power In | 1 x 4-pin connector |
| Video Port | 1 x VGA female connector; 1X HDMI |
| Internal Sockets & Connectors | 1 x Compact Flash socket (reserved for OEM project) |
| Power Specification | DC 12V 5A |
| Working Environment | |
| Temperature | Operating: -10°C to 60°C ;Storage -20°C to70°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Shock | Operating 16G, 11ms & Non-operating 4G, 20ms (with |
| Dimensions | |
| Mounting Type | Embedded Installation/ Wall mount |

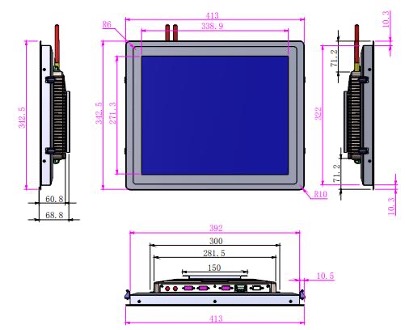

| Mechanical dimensions | 413x 342.5 x 68.8 mm |
| Weight (Net) | 7 kgs/ piece |
| Drawings | Please contact us for details |
| Order Information | Model Number: 1)AXD-21PPC-A5C I3-3217U (8G+64G)
2) AXD-21PPC-A5C2 I5-6200U( 8G+128G) |
| Other Details | Minimum Order Quantity: 2 Pieces
Price: Depends on product and order quantity Packaging Details: 2 Pcs /Carton with firm foam Delivery Time: 7-15 working days |
