| Panel PC information | |
| Model Number | AXD-15PPC-VI5 |

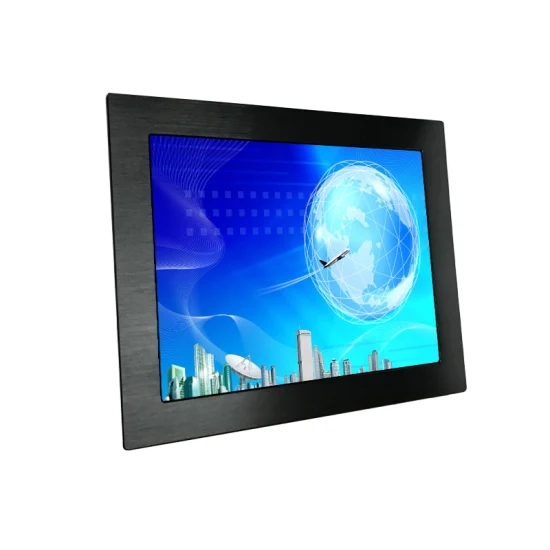

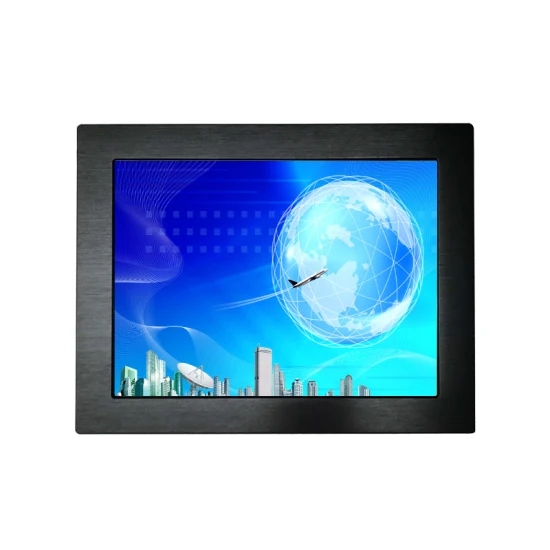

| 15” Touch panel pc | |
| Case/Bezel Color | Black |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 4:3 |
| Touch Panel | Industrial Projective capacitive touch Screen |
| Touch response time | 10ms (typical) |
| Optimal (native) Resolution | 1024×768 |
| LCD panel Pixel pitch | 0.296 x 0.296 mm |
| LCD panel Colors | 16.2 million |
| LCD panel Brightness | 400 cd/m2 |
| LCD panel Response Time | 8ms |
| Contrast Ratio | 700:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±70° or 140° total |
| Vertical (up/down) | 80°(up), 80°(down) or 160° total |
| CPU | Intel® Atom™ D2550 1.86GHz |
| storage | 16/32 G SSD ( optional) |

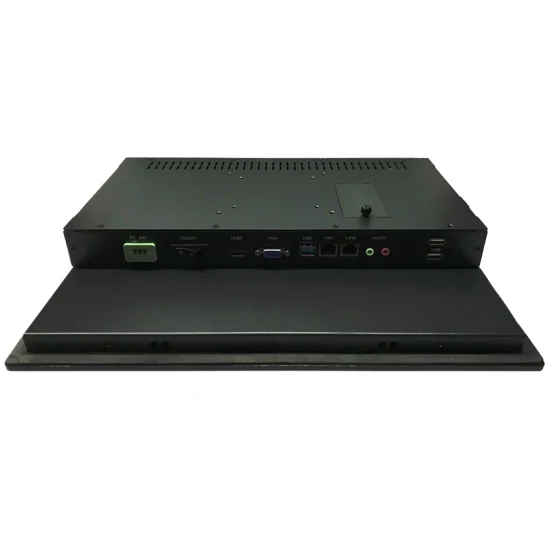

| Serial Ports | 2 x COM ports |
| USB Ports | 4 x USB |
| LAN | 1 x LAN RJ-45 connector |
| DC Power In | 1 x DC2.5 connector |
| Video Port | 2X Audio |
| Other Ports | 2x LAN, 1XVGA,1xHDMI,1XLPT |
| Internal Sockets & Connectors | 1 x Compact Flash socket (reserved for OEM project) |
| Power Specification | DC 12V |
| Working Environment | |
| Temperature | Operating: -10°C to 50°C ;Storage -20°C to 70°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Dimensions | |

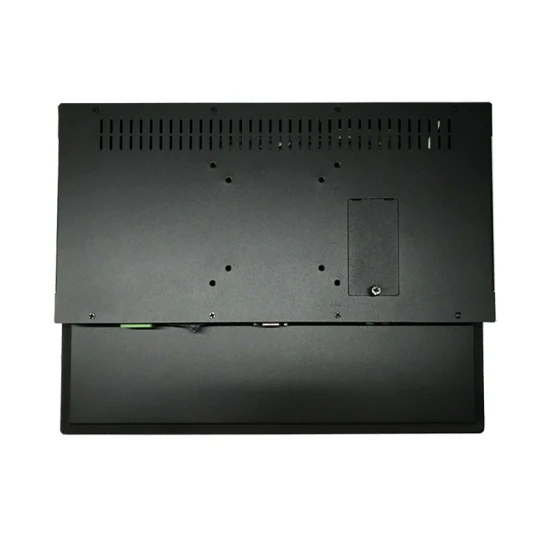

| Mounting Type | Embedded Installation |
| Mechanical dimensions | 355.8 x 287.3 x 62.4 mm |
| Weight (Net) | 7.5 kgs/ piece |
| Drawings | Please contact us for details |
Packaging & Delivery
| Packing details | 1x 15 inch Industrial Touch Panel PC I5;
Packed in 2 pieces/carton with protection foam Optional accessories:1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantage
1.It’s the latest evolution of Mini-ITX form factor industrial Motherboard with Dual GBE Lan .
2. It is based on Intel Celeron 3317U+HM76 chipset.Provide 2 Mini-PCIE and 1 Sim Slot to support Wifi/GPS/3G/
MSATA
3. 1 SODIMM slot,Supports up to 8GB, SATA (1 Sata 3.0, 2x Sata 2.0)and MSATA storage modes.
4. It supports 1080P HD and independent Dual view, 1 HDMI and 1 VGA . Dual Channel 24bit LVDS.
