A 8-inch embedded open frame monitor 4:3 square display is designed for integration into machinery, medical devices, or industrial systems, banking kiosks, etc.
8.0 inch IP65 sealing on the front is one customization option.
– Optional Features: Sunlight-readable enhancements, capacitive touch overlays, or tempered glass for added durability.
– Mounting Flexibility: VESA-compatible for wall/desktop installation or integration into machinery.
| Display Specifications | |
| Display | 8.0″ Color TFT Industrial Monitor |
| Model Name | AXD-08OPIPPC-T3H |
| Active Display Area (mm) | 170.4(H)x127.8(V) |
| Pixel Pitch (mm) | 0.213(H)x0.213(V) |
| Resolution (Pixel) | SVGA (800X600) 262K/16.2M Color |
| Brightness (CD/m^2) | 300cd/m^2;600cd/m^2 |
| Contrast Ratio | 500:1 |
| Viewing Angle (CR >=10) | 150/150 |
| Power consumption | 3.3W typical, normal operation |
| Touch Screen | Resistive;RS232/USB(Optional) |

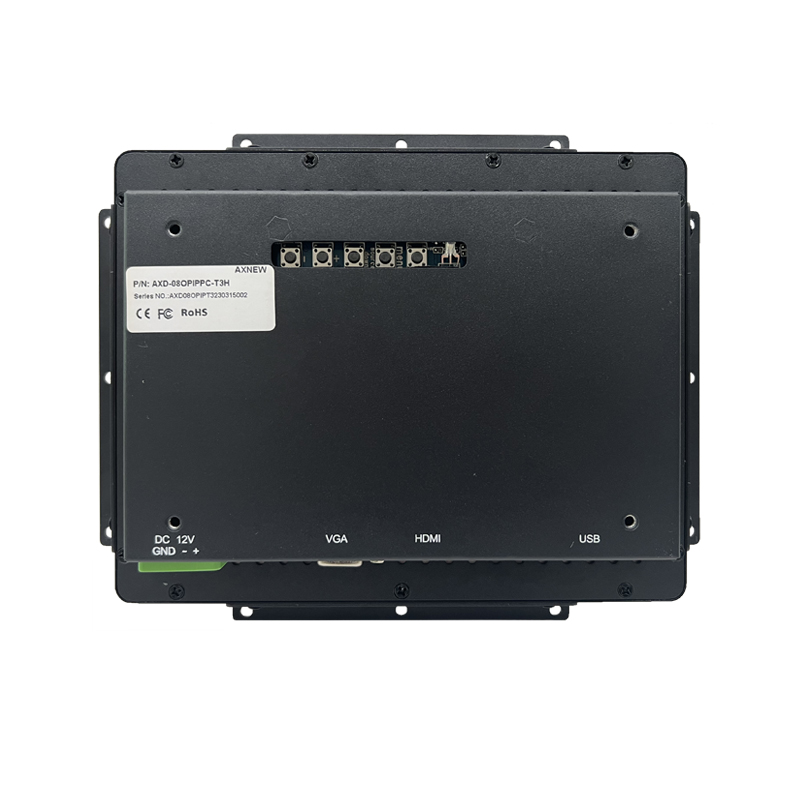

| OSD Control | On the back side |

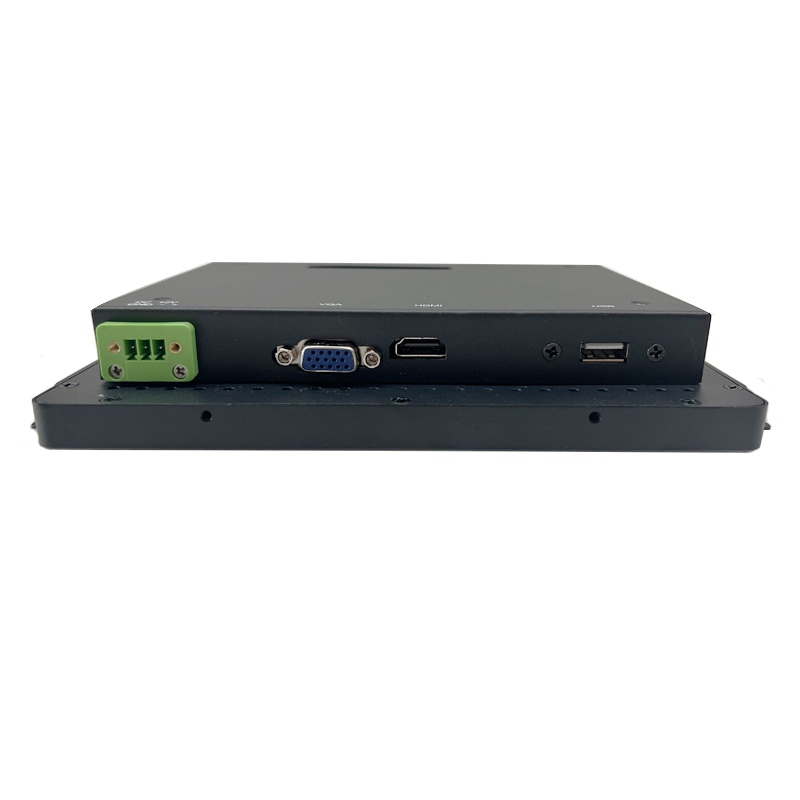

| I/O Connectors | 1x12v,1XVGA,DVI-D(HD1080 Optional) |
| Power Input | DC 12V,@4A 48W |
| Mechanical Specifications | |
| Construction | Aluminum front bezel &Black Color |
| Dimensions | 210.0 x 147.4x 22.0 (mm) |
| Mounting | Embedded ,Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~60ºC |
| Storage Temperature | -20~70ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 8.0″ industrial touch Monitor with VGA input and 3PIN industrial power connector for 12V DC in |
Features and Advantages
1. 600nits with low consumption industrial panels
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. Industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA HD interfaces
6. Project capacitive touch with anti-vandal glass with anti-glare treatment optional.
7. 8.0 inch open frame PCAP touch is new and popular touch technology for outdoor kiosk , outdoor Automatic equipments etc
