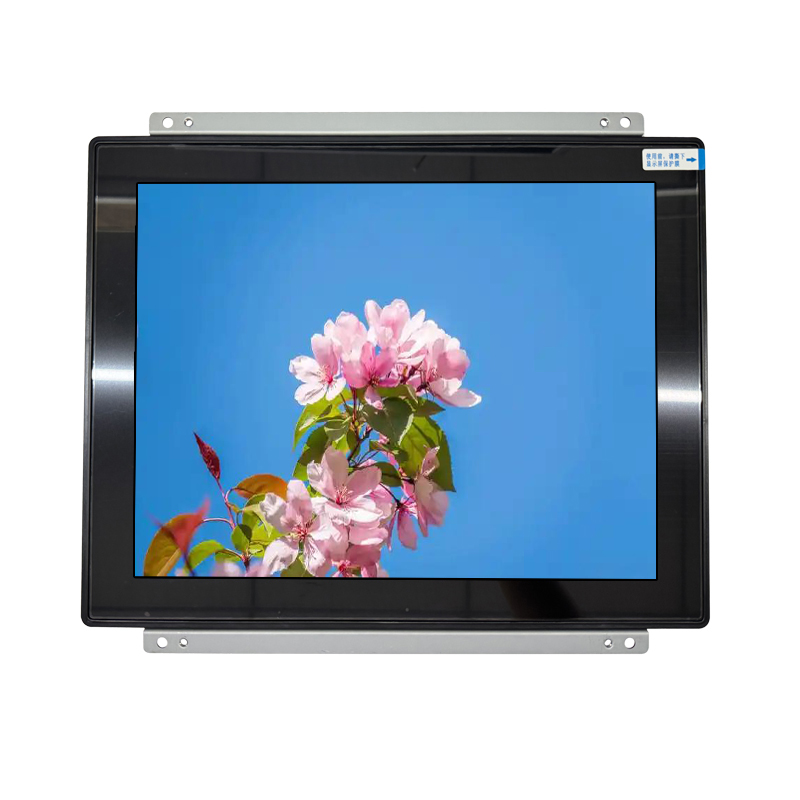

The 12.1-inch display with 600 nits brightness mostly features a resolution of 1024×768. Coupled with its high brightness of 600cd/m², it can present clear images both indoors and outdoors. It boasts a high contrast ratio of approximately 700:1, ensuring vivid colors and distinct layers.
Its front panel meets the NEMA/IP65 waterproof and dustproof standards, capable of resisting water droplets and moisture. The high-strength all-steel cabinet enables it to adapt to harsh industrial environments. It supports multiple signal inputs such as VGA and AV, with some models allowing the addition of a DVI interface. Moreover, it is compatible with mainstream operating systems and is widely used in fields like industrial automation.
Technical Parameter
| Display Specifications | |
| Display | 12″ Color TFT Industrial Open frame Monitor |
| Model Name | AXD-12OPN2P2-VH2T2 |
| Active Display Area (mm) | 246.0 (H) x 184.5 (V) |
| Pixel Pitch (mm) | 0.307 (H) x 0.307 (V) |
| Resolution (Pixel) | 1024×768 |
| Brightness (CD/m^2) | 600 cd/m^2 |
| Contrast Ratio | 700:1 |
| Viewing Angle (CR >=10) | 176/176 |
| Power consumption | 12.3 W typical, normal operation |
| Touch Screen | projected capacitive Touch |

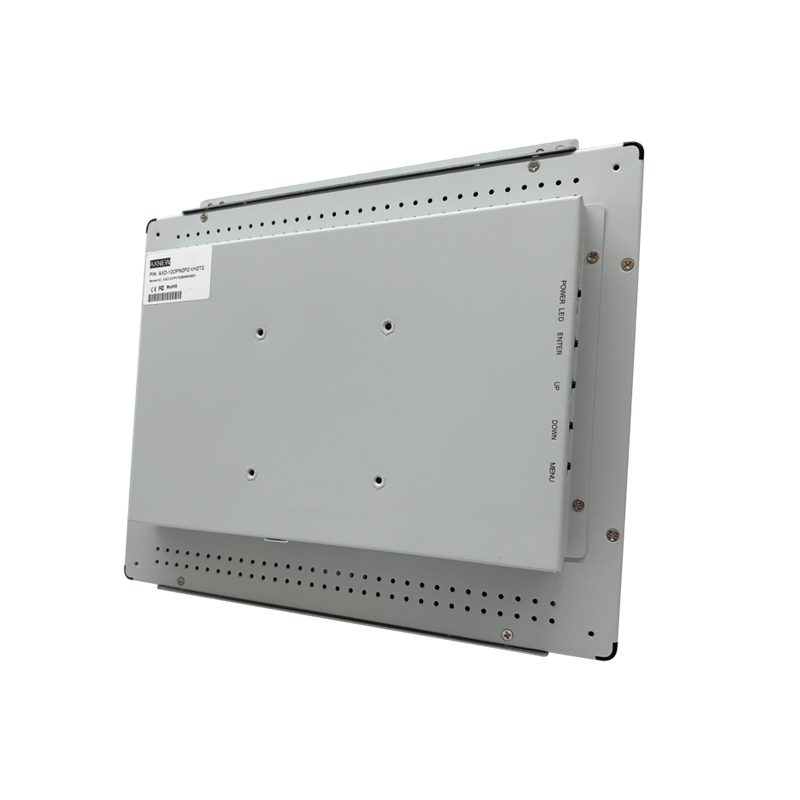

| OSD Control | On the back side |

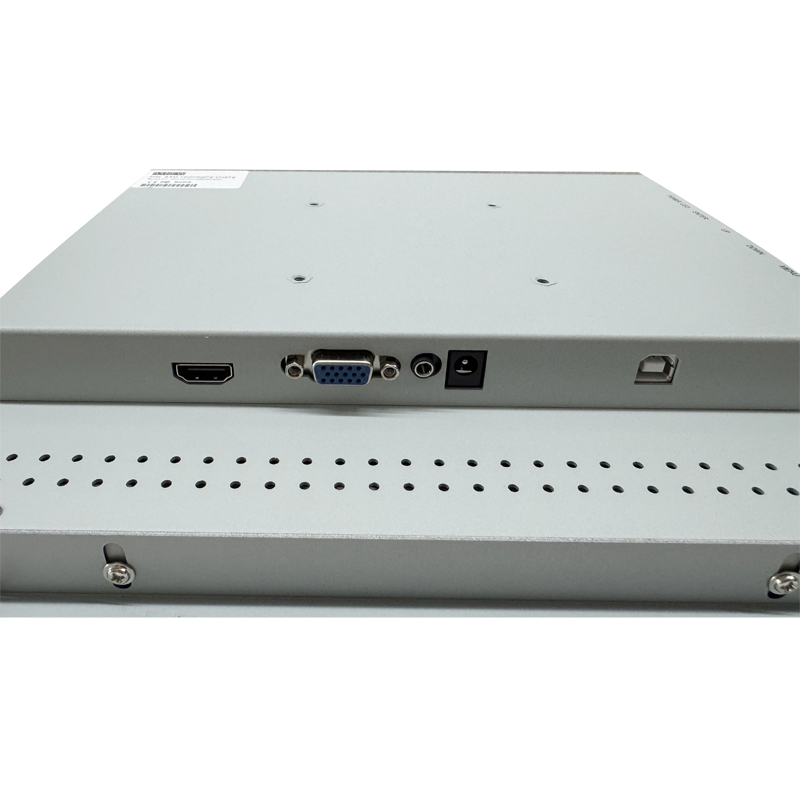

| I/O Connectors | 1x12v,1XVGA,HDM |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 350.1x 264.1x 50.0(mm) |
| Mounting | Up-down, Left-right fixing holes ,VESA 75×75(100×100) Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~85ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 12.1″ Embedded open frame Monitor 600nits with HD VGA input and power adapter |
![600nits 12.1" High Brightness Industrial Capacitive Open Frame Monitor VGA DVI USB Input](http://image.chukouplus.com/upload/C_5693/file/20250811/ce6ce622fabd8b20b6893d7ff92a5462.jpg "600nits 12.1" High Brightness Industrial Capacitive Open Frame Monitor VGA DVI USB Input")
![600nits 12.1" High Brightness Industrial Capacitive Open Frame Monitor VGA DVI USB Input](http://image.chukouplus.com/upload/C_5693/file/20250811/bcf512f93dfa4e3b5d0acee5638793ff.jpg "600nits 12.1" High Brightness Industrial Capacitive Open Frame Monitor VGA DVI USB Input")
