The 21.5-inch 1920X1080 high-brightness resistive display has become an ideal choice for scenarios such as industrial control, commercial self-service, and outdoor display due to its high brightness, durable touch, and environmental adaptability. Its core advantages lie in the visibility under strong light and the stability of resistive touch, making it suitable for application scenarios with high requirements for reliability and operational convenience.
However, it is inferior to capacitive displays in terms of touch accuracy and multi-point interaction. When purchasing, it is necessary to combine the specific usage environment and functional requirements to balance performance and cost.
| Display Specifications | |
| Display | 21.5″ Color TFT High Brightness touch monitor |
| Model Name | AXD-21OPN1P1-VH4 |
| Active Display Area (mm) | 476.64 (H) x 268.11 (V) |
| Pixel Pitch (mm) | 0.2485 (H) x 0.2485 (V) |
| Resolution (Pixel) | 1920X1080 |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 31.71 W typical, normal operation |
| Touch Screen | 5 Wire Resistive with USB |
| OSD Control | On the back side |

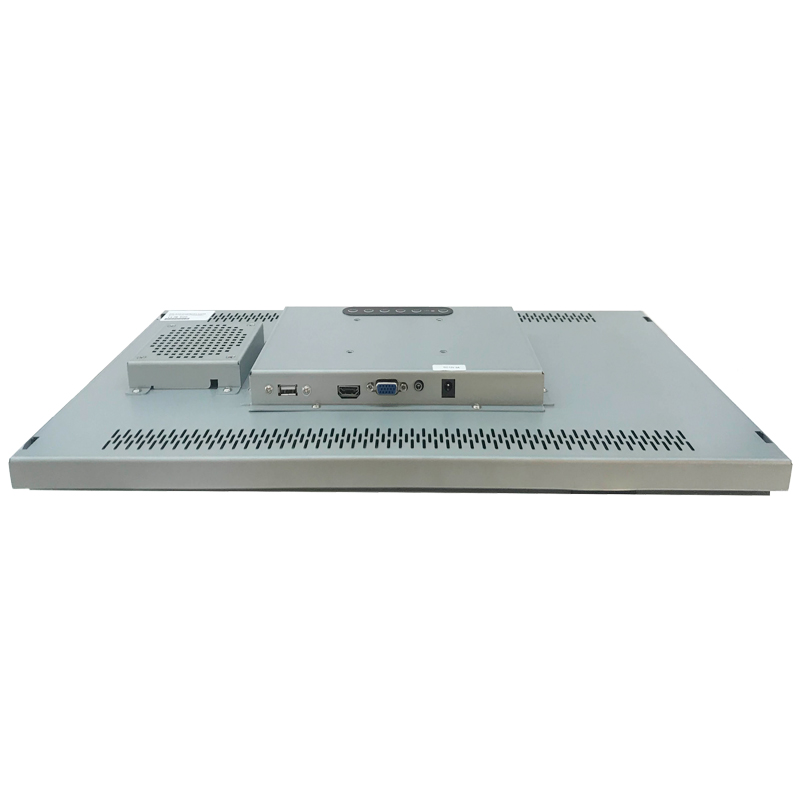

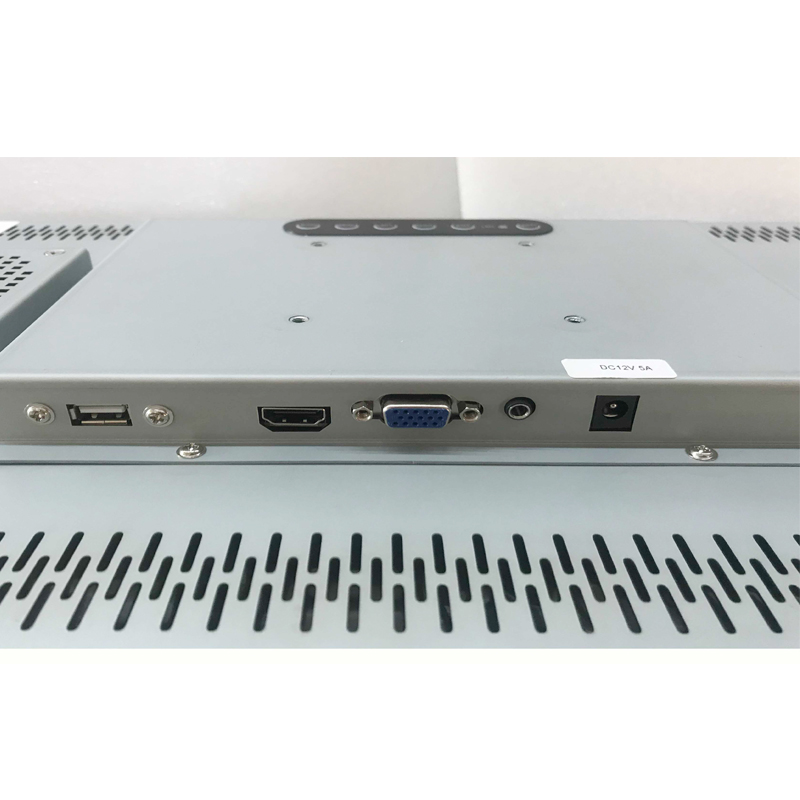

| I/O Connectors | 1x12v,1XVGA,1xDVI, 1xHD |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 528.2x 295.2x 42.0(mm) |
| Mounting | U Left-right fixing holes ,VESA 75×75(100×100) |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -5~50ºC |
| Storage Temperature | -20~60ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 21.5″ Resistive High Brightness touch monitor 1000nits with full HD |
Features and Advantages
1. 21.5” high brightness New and perfect panels with stable supply
2. Industrial control board with wide temperature supports the displays working 24 hours

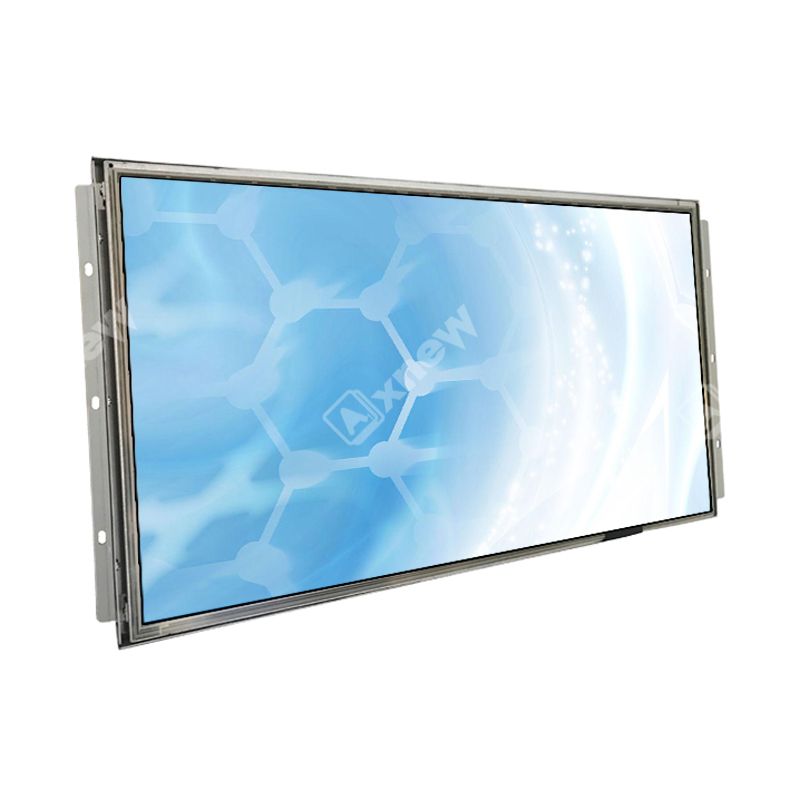

3. Open frame design to protect the LCD screen

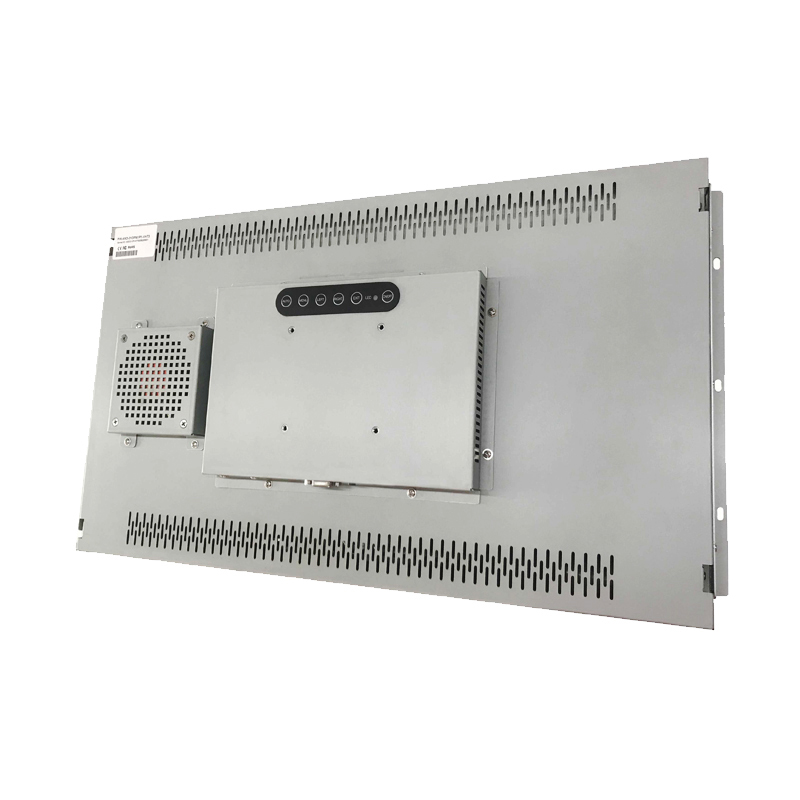

4. Cooling fan on the backside to help heat radiation
5. VGA DVI interfaces ;Resistive touch screen with USB touch
6. 21.5 inch open frame monitor with high brightness 1000nits for outdoor advertising , outdoor player ,campus and industrial terminals etc Features:
- Versatile Connections: This models can be integrated in different boards
- Touch innovations : There are ten-point touch capacitive screen ,Infrared touch and one-point single touch such as resistive touch and SAW touch , can be installed in this model , which is easily way to meet any working environment.
- High Brightness options: The Monitors feature a backlight brightness of 600 cd/m² ,800cd/m2 up to 1500cd/m2 and are avaliable from sizes 7 inch, 10 inch, 12 inch, 14 inch,15 inch, 17 inch, 19 inch standard products. Testing devices are BM-7 devices .
