| Description | Model NO: AXD-32OPN1P2-TH4 A
Screen Size: 32 Inch
Display Resolution(pixel): 1920x1080
Contrast Ratio:3000:1
Brightness (CD/m^2): 700cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc | Model NO: AXD-21OPN1P1-VHIP
Screen Size: 21.5 Inch
Display Resolution(pixel): 1920x1080
Contrast Ratio:1000:1
Brightness (CD/m^2): 1000cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc | Model:AXD-10OPN1P3-T1
Screen Size:10.4
Screen format: 4:3
Display Resolution(pixel):800x600
Contrast Ratio:500:1
Brightness:400cd/m^2
Storage temperature : -30℃~80℃
Input signal: VGA DVI
Power Input: DC 12V
Touch Type: Resistive touch panel
Product status: Stock | Model NO: AXD-10PPC-A2VHC
Screen Size: 10.4 Inch
Display Resolution(pixel): 800x600
Contrast Ratio:500:1
Brightness (CD/m^2): 1000cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc | Model NO: AXD-17PPC-A2 R
Screen Size: 17 Inch
Display Resolution(pixel): 1280x1024
Contrast Ratio:1000:1
Brightness (CD/m^2): 300cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc | Model NO: AXD-10PPC-A2 C
Screen Size: 10 Inch
Display Resolution(pixel): 1280x800
Contrast Ratio:800:1
Brightness (CD/m^2): 350cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc |
| Content |
| Display Specifications |
|
| Display |

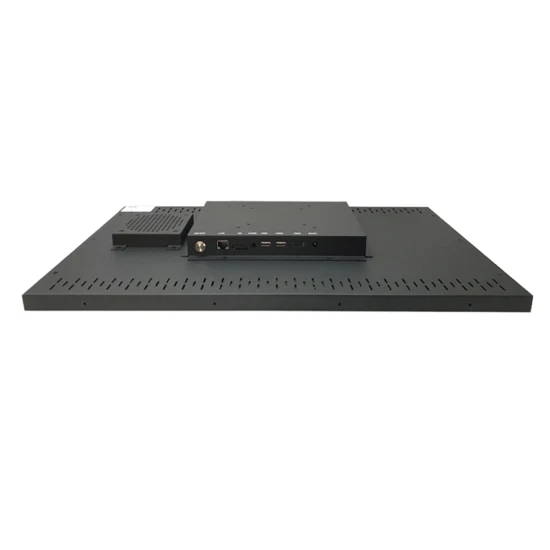

32" Color TFT Android touch monitor |
| Model Name |
AXD-32OPN1P2-TH4 A |
| Active Display Area (mm) |
698.4 (H)x392.85(V) |
| Pixel Pitch (mm) |
0.363(H)x0.363(V) |
| Resolution (Pixel) |
WSXGA (1920X1080) |
| Brightness (CD/m^2) |
700cd/m^2 |
| Contrast Ratio |
3000:1 |
| Viewing Angle (CR >=10) |
178/178 |
| Power consumption |
55 W typical, normal operation |
| Touch Screen |
Resistive RS232/USB(Optional) |
| OSD Control |
On the back side |
| I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input
Touch Screen options
|
220v
IR Touch panel
|
| CPU(Embed Computer Module) |
Quad Core ARM CORTEX-A 9
DDR3: 2G; NAND :8G
Operation System:Android 4.42
|
| Mechanical Specifications |
|
| Construction |
Steel metal housing |
| Dimensions |
811.0x 450.0x 75.2(mm) |
| Mounting |
Embedded ,fixing holes on the |
| Power source |
AC 100~240V/ 12V DC |
| Environment Specifications |
|
| Operating Temperature |
0~60ºC |
| Storage Temperature |
-20~60ºC |
| Rating |
Facilitate installation of the demolition,solid portfolio |
| Ordering Information |
32" Open frame IR touch LCD HD with 1000nits brightness monitors |
Features and Advantages
1. High Resolution with high contract LCD in stable supply
2. industrial control board supports the displays working 24 hours
3. 178/178 wide viewing angle with high performance
4. Integrated solution for touch screen and LCD display; good performance and easy assembling.
5. Interface both for USB and RS232 is available. Andriod O.S 4.42 would be provided.
6. Higher sensitivity and faster response
7. Long durability; 700nits high brightness LCD panels for this industrial monitor grade
8. Multi-options for assembling, including vertical, horizontal support. You may assemble it in VESA standard solution or in your own design.
9.We also provide the service of producing the product in users' own design.
 |
| Panel PC information |
|
| Model Number |
AXD-21OPN1P1-VHIP |
| 21.5'' Industrial Andriod Capacitive Touch panel pc with 1000nits |
| Case/Bezel Color |
Black |
| TFT Type |
New A+ LCD with LED backlight |
| Aspect ratio |
16:9 |
| Useful Screen Area |
476.64 (H)x268.11(V) |
| Touch Panel |
Capacitive Multi touch with EETI chipset (water-proof function) |
| Touch response time |
10ms (typical) |
| Touch glass Treatment for Outdoor |
Anti-glare /anti-reflective treatment on surface |
| LCD panel Pixel pitch |
0.297 x 0.297 mm |
| LCD panel Colors |
16.7million |
| LCD panel Brightness |
1000 cd/m2 |
| LCD panel Response Time |
8 ms |
| Contrast Ratio |
1000:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±89° or 178° total |
| Vertical (up/down) |
89°(up), 89°(down) or 178° total |
| Output Interface |
VGA/HDMI type/ AV/Rs232 Options |
| Input Interface |
USB*3 |
| Net |
Internet LAN |
| Watch Dog Technology |
Support |
| Power Specification |
External AC to DC power brick |
| Monitor input: +12VDC ±5%,5.0 A; DC Jack (2.5) |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz |
| Power dissipation: 44W max |
| ECM (Embed Computer Module) |
RK3288 Max frequency 1.8Ghz;
MAIL-T764 GPU ; ARM Quad CORTEX-A17
DDR3: 2G; NAND :8G
Operation System:Android 5.1.1
|
| Temperature |
Operating: -10°C to 50°C ;Storage -20°C to 60°C |
| Humidity (non condensing) |
Operating: 20%-90%; Storage: 10%-95% |
| Weight (approx.) |
Actual: 7kg ;Shipping: 8kg |
| Dimensions |
| Holes fixings |
Vesa mounting 100x100 |
| Drawings |
Please contact us for details |
 |
| Display Specifications |
|
| Display |
10.4" Color TFT Open Frame LCD with touch monitor |
| Model Name |
AXD-10OPN1P3-T1 |
| Active Display Area (mm) |
211.2 (H)x158.4(V) |
| Pixel Pitch (mm) |
0.264(H)x0.264(V) |
| Resolution (Pixel) |
SVGA (800X600)16.2MColor |
| Brightness (CD/m^2) |
400cd/m^2 |
| Contrast Ratio |
500:1 |
| Viewing Angle (CR >=10) |
160/140 |
| Power consumption |
4.52W typical, normal operation |
| Touch Screen |
Resistive;RS232/USB(Optional) |
| OSD Control |
On the back side |
| I/O Connectors |
1x12v,1XVGA,DVI-D |
| Power Input |
DC 12V,4A48W |
| Mechanical Specifications |
|
| Construction |
rugged open frame with edge fixings |
| Dimensions |
260 x 215x30 (mm) |
| Mounting |
Embedded, edge fixing |
| Power source |
AC 100~240V/ 12V DC |
| Environment Specifications |
|
| Operating Temperature |
-20~70℃ |
| Storage Temperature |
-30~80℃ |
| Rating |
Facilitate installation of the demolition,solid portfolio |
 |
| Panel PC information |
|
| Model Number |
AXD-10PPC-A2 VHC |
| 10.4'' Andriod Touch panel pc |
| Case/Bezel Color |
Black |
| TFT Type |
Industrial LCD with LED backlight |
| Aspect ratio |
4:3 |
| Useful Screen Area |
211.2(H)x158.4(V) |
| Touch Panel |
capacitive touch |
| Touch response time |
10ms (typical |
| LCD panel Pixel pitch |
0.294 x 0.294 mm |
| LCD panel Colors |
262K/16.7 million |
| LCD panel Brightness |
1000 cd/m2 |
| LCD panel Response Time |
25 ms |
| Contrast Ratio |
500:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±70° or 140° total |
| Vertical (up/down) |
65°(up), 65°(down) or 130° total |
| Output Interface |
VGA/HDMI type/ AV/Rs232 Options |
| Input Interface |
USB*3 |
| Net |
Internet LAN |
| Watch Dog Technology |
Support |
| Power Specification |
External AC to DC power brick |
| Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5) |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz |
| Power dissipation: 36W max |
| ECM (Embed Computer Module) |
Quad Core ARM CORTEX-A 9
DDR3: 2G; NAND :8G
Operation System:Android 4.42 |
| Temperature |
Operating: -10°C to 60°C ;Storage -20°C to 60°C |
| Humidity (non condensing) |
Operating: 20%-90%; Storage: 10%-95% |
| Shipping Carton Dimensions |
490 x 440 x340 mm (Five pieces in one ) |
| Weight (approx.) |
Actual: 11kg ;Shipping: 15kg |
| Dimensions |
| Holes fixings |
Vesa mounting 100x100 |
| Mechanical dimensions |
262x 206x53.3 mm |
| Drawings |
Please contact us for details |
 |
| Panel PC information |
|
| Model Number |
AXD-17PPC-A2 R |
| 17'' Andriod Touch panel pc |
| Case/Bezel Color |
Black |
| TFT Type |
Industrial LCD with LED backlight |
| Aspect ratio |
5:4 |
| Useful Screen Area |
337.920(H)x270.336(V) |
| Touch Panel |
5 wire resisitive touch |
| Touch response time |
10ms (typical |
| LCD panel Pixel pitch |
0.297 x 0.297 mm |
| LCD panel Colors |
16.7million |
| LCD panel Brightness |
300cd/m2 |
| LCD panel Response Time |
8 ms |
| Contrast Ratio |
1000:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±85° or 170° total |
| Vertical (up/down) |
80°(up), 80°(down) or 160° total |
| Output Interface |
VGA/H-dmi type/ AV/Rs232 Options |
| Input Interface |
USB*3 |
| Net |
Internet LAN |
| Watch Dog Technology |
Support |
| Power Specification |
External AC to DC power brick |
| Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5) |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz |
| Power dissipation: 36W max |
| ECM (Embed Computer Module) |
Quad Core ARM CORTEX-A 9
DDR3: 2G; NAND :8G
Operation System:Android 4.42 |
| Temperature |
Operating: -10°C to 60°C ;Storage -20°C to 60°C |
| Humidity (non condensing) |
Operating: 20%-90%; Storage: 10%-95% |
| Weight (approx.) |
Actual: 11kg ;Shipping: 15kg |
| Dimensions |
| Holes fixings |
Vesa mounting 100x100 |
| Drawings |
Please contact us for details |
 |
| Panel PC information |
|
| Model Number |
AXD-10PPC-A2 C |
| 10'' Andriod Touch panel pc |
| Case/Bezel Color |
Black |
| TFT Type |
IPS LCD with LED backlight |
| Aspect ratio |
16:10 |
| Useful Screen Area |
220.6 mm x 139.6 mm |
| Touch Panel |
Industrial Resistive Flat Screen |
| Touch response time |
10ms (typical |
| Touch PC Dimensions |
262x 206x53.3 mm |
| Optimal (native) Resolution |
1280 x 800 |
| LCD panel Pixel pitch |
0.1695 x 0.1695 mm |
| LCD panel Colors |
262K/16.7 million |
| LCD panel Brightness |
350 cd/m2 |
| LCD panel Response Time |
25 ms |
| Contrast Ratio |
800:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±85° or 170° total |
| Vertical (up/down) |
85°(up), 85°(down) or 170° total |
| Output Interface |
VGA/HDMI type/ AV/Rs232 Options |
| Input Interface |
USB*3 |
| Net |
Internet LAN |
| Watch Dog Technology |
Support |
| Power Specification |
External AC to DC power brick |
| Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5) |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz |
| Power dissipation: 36W max |
| ECM (Embed Computer Module) |
Quad Core ARM CORTEX-A 9
DDR3: 2G; NAND :8G
Operation System:Android 4.42 |
| Temperature |
Operating: -10°C to 60°C ;Storage -20°C to 60°C |
| Humidity (non condensing) |
Operating: 20%-90%; Storage: 10%-95% |
| Shipping Carton Dimensions |
490 x 440 x340 mm (Five pieces in one ) |
| Weight (approx.) |
Actual: 11kg ;Shipping: 15kg |
| Dimensions |
| Holes fixings |
Vesa mounting 100x100 |
| Mechanical dimensions |
262x 206x53.3 mm |
| Drawings |
Please contact us for details |
 |
