24 inch is one special size with 1920×1080 resolution , 1000nits brightness , which is widely used in some medical devices, military Industrial monitors , gas station ,its rear mounting with open Frame LCD Monitor offers flexible options for TFT LCD Panel, touchscreen, signal interfaces.
Multi-Platform Support: Compatible with Windows, Linux, or Android for HMI (Human-Machine Interface) customization.
| Display Specifications | |
| Display | 24″ high brightness 1000nits lcd monitor |
| Model Name | AXD-24OPN1P1-VH3 |
| Active Display Area (mm) | 531.36 (H) x 298.89 (V) |
| Pixel Pitch (mm) | 0.2767(H) x 0.2767 (V) |
| Resolution (Pixel) | 1920X1080 |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 3000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 58W typical, normal operation |
| Touch screen | Options |
| OSD Control | On the back side |

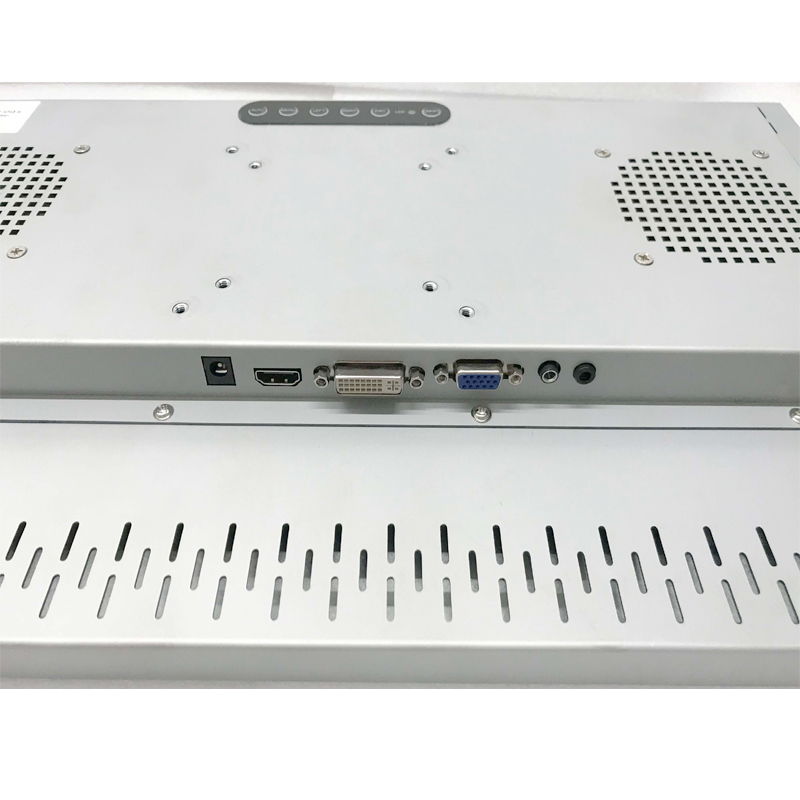

| I/O Connectors | 1x12v,1XVGA,1xHD,1XDVI-D |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 572.7x 353.7x 38.7(mm) |

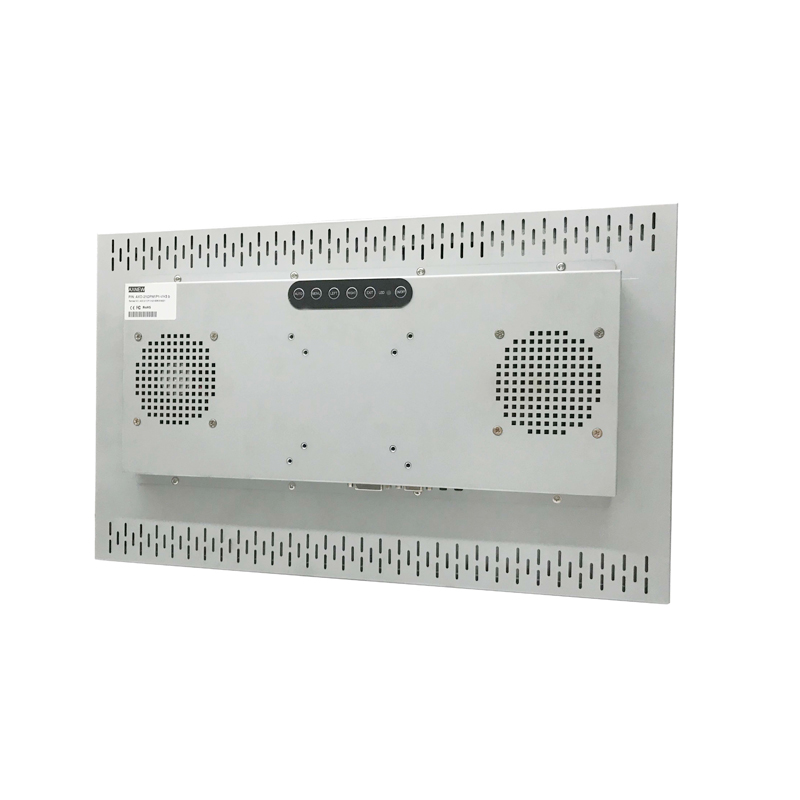

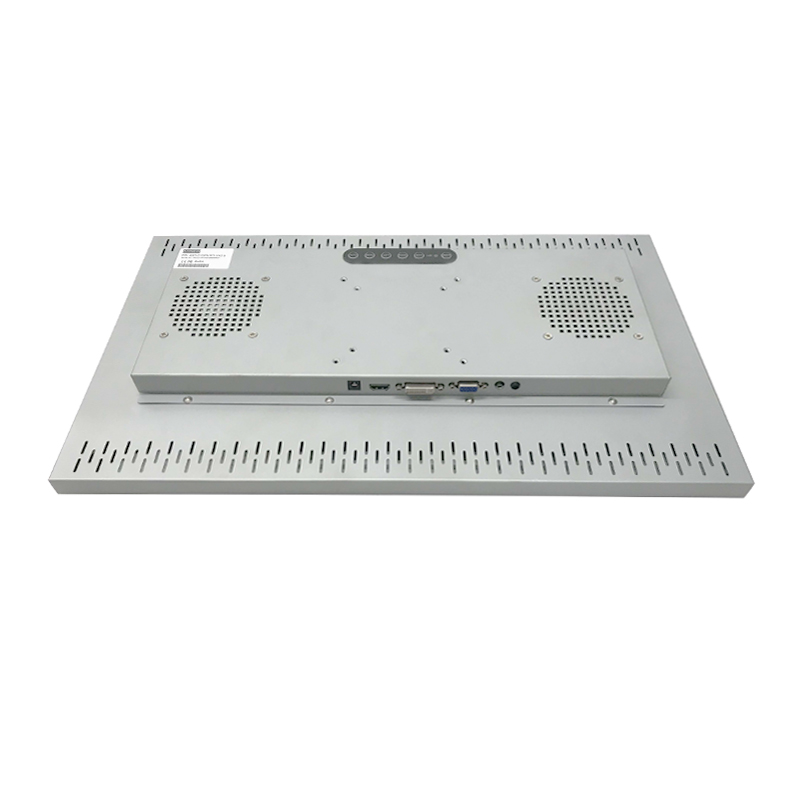

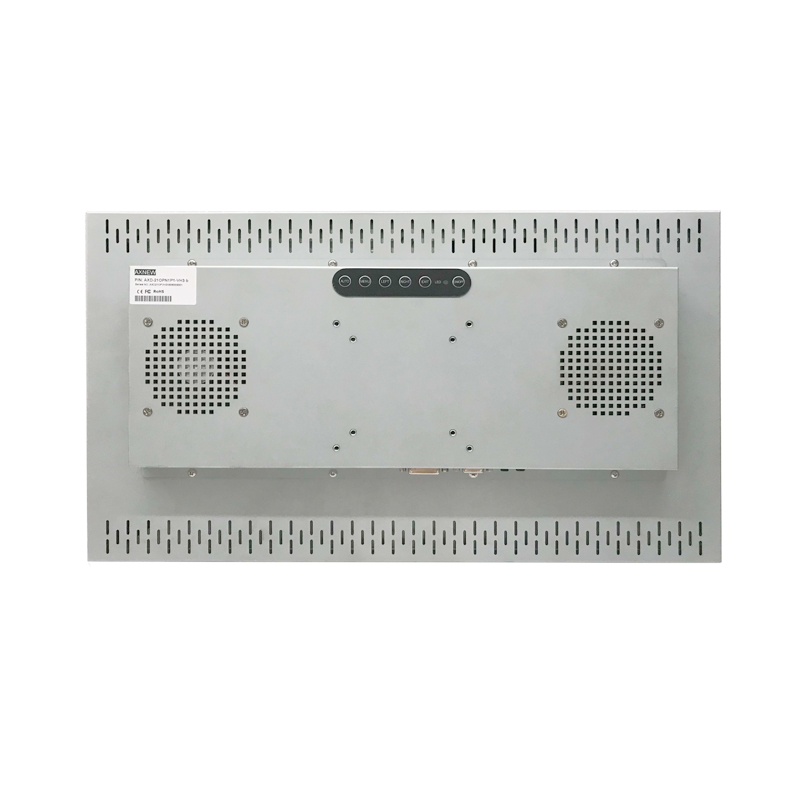

| Mounting | backside fixing holes ,VESA 75×75(100×100) |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | AXD-24OPN1P1-VH3 24” High brightness monitor hdmi |
Features and advantages
– High Brightness: With a brightness of 1000 nits, it can make the screen content clearly visible even in strong light environments, such as direct sunlight outdoors or in bright indoor settings.
– High Resolution: Usually, such monitors can reach a resolution of 1920×1080 or higher, providing a clear and detailed image display. This makes the edges of text and images smoother and shows more details.
– Wide Viewing Angle: It has a wide viewing angle, such as 89° horizontally and vertically. When viewing the screen from various angles, it can maintain good color and brightness consistency.
– Diverse Interfaces: It is equipped with various video input interfaces, such as VGA, DVI – D, HDTV, DisplayPort, and may also have USB interfaces. This makes it convenient to connect to a variety of devices, including computers, gaming consoles, and cameras.
– Flexible Installation: The open – frame design is usually equipped with a flexible mounting bracket that supports VESA – standard 75mm or 100mm mounting holes, facilitating installation on various devices or brackets.
Application Scenarios
– Industrial Control: In factory automation production lines, industrial control systems, and other environments, it can be used to display production data, equipment status, and other information.
The high brightness and wide viewing angle ensure that operators can clearly view the information from different angles and lighting conditions.
– Commercial Display: Such as advertising display screens in shopping malls, self – service kiosks, and self – service ordering machines. The high brightness can attract customers’ attention, and the open – frame design is easy to integrate into various display devices.
– Transportation: It is used in information display screens on buses, subways, and other means of transportation, as well as in train schedule display boards at stations.
It can provide passengers with clear information in complex lighting environments.
– Outdoor Advertising: It is used for outdoor billboards, road sign boards, etc.
It can display clear advertising content or directional information under strong outdoor light, improving the advertising effect and the accuracy of guidance.
