| Display Specifications | |

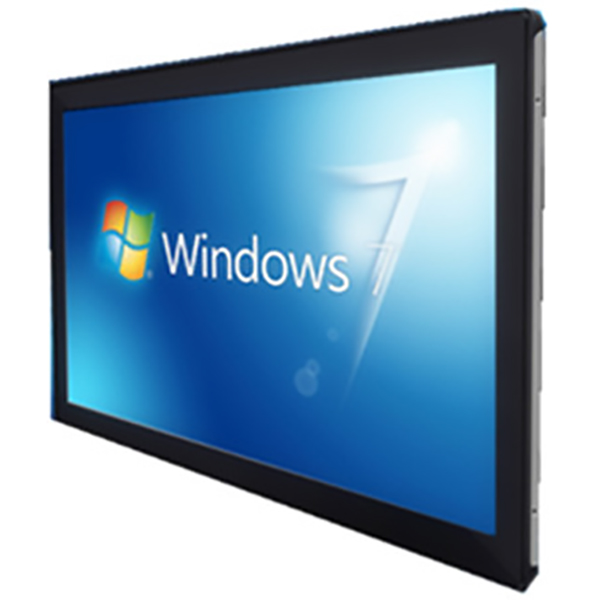

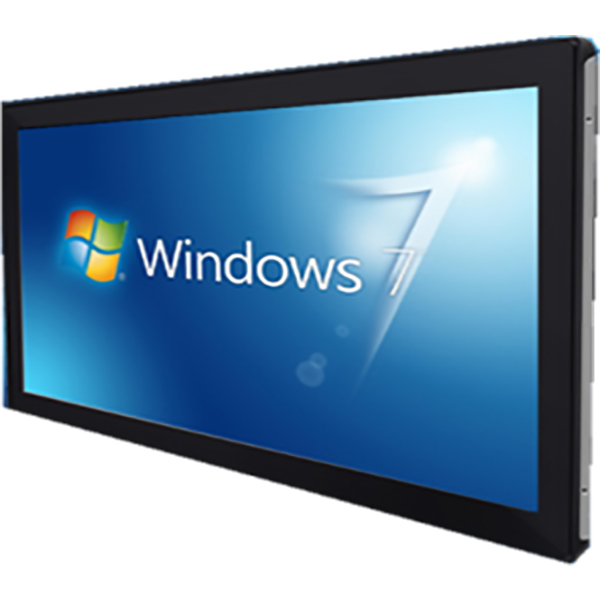

| Display | 23.8″ Color TFT PCAP Open Frame touch Monitor |
| Model Name | AXD-23OPN1P2-V2C T2 |
| Active Display Area (mm) | 527.04(H)x296.46(V) |
| Pixel Pitch (mm) | 0.2652(H)x0.2652(V) |
| Resolution (Pixel) | FHD1920X1080) 16.7 M (8 bit ) |
| Brightness (CD/m^2) | 350cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 25W typical, normal operation |
| Touch Screen | |
| Touch Type. | Projected-capacitive touch ( 4mm in total) |
| Touch Solution | Industrial chipset with G+G Cover glass |
| Touch hardness | >6H |
| I/O Connectors | 1x12v DC Input,1XVGA,HDMI |
| Power Input | DC 12V,5A 48W |
| Mechanical Specifications | |
| Construction | Steel chassis & Black Color |
| Dimensions | 579.7 x 351.2×43.5 (mm) |
| Mounting | Edge locking ,fixing holes embedded |
| Power source | AC 100~240V/ 12V DC-5A |
| Environment Specifications | |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| Rating | Facilitate installation of the demolition, solid portfolio |
Features and Advantages
- 8” FHD with super color high contrast screen with A grade
- Multiple control board with HDMI, VGA, DVI support the displays working 24 hours
- Open frame with flat design with capacitive touch anti-vandal glass to protect the screen from destroy
- Economic solution for some banking devices, payment terminals,etc
Packaging & Delivery
| Packing details | 1x 23.8 inch Industrial Touch Screen Monitor; Packed in 1 piece/carton with protection foam Optional accessories: 1Xhdmi , 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
