| Display Specifications |
|
| Display |

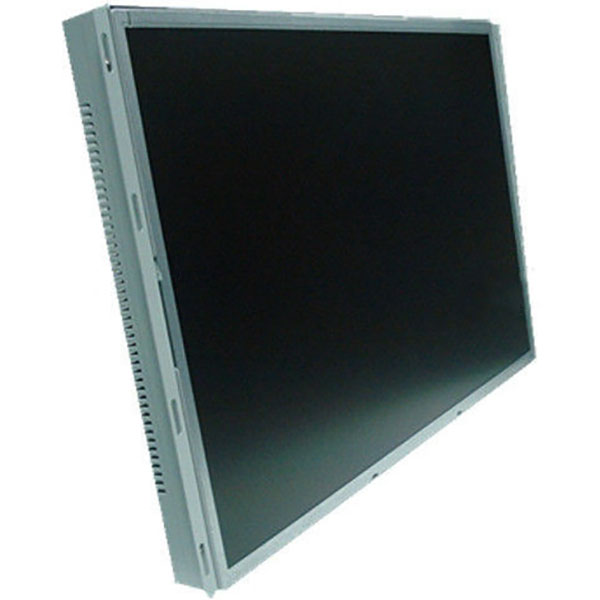

22″ Color TFT Open Frame sunlight readable LCD |
| Model Name |
AXD-22OPHIGH |
| Active Display Area (mm) |
473.37(H)x296.1(V) |
| Pixel Pitch (mm) |
0.282(H)x0.282(V) |
| Resolution (Pixel) |
WSXGA (1680X1050)16.2Mcolors |
| Brightness (CD/m^2) |
1000cd/m^2 |
| Contrast Ratio |
1000:1 |
| Viewing Angle (CR >=10) |
170/160 |
| Power consumption |
28.5 W typical, normal operation |
| Touch Screen |
IR multi-touch screen RS232/USB(Optional) |
| OSD Control |
On the back side |

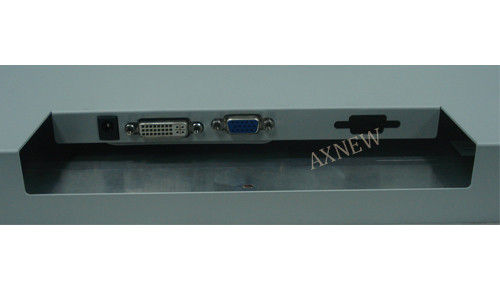

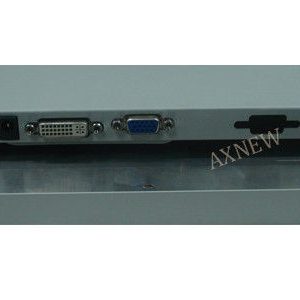

| I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
| Power Input |
DC 12V,4A48W |
| Mechanical Specifications |
|
| Construction |
steel metal / Black or White options |
| Dimensions |
530.1x 325.0x 50.0(mm) |
| Mounting |
Embedded ,vesa 75×75(100×100) Wall Mounting Optional |
| Power source |
AC 100~240V/ 12V DC/AC adapter |
| Environment Specifications |
|
| Operating Temperature |
0~50℃ |
| Storage Temperature |
-20~60℃ |
| Rating |
Facilitate installation of the demolition,solid portfolio |
| Ordering Information |
22.0”OP wide screen high brightness LCD Monitor with VGA input |
