| Display Specifications | |
| Display |

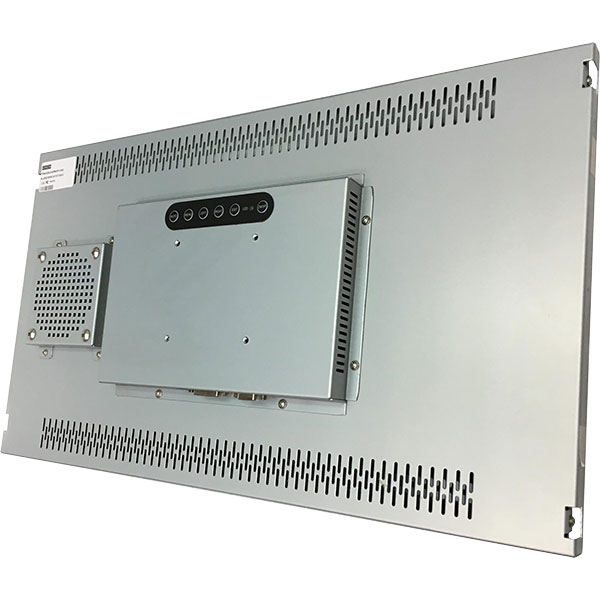

21.5″ Open frame Monitor with IR anti-glare |
| Model Name |
AXD-21OPN1P1-VH3 IR |
| Active Display Area (mm) |
476.64 (H)x268.11(V) |
| Pixel Pitch (mm) |
0.282(H)x0.282(V) |
| Resolution (Pixel) |
WSXGA (1920X1080) |
| Brightness (CD/m^2) |
1000cd/m^2 |
| Contrast Ratio |
1000:1 |
| Viewing Angle (CR >=10) |
89/89/89/89 super wide viewing angle |
| Power consumption |
33.6 W typical, low consumption ,normal operation |
| Touch Screen |
Resistive RS232/USB(Optional) |
| OSD Control |
On the back side |
| I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
| Power Input |
DC 12V,4A48W |
| Mechanical Specifications | |
| Construction |
Steel metal housing |
| Dimensions |
522.0x 294.6x 33.0(mm) |
| Mounting |
Embedded ,fixing holes on the edging frame |
| Power source |
AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature |
0~50℃ |
| Storage Temperature |
0~60℃ |
| Rating |
Facilitate installation of the demolition,solid portfolio |
| Ordering Information |
21.5” 1000nits Open frame FHD IPS Technology with IR touch anti-glare treatment |
