| Panel PC information | |
| Model Number | AXD-10PPC-V4N |

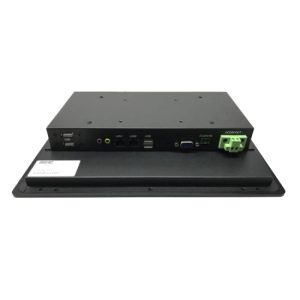

| 10.4” Industrial touch panel pc | |
| Case/Bezel Color | Black |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 4:3 |
| Touch Panel | 5 wire resistive touch panel |
| Touch response time | 8ms (typical) |
| Optimal (native) Resolution | 1024×768 |
| LCD panel Pixel pitch | 0.264 x 0.264 mm |
| LCD panel Colors | 16.2 million |
| LCD panel Brightness | 350 cd/m2 |
| LCD panel Response Time | 8ms |
| Contrast Ratio | 600:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±70° or 140° total |
| Vertical (up/down) | 60°(up), 70°(down) or 130° total |
| CPU | Intel Dual core onboard Atom D2550
Processor; DDR3 800MHz SDRAM |
| storage | 32G/ 64G SSD |
| Serial Ports | 2x COM ports could be installed if needed. |
| USB Ports | 4x USB external ports ; 6 six USB internal ports |
| LAN | 2x LAN RJ-45 connector |
| Net | 1 x Realtek RTL8111C Gigabit Ethernet controller |
| DC Power In | 1 x DC 3pin connector for 24V |
| DC Power out | 1x DC Phoniex connector for 24 V out |
| Video Port | 1 x HDMI |
| Watch Dog Timer | 1~255 levels reset |
| Internal Sockets & Connectors | 1 x Compact Flash socket (reserved for OEM project) |
| Power Specification | DC 12-24V |
| Working Environment | |
| Temperature | Operating: -20°C to 60°C ;Storage -30°C to 70°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Shock | Operating 16G, 11ms & Non-operating 4G, 20ms (with |
| Dimensions | |
| Mounting Type | Embedded Installation |
| Weight (Net) | 5.0 kgs/ piece |
| Drawings | Please contact us for details |
Features and Advantages
1. Fanless passive cooled mainboard ATOM D2550 with low consumption
2, 4G RAM, 64G SSD for memory
3. 5 wire resistive touchscreen makes the touch sense exactly
4. Mounting holes on base bottom for tabletop security; VESA mounting on the backside
5. 10.4”industrial Touch pc hardware for industrial terminals, Automatic applications, KIOSKs etc.
6. Could be DC24V in and out , 2xRJ45
7. firm and no holes mechanial design to protect the dust and drops.
