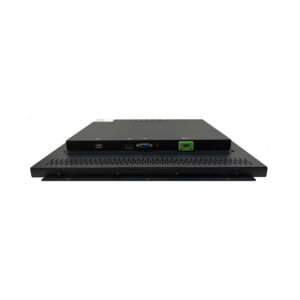

17 inch 5:4 1280×1024 high brightness monitor with 5 resistive touch screen panel
| Display Specifications | |
| Display | 17″ Color TFT Open Frame Resistive Monitor |
| Model Name | AXD-17OPN1P3-HT4 T1 |
| Active Display Area (mm) | 337.92(H)x270.33(V) |
| Pixel Pitch (mm) | 0.297(H)x0.297(V) |
| Resolution (Pixel) | SXGA (1280X1024) 16.7M Color |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 28.8W typical, normal operation |
| Touch Panel Specification | |
| Touch type | 5 wire industrial resistive touch ; USB port |
| Touch Solution | Industrial chipset with single touch |
| Touch Thickness | 2mm |
| Touch glass | Anti-glare treatment (chemical etching) |
| Light Transmission | 85%-88% |
| Mechanical Specifications | |
| Construction | Steel Metal chassis & Black Color |
| Dimensions | as per drawings |
| Mounting | embedded, vesa mounting |
| Power source | AC 100~240V/ 12V DC industrial plug |
| Environment Specifications | |
| Operating Temperature | -30~80℃ |
| Storage Temperature | -30~85℃ |
| Rating | Facilitate installation of the demolition,solid portfolio |
Features and Advantages
- 17 ” Industrial Grade with super long use led backlight over 50,000 Hours.
- Industrial control board with wide temperature supports the displays working 24 hoursx7 days
- VGA, DVI-D / HDMI connectors ;
- Low consumption with wide temperature operation
- Anti-vandal and anti-glare glass for resistive touch
- Alternative power connector for special project
Packaging & Delivery
| Packing details | 1x 17inch Industrial Touch Screen Monitor;
Optional accessories: 1Xhdmi , 1x Power supply cable, 1x power Adapter Packed in 2 pieces/carton with protection foam; 14kgs/ carton |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
