| Display Specifications | |

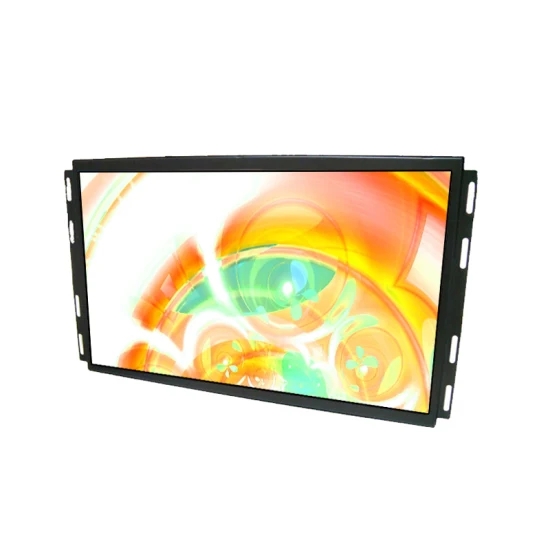

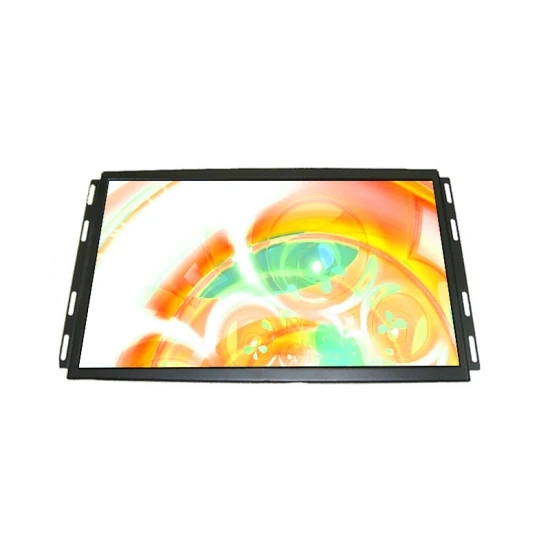

| Display | 21.5″ Color TFT Capacitive touch monitor |
| Model Name | AXD-21OPN1P1-T2 |
| Active Display Area (mm) | 476.64(H)x268.11(V) |
| Pixel Pitch (mm) | 0.24825(H)x0.24825(V) |
| Resolution (Pixel) | 1920×1080;16.7M colors |
| Brightness (CD/m^2) | 250cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 178/178 super viewing angle |
| Power consumption | 23.5 W typical, normal operation |
| Touch Screen | |
| Type | capacitive multi-touch screen with10 points touch |
| Construction | G+G glass layer, 3mm anti-vandal protective glass |
| Touch Controller | EETI 3189 chipset ( industrial grade) |
| Use life | ≥ 50,000,000 |

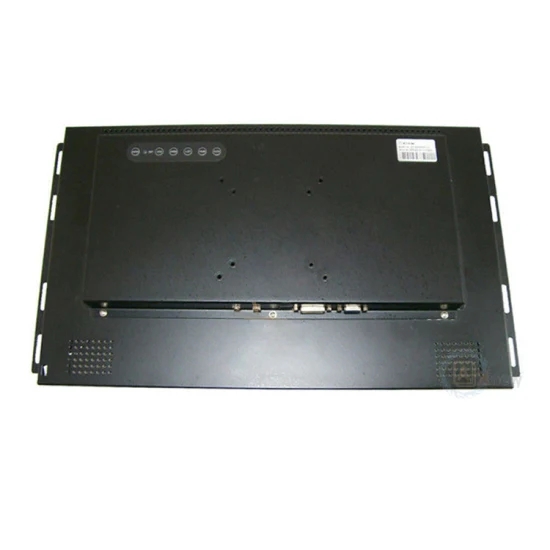

| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,HDMI |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | steel metal / Black or White options |
| Dimensions | Drawings |
| Mounting | Embedded ,vesa 75×75(100×100) Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC/AC adapter |
| Environment Specifications | |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Technology optional | Touch and LCD full bonding without air , anti-dust |
| Ordering Information | 21.5″ wide screen multi- touch Monitor with HDMI input |
Packaging & Delivery
| Packing details | 1x 22 inch Multi-Touch LCD Monitor; Packed in 2 pieces/carton with protection foam Optional accessories: 1xHDMI , 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
