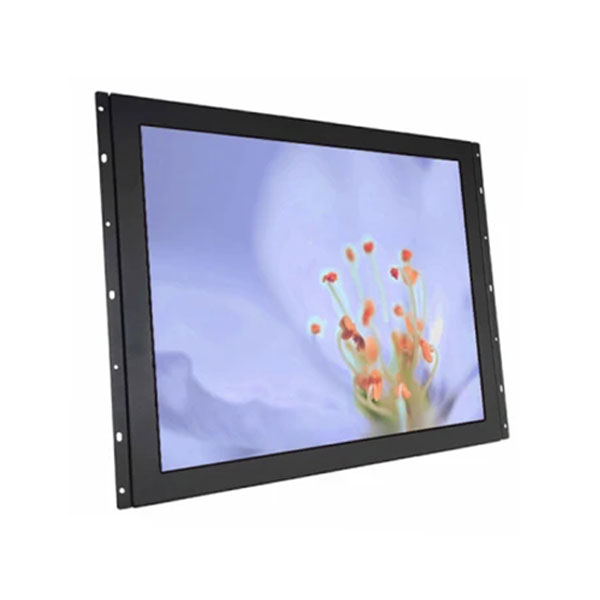

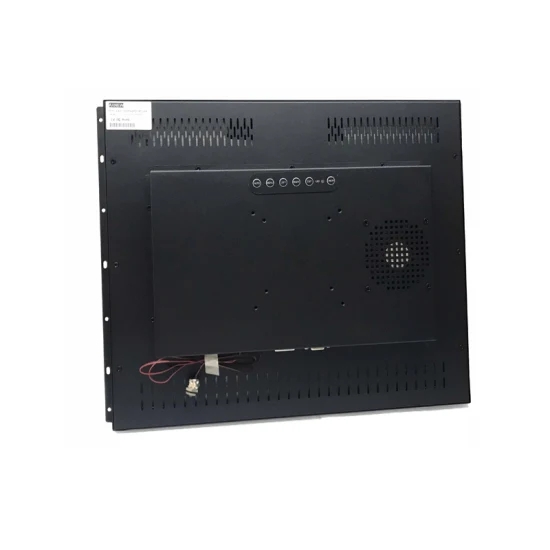

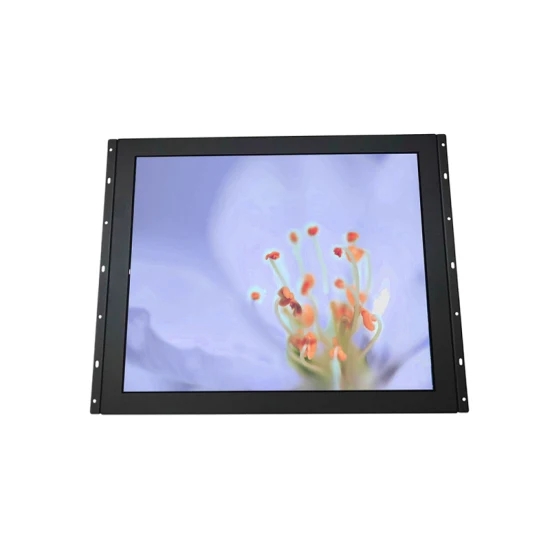

1280X1024 Sxga Industrial Capacitive Sunlight Readable LCD Monitor with 1200nits

Brand :

Model NO: AXD-19OPN2P2-ID2

Screen Size: 19 Inch

Display Resolution(pixel): 1280×1024

Contrast Ratio: 1000:1

Brightness (CD/m^2): 1200cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Display Specifications
Display 19″ Color TFT Sunlight Readable industrial capacitive touch Monitor
Model Name AXD-19OPN2P2-ID2
Active Display Area (mm) 376.3 (H)x301.1(V)
Pixel Pitch (mm) 0.294(H)x0.294(V)
Resolution (Pixel) SXGA (1280X1024) 16.2 M (6 bit + FRC)
Brightness (CD/m^2) 1200cd/m^2; could be dimmable
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 170/160
Power consumption 39.5W typical, normal operation
Touch Screen Projected-capacitive touch with 6mm anti-vandal glass
Touch Screen feature G+G 6mm anti-vandal glass with special anti-glare treatment
OSD Control On the back side

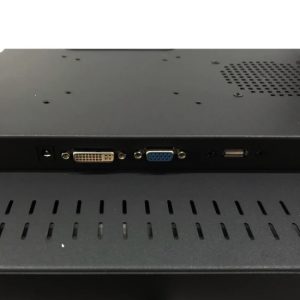

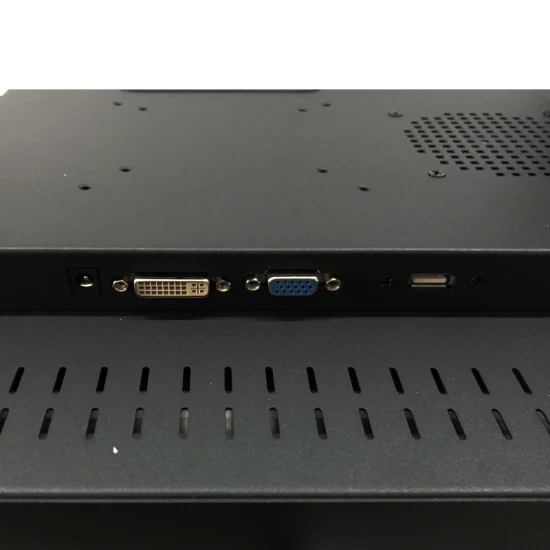

I/O Connectors 1x12v DC Input,1XVGA,DVI-D
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel chassis & Black Color
Dimensions 432.0 x 339.0×49.8 (mm)
Mounting Edge locking ,fixing holes embedded
Power source AC 100~240V/ 12V DC-5A
Environment Specifications
Operating Temperature -20~70ºC
Storage Temperature -30~80ºC
Rating Facilitate installation of the demolition, solid portfolio



Packaging & Delivery

Packing details 1x 19 inch Sunlight Readable LCD display;Packed in 2 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms 7- working days for stock products after receiving payments; 15 working days for order production



  Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;Capacitive Touch screen with anti-vandal anti-glare treatment to protect the LCD from sunshine
6. 19 inch high brightness open frame touch monitor for application control , advertising player ,campus and industrial terminals etc
