| Panel PC information | |
| Model Number | AXD-12PPC-A2 R |

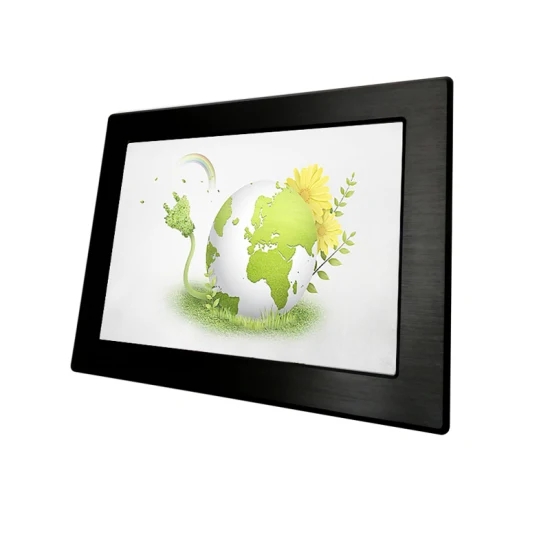

| 12.1’’ Andriod Touch panel pc | |
| Case/Bezel Color | Black |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 4:3 |
| Useful Screen Area | 211.2(H)x158.4(V) |
| Touch Panel | 5 wire resisitive touch |
| Touch response time | 10ms (typical |
| LCD panel Pixel pitch | 0.294 x 0.294 mm |
| LCD panel Colors | 262K/16.7 million |
| LCD panel Brightness | 500 cd/m2 |
| LCD panel Response Time | 25 ms |
| Contrast Ratio | 500:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±70° or 140° total |
| Vertical (up/down) | 65°(up), 65°(down) or 130° total |
| Output Interface | VGA/HDMI type/ AV/Rs232 Options |
| Input Interface | USB*3 |
| Net | Internet LAN |
| Watch Dog Technology | Support |
| Power Specification | External AC to DC power brick |
| Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5) | |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | |
| Power dissipation: 36W max | |
| ECM (Embed Computer Module) | Quad Core ARM CORTEX-A 9 DDR3: 2G; NAND :8G Operation System:Android 4.42 |
| Temperature | Operating: -10°C to 60°C ;Storage -20°C to 60°C |
| Humidity (non condensing) | Operating: 20%-90%; Storage: 10%-95% |
| Shipping Carton Dimensions | 490 x 440 x340 mm (Five pieces in one ) |
| Weight (approx.) | Actual: 11kg ;Shipping: 15kg |
| Dimensions | |

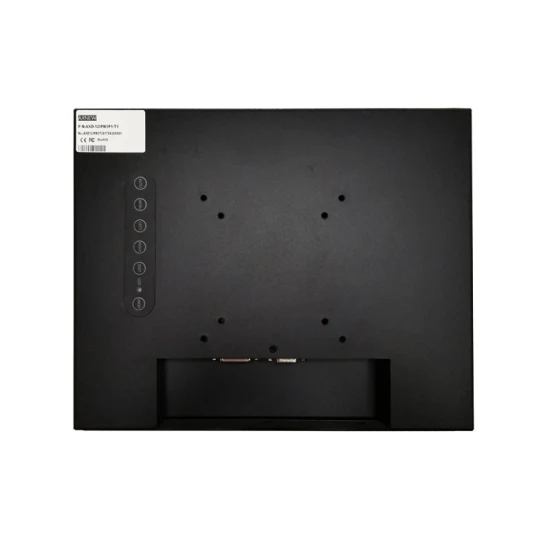

| Holes fixings | Vesa mounting 100×100 |
| Mechanical dimensions | 262x 206×53.3 mm |
| Drawings | Please contact us for details |
