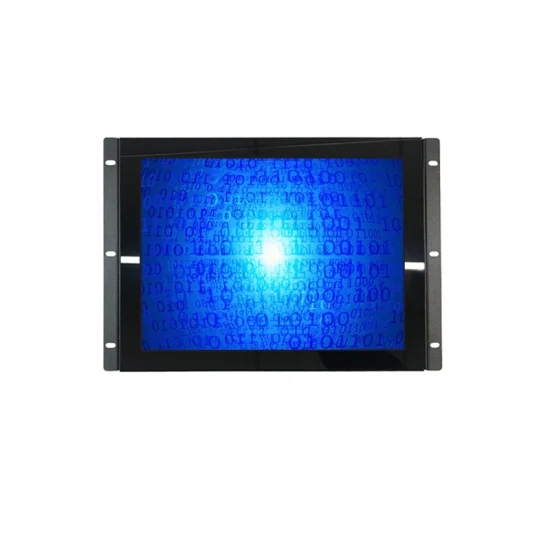

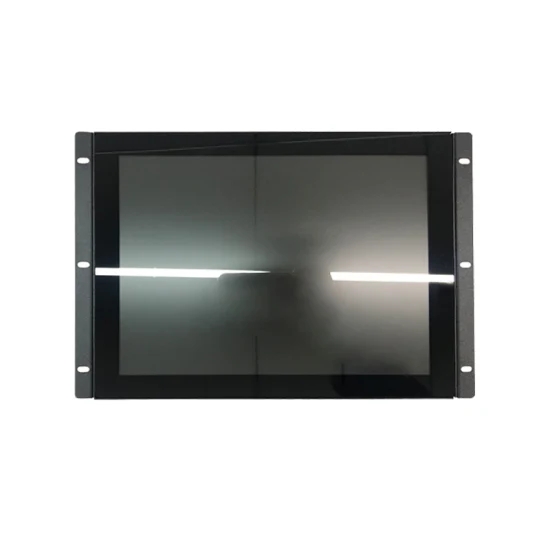

10 Inch Open Frame Custom Monitor 1024X768 Display with Projected Capacitive

Brand :

Model NO: AXD-10OPN3P1-T2C

Screen Size: 10.4 Inch

Display Resolution(pixel): 1024×768

Contrast Ratio: 800:1

Brightness (CD/m^2): 400cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Display Specifications
Display 10.4″ industrial open frame monitor
Model Name AXD-10OPN3P1-T2C
Active Display Area (mm) 211.2(H)x158.4(V)
Pixel Pitch (mm) 0.264(H)x0.264(V)
Resolution (Pixel) VGA (1024X768) 16.7M
Brightness (CD/m^2) 400cd/m^2
Contrast Ratio 800:1
Viewing Angle (CR >=10) 178/178
Power consumption 12.8W typical, normal operation
Touch Screen Resistive touch ;open frame , please request if needed

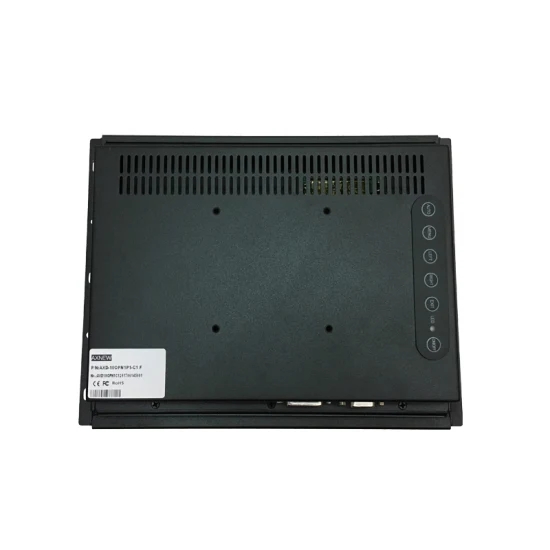

OSD Control On the back side, menu, right, left, on/off, Auto, exit button
I/O Connectors 1x12v,1XVGA,DVI-D
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel open frame & black Color
Dimensions Subject to the updated drawings
Mounting Edge fixing holes, Vesa Mounting
Power source AC 100~240V/ 12V 4A AC/DC adapter
Environment Specifications
Operating Temperature -20~80ºC
Storage Temperature -30~85ºC
Rating Facilitate installation of the demolition,solid portfolio



Features and Advantages
1. New and Industrial A grade perfect panels with 1024×768 high resolution IPS technology
2. industrial control board supports the displays working 24×7 days
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. Open frame with resistive design to protect the LCD screen
5. VGA DVI interfaces ; capacitive touch with USB interface
6. 10.4 inch open frame resistive touch LCD for application control industrial terminals, Financial devices etc
