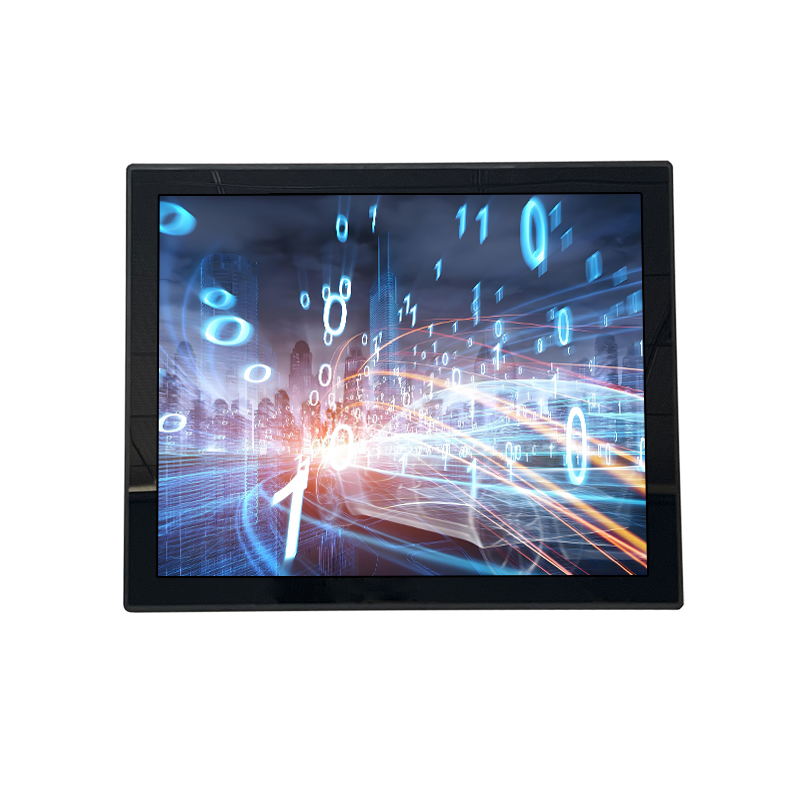

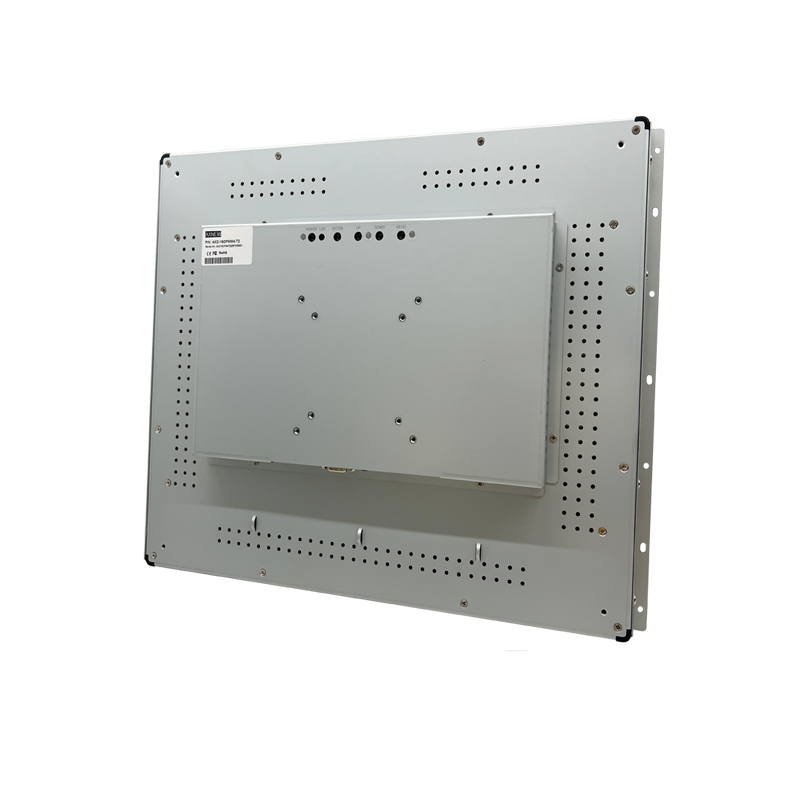

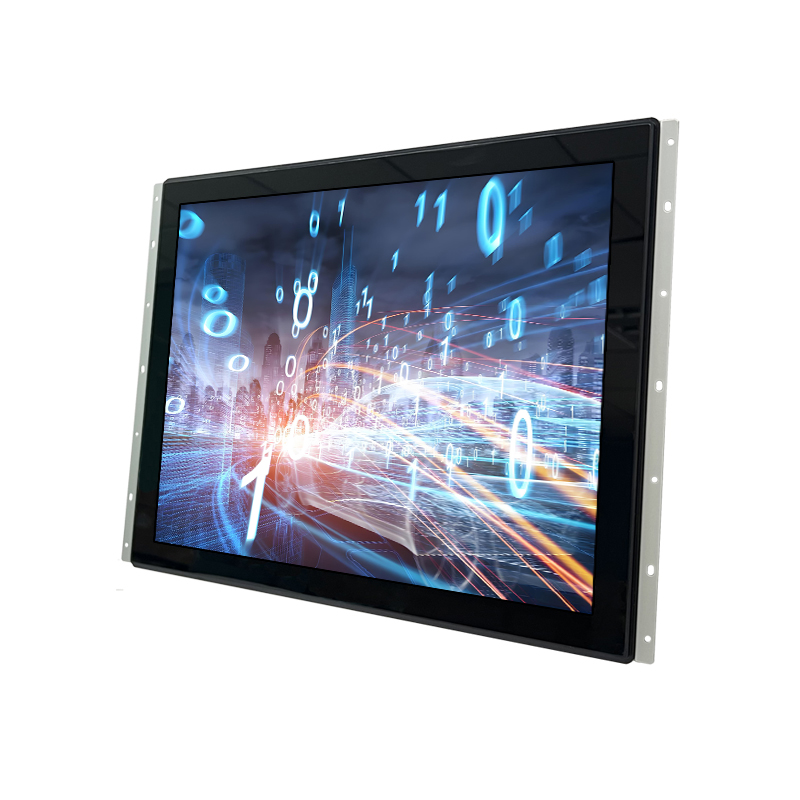

AXD-19OPPM4-T2 is 19” Open Frame monitor with 300Nits brightness, optional with multi capacitive touch screen with IP65 front bezel design . Its long use life with wide temperature will ensure your machines’ high performance and high touch accuracy in the sun.
| Display Specifications | |
| Display | 19″ Color TFT IP65 Open Frame touch Monitor |
| Model Name | AXD-19OPPM1-T2 |
| Active Display Area (mm) | 376.3 (H)x301.1(V) |
| Pixel Pitch (mm) | 0.297(H)x0.297(V) |
| Resolution (Pixel) | SXGA (1280X1024) 16.2 M (6 bit + FRC) |
| Brightness (CD/m^2) | 300cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 19.5W typical, normal operation |
| Touch Screen | |
| Touch Type. | Projected-capacitive touch |
| Touch Solution | Industrial chipset with G+G Cover glass |
| Touch hardness | >6H |

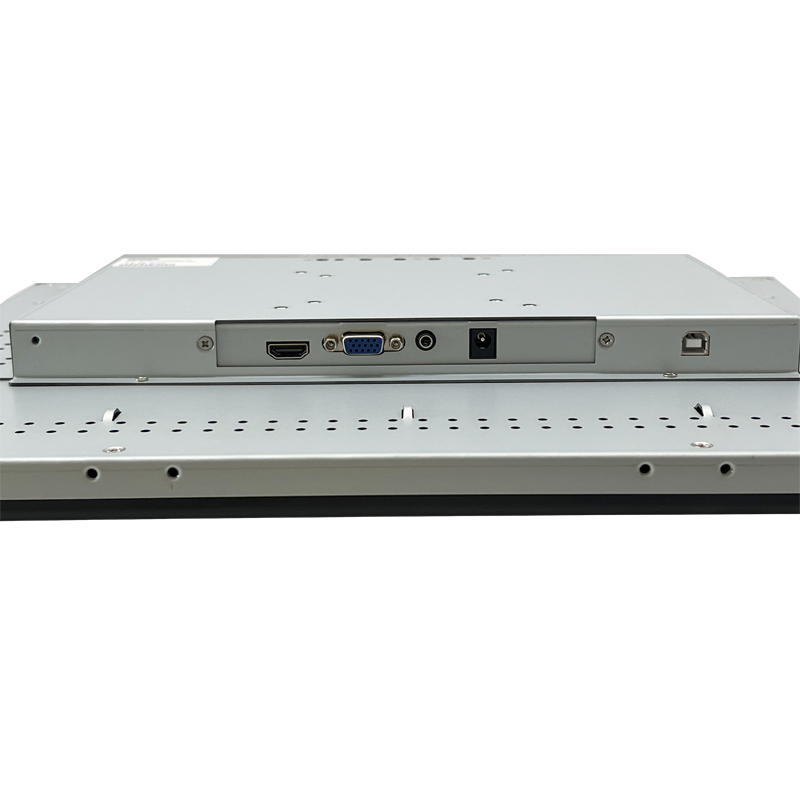

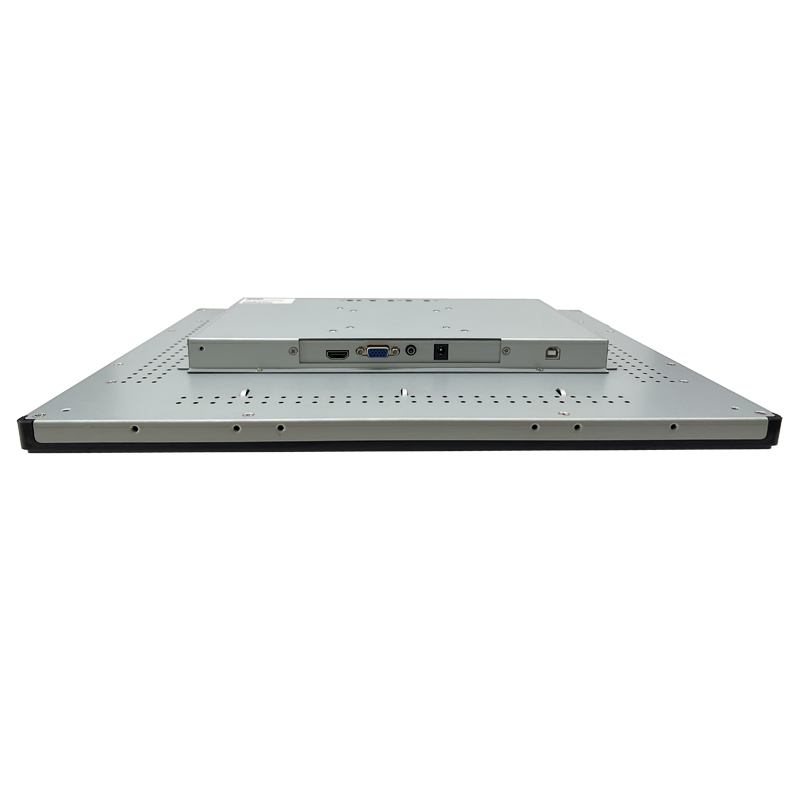

| I/O Connectors | 1x12v DC Input,1XVGA,HDMI |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel chassis & Black Color |
| Dimensions | 432.0 x 339.0×49.8 (mm) |
| Mounting | Edge locking ,fixing holes embedded |
| Power source | AC 100~240V/ 12V DC-5A |
| Environment Specifications | |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| Rating | Facilitate installation of the demolition, solid portfolio |
Features and Advantages
- 19 ” 1280X1024 with super color high contrast screen with A grade
- Multiple control board with wide temperature supports the displays working 24 hours x7 days
- Open frame with IP65 design with capacitive touch sealing to protect the screen from water and rainy
- VGA, DVI-D / HDI connectors ; Projected-capacitive touch screen
- Economic solution for some indoor application with harsh environment
Packaging & Delivery
| Packing details | 1x 19 inch Industrial Touch Screen Monitor; Packed in 2 pieces/carton with protection foam Optional accessories: 1Xhdmi , 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
