Widescreen 1000nits 21.5″ 1920X1080 Open Frame Industrial LCD Monitor

Model NO.:AXD-12OPN1P2-VH2T2 (VGA/DVI)

Screen Size : 12.1″

Aspect Ratio: 4:3

Brightness: 1200nits

Resolution: 1024X768

Screen Type: Capacitive,Resistive Touch

Categories: High Brightness Monitor, Open Frame Monitor

Description

Display Specifications
Display	21.5″ Color TFT High Brightness LCD monitor
Model Name	AXD-21OPN1P1-VH5
Active Display Area (mm)	476.64 (H) x 268.11 (V)
Pixel Pitch (mm)	0.2485 (H) x 0.2485 (V)
Resolution (Pixel)	1920X1080
Brightness (CD/m^2)	1000cd/m^2
Contrast Ratio	1000:1
Viewing Angle (CR >=10)	178/178
Power consumption	31.71 W typical, normal operation
Touch Screen	No touch
OSD Control	On the back side

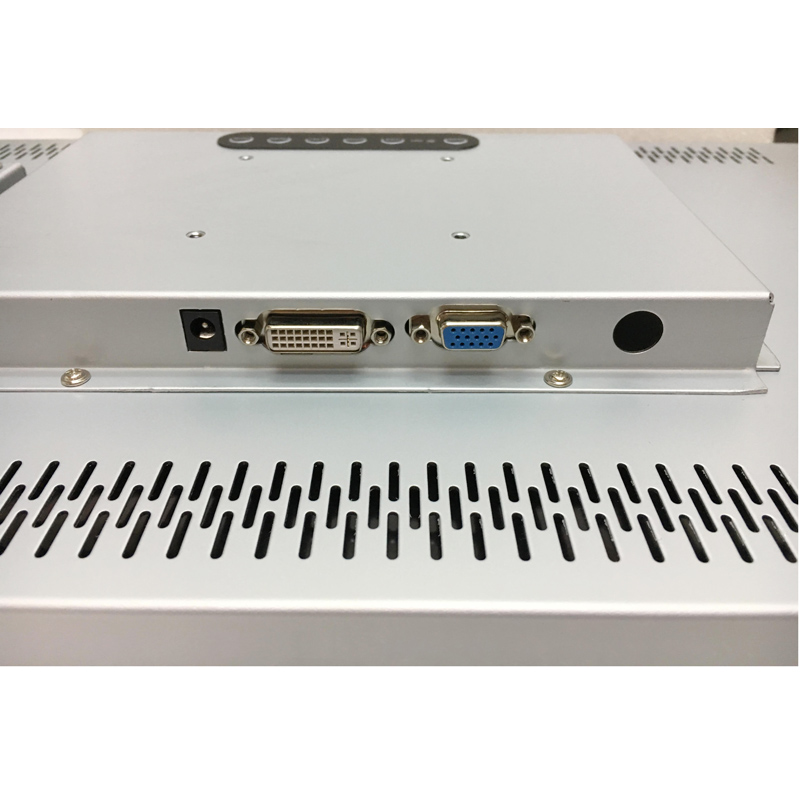

I/O Connectors	1x12v,1XVGA,1xDVI, 1xHD
Power Input	AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction	Roasted Metal Frame
Dimensions	528.2x 295.2x 42.0(mm)
Mounting	U Left-right fixing holes ,VESA 75×75(100×100)
Power source	AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature	-5~50ºC
Storage Temperature	-20~60ºC
Rating	Facilitate installation of the demolition, solid portfolio
Ordering Information	21.5″ Resistive High Brightness touch monitor 1000nits with full HD

Features and Advantages

1. 21.5” high brightness New and perfect panels with stable supply
2. Industrial control board with wide temperature supports the displays working 24 hours
3. Open frame design to protect the LCD screen

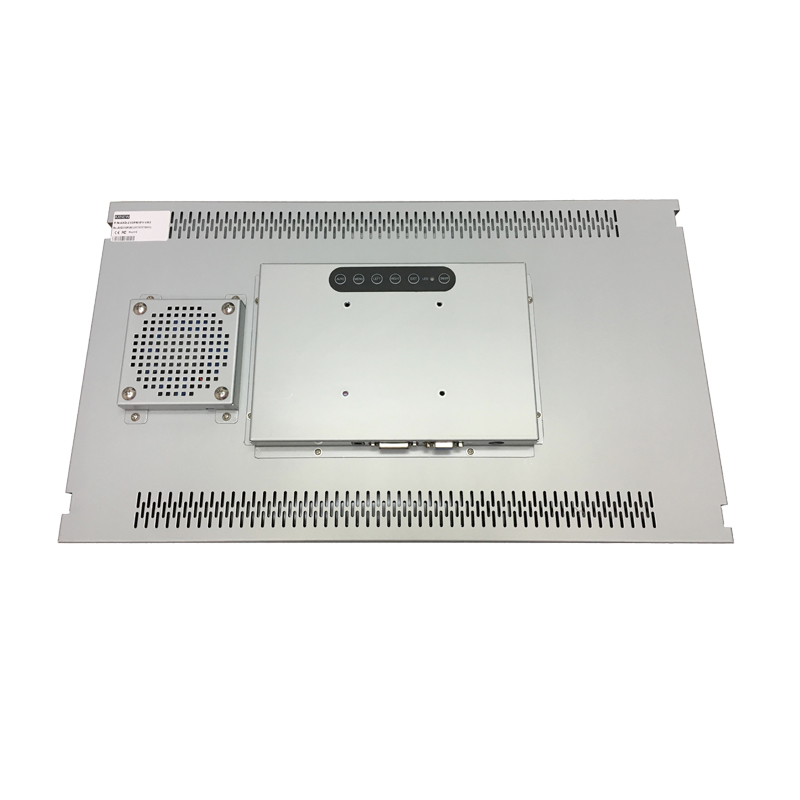

4. Cooling fan on the backside to help heat radiation
5. VGA DVI interfaces ;Resistive touch screen with USB touch
6. 21.5 inch open frame monitor with high brightness 1000nits for outdoor advertising , outdoor player ,campus and industrial terminals etc Features:

Versatile Connections: This models can be integrated in different boards
Touch innovations : There are ten-point touch capacitive screen ,Infrared touch and one-point single touch such as resistive touch and SAW touch , can be installed in this model , which is easily way to meet any working environment.
High Brightness options: The Monitors feature a backlight brightness of 600 cd/m² ,800cd/m2 up to 1500cd/m2 and are avaliable from sizes 7 inch, 10 inch, 12 inch, 14 inch,15 inch, 17 inch, 19 inch standard products. Testing devices are BM-7 devices .
