| Panel PC information | |
| Model Number | AXD-10PPC-V2A10 |

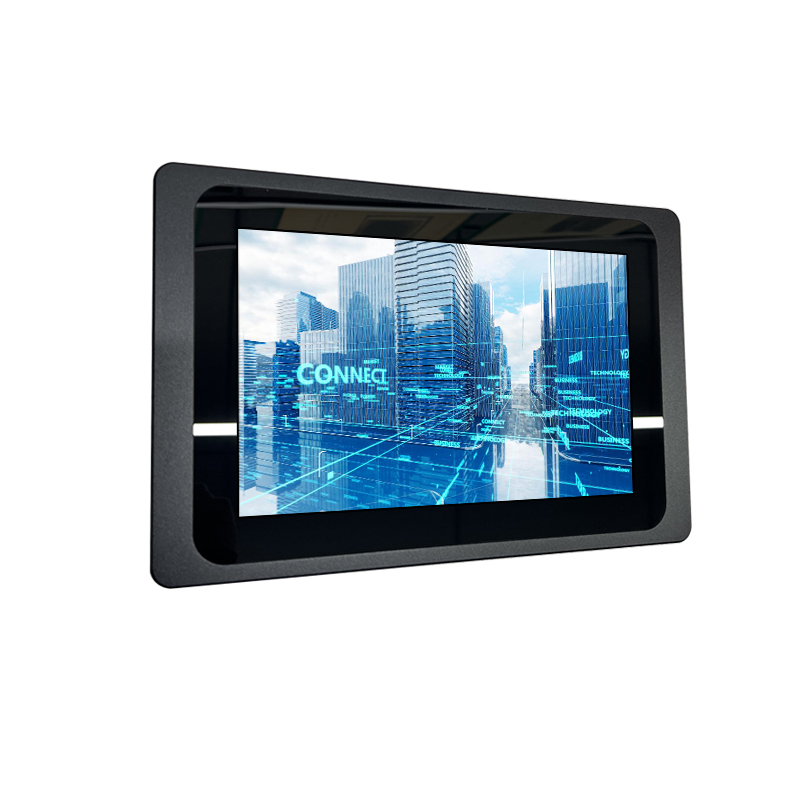

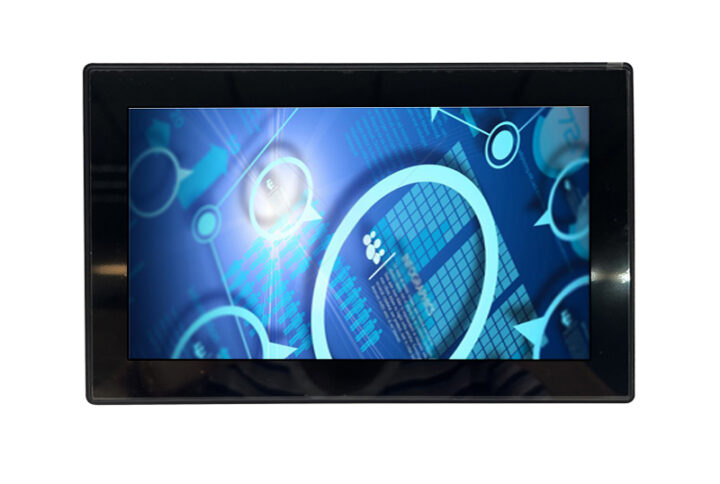

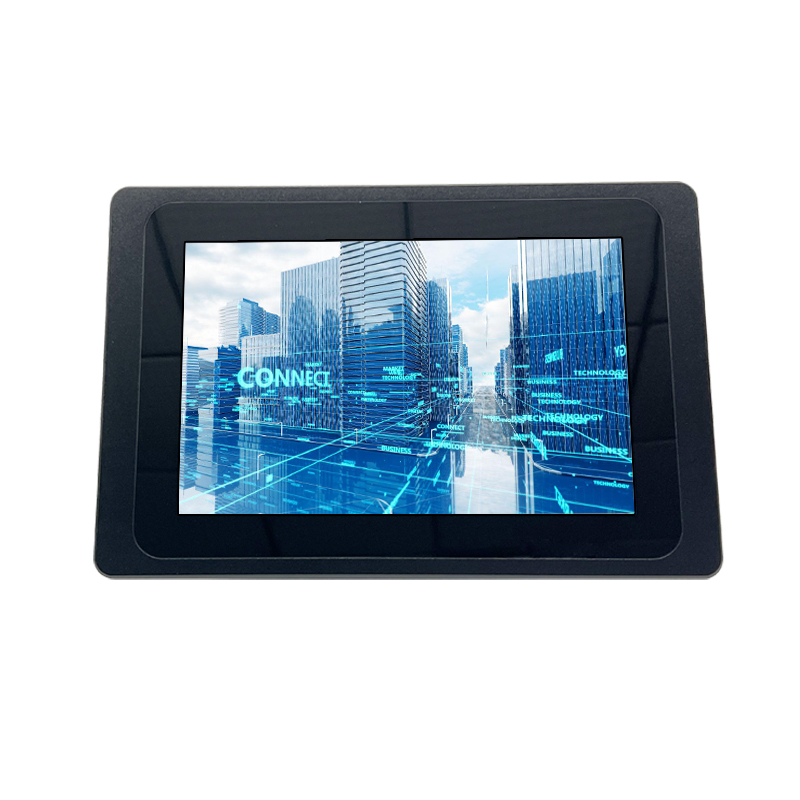

| 10” Fanless industrial Touch pc with capacitive touch | |
| Case/Bezel Color | Black |
| TFT Type | IPS LCD with LED backlight |
| Aspect ratio | 16:10 |
| Useful Screen Area | 220.6 mm x 139.6 mm |
| Touch Panel | capacitive Flat Screen with multi-touch (free driver) |
| Touch response time | 10ms (typical) |
| Touch PC Dimensions | 293x 194×60.3mm |
| Optimal (native) Resolution | 1280 x 800 |
| LCD panel Pixel pitch | 0.1695 x 0.1695 mm |
| LCD panel Colors | 262K/16.7 million |
| LCD panel Brightness | 350 cd/m2 |
| LCD panel Response Time | 25 ms |
| Contrast Ratio | 800:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±85° or 170° total |
| Vertical (up/down) | 85°(up), 85°(down) or 170° total |
| Output Interface | COM/HDMI type/ Audio/Mic |
| Input Interface | USB*4 |
| Net | Internet LAN |
| Watch Dog Technology | Support |
| Power Specification | External AC to DC power brick |
| input: +12VDC ±5%,4.0 A; DC Jack (2.5); DC 24V 3Pin phoenix input | |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | |
| Power dissipation: 36W max | |
| ECM (Embed Computer Module) | Intel® processor 1037U (1.8GHz + NM10 Chipset);
SSD: 64G;Rom:4G(DDR3,max6G); Operation System:Win7/10/Vista/Linux |
| Temperature | Operating: -10°C to 60°C ;Storage -20°C to 70°C |
| Humidity (non condensing) | Operating: 20%-90%; Storage: 10%-95% |
| Shipping Carton Dimensions | 490 x 440 x340 mm (Five pieces in one ) |
| Weight (approx.) | Actual: 11kg ;Shipping: 15kg |
| Dimensions | |
| Holes fixings | Clamp mount on sides， Vesa Mounting |
| Mechanical dimensions | 293x 194×60.3mm |
| Drawings | Please contact us for details |
Packaging & Delivery
| Packing details | 1x 10 inch Touch Screen panel
Packed in 5 pieces/carton with protection foam Optional accessories: 1x Power supply cable, 1x power adapter |
| Delivery terms | 7-10 working days for stock products after receiving payments; 15 working days for order production |
