Economic 17 Inch Slim Touch Panel PC With LAN COM Ports

Brand :

Model NO: AXD-17PPC-A5
Screen Size: 17 Inch
Display Resolution(pixel): 1280×1024
Contrast Ratio:1000:1
Brightness (CD/m^2): 300cd/m^2

Touch type: Resistive/Capacitive Touch screen

PC motherboard : I3-7200U fast speed with low consumption
Application: Kiosks,Industrial machines,Automation,etc

Panel PC information
Model Number AXD-17PPC-A5
17” Industrial Touch panel pc
Case/Bezel Color Black
TFT Type Industrial LCD with LED backlight
Aspect ratio 5:4
Useful Screen Area 337.920(H)x270.336(V)
Touch Panel 5 wire resisitive  touch
Touch response time 10ms (typical
LCD panel Pixel pitch 0.297 x 0.297 mm
LCD panel Colors 16.7million
LCD panel Brightness 300 cd/m2
LCD panel Response Time 8 ms
Contrast Ratio 1000:1
Viewing Angle ( Wide )
Horizontal (left/right) ±85° or 170° total
Vertical (up/down) 80°(up), 80°(down) or 160° total

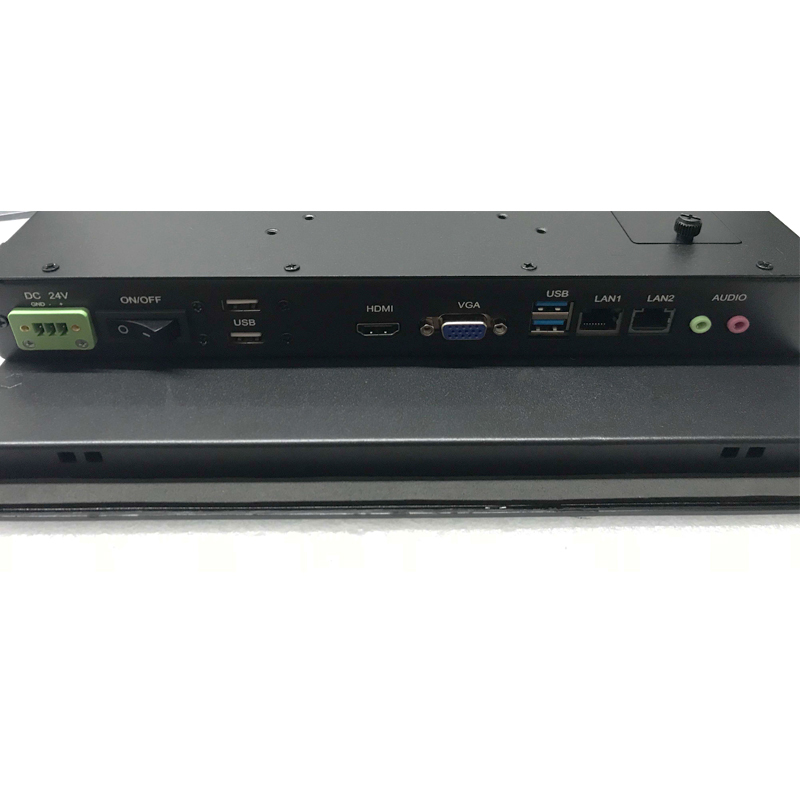

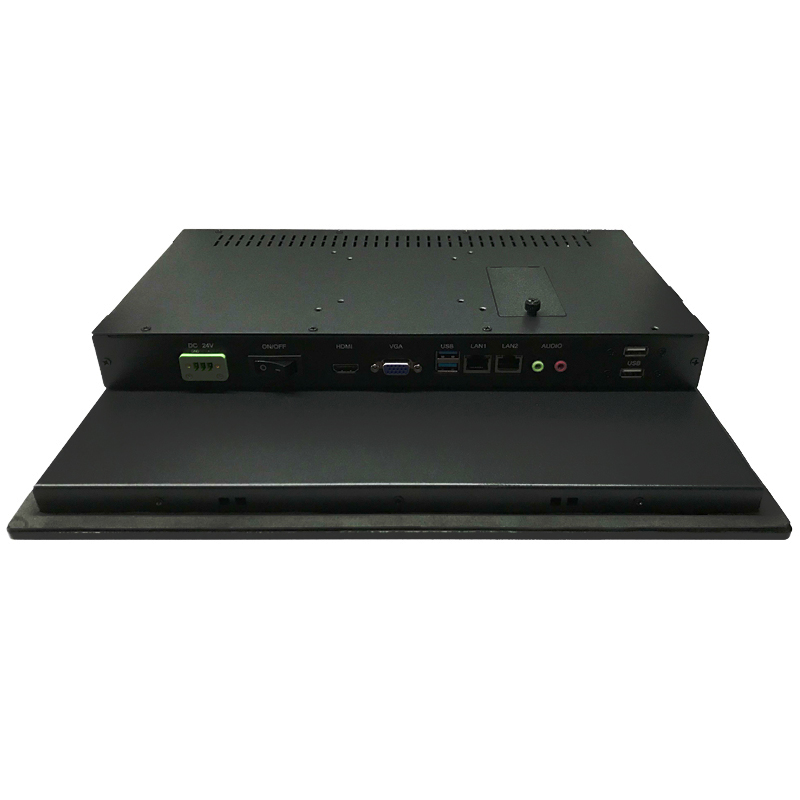

Output Interface VGA/h-dmi type/ AV/Rs232 Options
Input Interface USB*3
Net Internet LAN
Watch Dog Technology Support
Power Specification External AC to DC power brick
Monitor input: +12VDC ±5%,5.0 A; DC Jack (2.5)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power dissipation: 48W max
ECM (Embed Computer Module) Quad Core I3-7200U
RAM: 4G ; SSD:128G
Operation System: Linux, windows7/10 etc
Temperature Operating: -10°C to 60°C ;Storage -20°C to 60°C
Humidity (non condensing) Operating: 20%-90%; Storage: 10%-95%
Weight (approx.) Actual: 11kg ;Shipping: 15kg
Dimensions

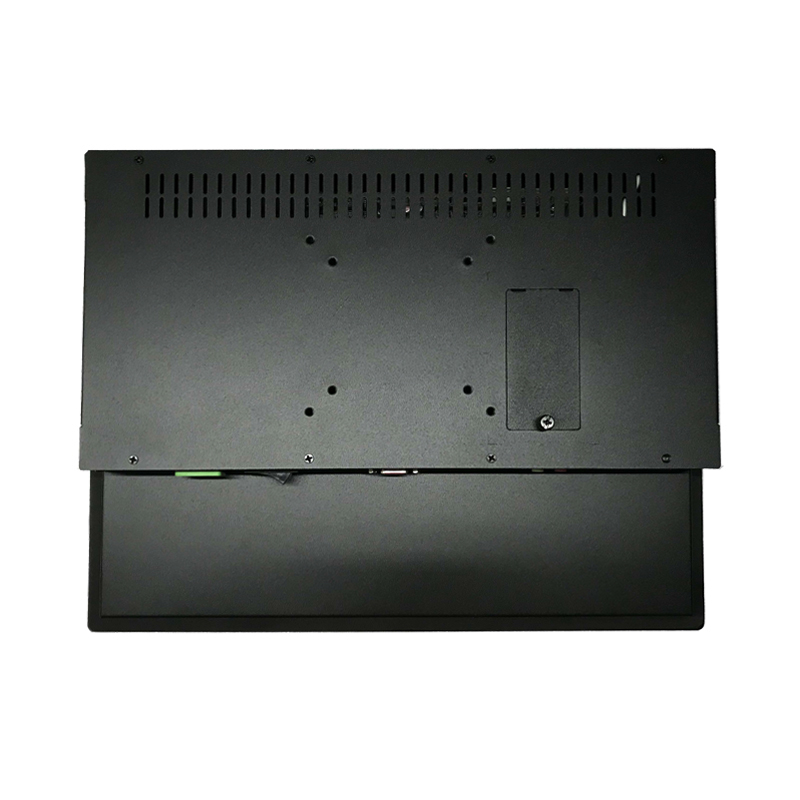

Holes fixings Vesa mounting 100×100
Drawings Please contact us for details

USB 1280X1024 Android Touch Panel PC 17 Factory with LAN COM Ports
