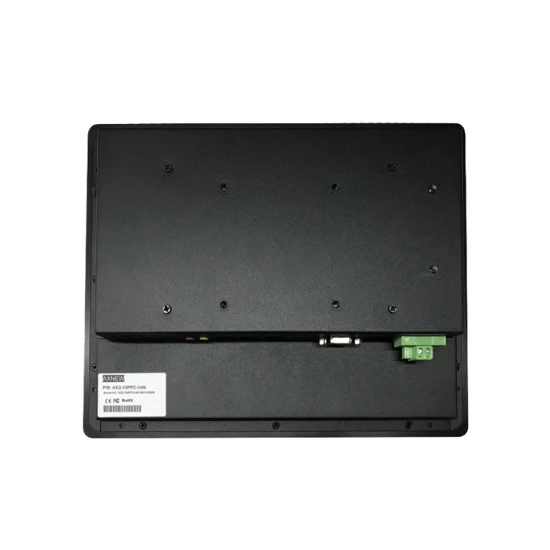

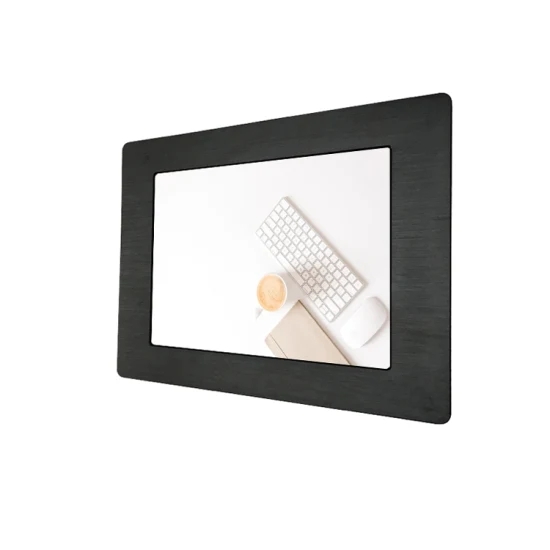

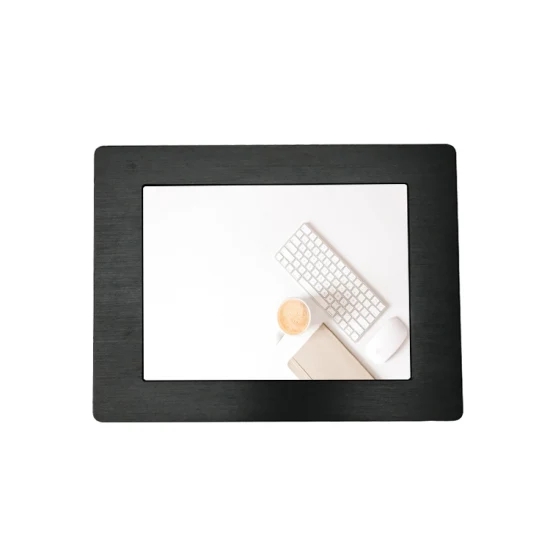

Small Touch Screen PC 10 Inch Wide Screen 16/10, Android Industrial Panel PC

Brand :

Model NO: AXD-10PPC-A2 C
Screen Size: 10 Inch
Display Resolution(pixel):1280×800
Contrast Ratio:800:1
Brightness (CD/m^2): 350cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc

Panel PC information
Model Number AXD-10PPC-A2 C
10” Andriod Touch panel pc
Case/Bezel Color Black
TFT Type IPS LCD with LED backlight
Aspect ratio 16:10
Useful Screen Area 220.6 mm x 139.6 mm
Touch Panel Industrial Resistive Flat Screen
Touch response time 10ms (typical
Touch PC Dimensions 262x 206×53.3 mm
Optimal (native) Resolution 1280 x 800
LCD panel Pixel pitch 0.1695 x 0.1695 mm
LCD panel Colors 262K/16.7 million
LCD panel Brightness 350 cd/m2
LCD panel Response Time 25 ms
Contrast Ratio 800:1
Viewing Angle ( Wide )
Horizontal (left/right) ±85° or 170° total
Vertical (up/down) 85°(up), 85°(down) or 170° total

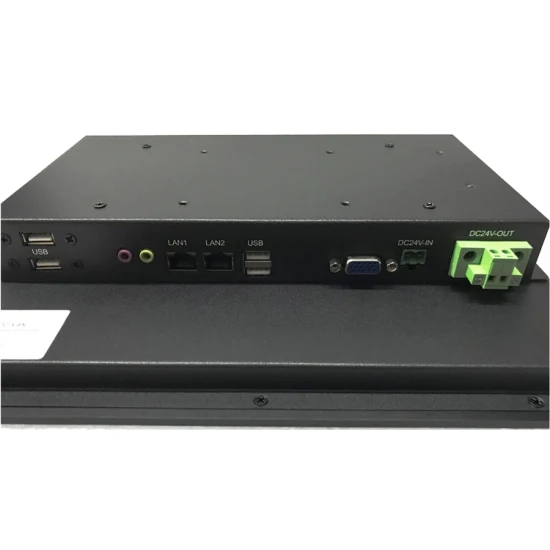

Output Interface VGA/HDMI type/ AV/Rs232 Options
Input Interface USB*3
Net Internet LAN
Watch Dog Technology Support
Power Specification External AC to DC power brick
Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power dissipation: 36W max
ECM (Embed Computer Module) Quad Core ARM CORTEX-A 9
DDR3: 2G; NAND :8G
Operation System:Android 4.42
Temperature Operating: -10°C to 60°C ;Storage -20°C to 60°C
Humidity (non condensing) Operating: 20%-90%; Storage: 10%-95%
Shipping Carton Dimensions 490 x 440 x340 mm (Five pieces in one )
Weight (approx.) Actual: 11kg ;Shipping: 15kg
Dimensions
Holes fixings Vesa mounting 100×100
Mechanical dimensions 262x 206×53.3 mm
Drawings Please contact us for details
