| Display Specifications | |
| Display | 24″ high brightness 1000nits lcd monitor |
| Model Name | AXD-24OPN1P1-VH3 |
| Active Display Area (mm) | 531.36 (H) x 298.89 (V) |
| Pixel Pitch (mm) | 0.2767(H) x 0.2767 (V) |
| Resolution (Pixel) | 1920X1080 |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 3000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 58W typical, normal operation |
| Touch screen | Options |
| OSD Control | On the back side |

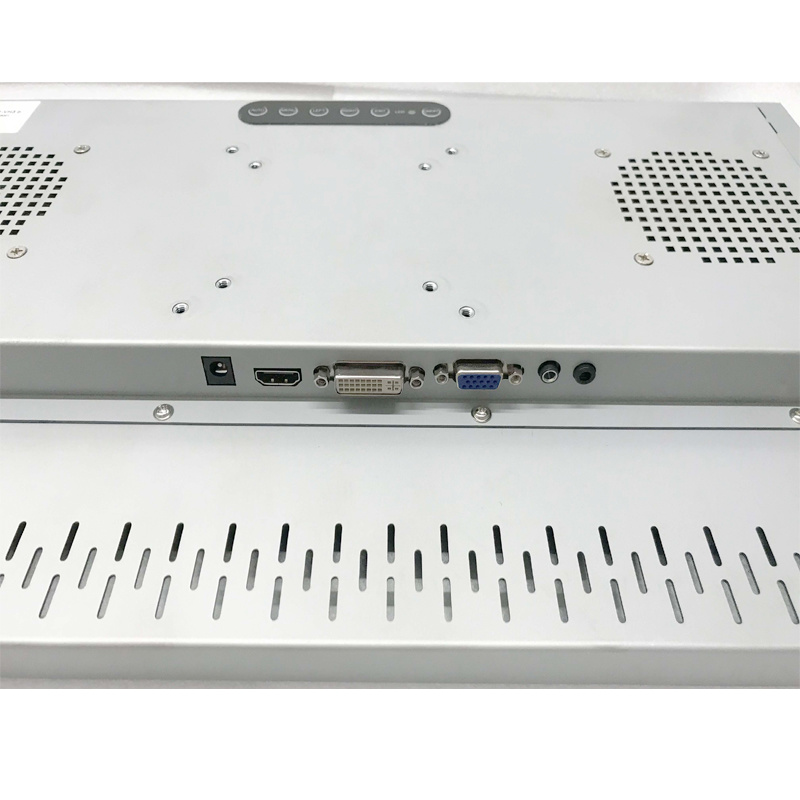

| I/O Connectors | 1x12v,1XVGA,1xHDMI,1XDVI-D |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 572.7x 353.7x 38.7(mm) |

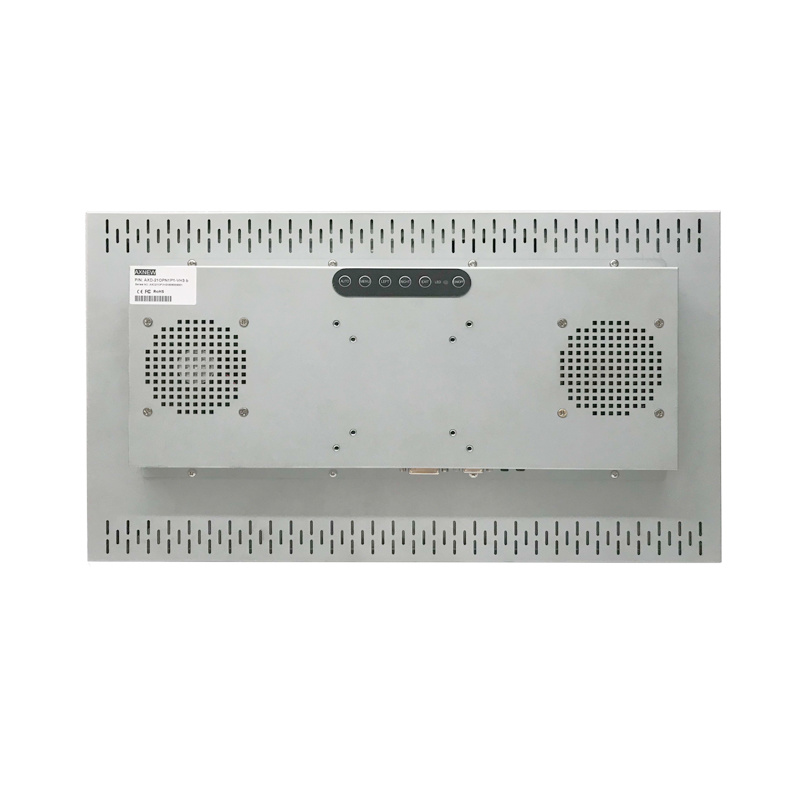

| Mounting | backside fixing holes ,VESA 75×75(100×100) |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | AXD-24OPN1P1-VH3 24” High brightness monitor hdmi |
