| Panel PC information | |
| Model Number | AXD-24PPC-V4 |

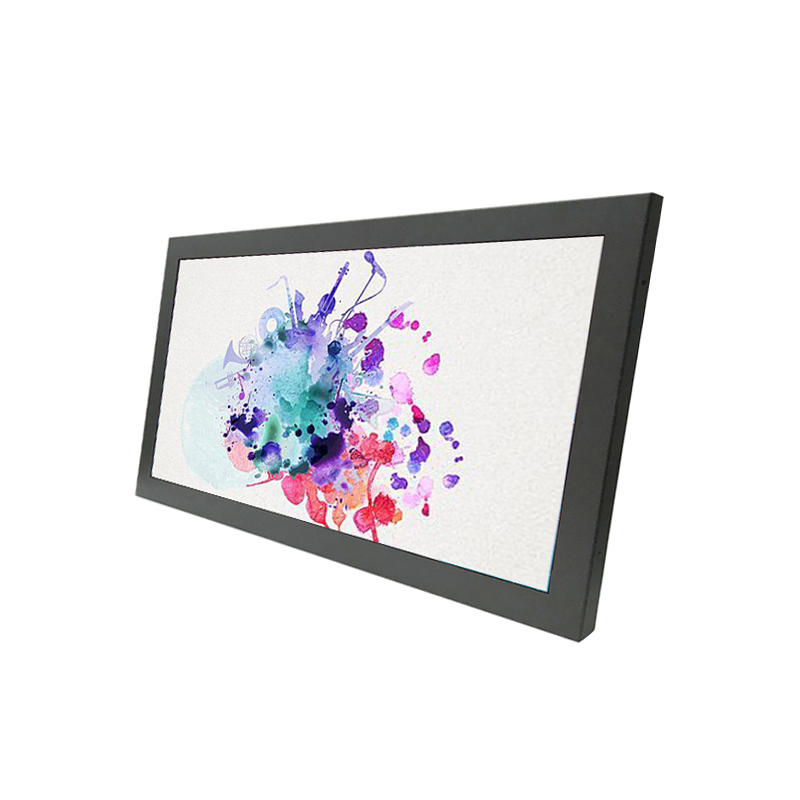

| 24.0” Touch panel pc | |
| Case/Bezel Color | Black/ Silver |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 16:9 |
| Touch Panel | Industrial Multi-touch IR Flat Screen |
| Touch response time | 8ms (typical) |
| Optimal (native) Resolution | 1920X1080 |
| LCD panel Pixel pitch | 0.2482 x 0.2482mm |
| LCD panel Colors | 16.7 million |
| LCD panel Brightness | 300 cd/m2 |
| LCD panel Response Time | 8ms |
| Contrast Ratio | 1000:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±85° or 170° total |
| Vertical (up/down) | 85°(up), 85°(down) or 170° total |
| CPU | Intel®QM77 Quad i7-6700HQ |
| storage | HDD 500G |
| Serial Ports | 1 x COM port internal |
| USB Ports | 3 x USB 3.0 ports, can expand |
| LAN | 2x LAN RJ-45 connector |
| DC Power In | 1 x 4-pin connector |
| Video Port | 1X Line-out ( S/ PDIF), 1XMic- in |
| Other Ports | 1x LAN, 1X DVI-D,1xHDMI,1X Display port |
| Internal Sockets & Connectors | 1 x PCI-E sockets; 2x Mini PCI-E sockets |
| Power Specification | DC 12V-24V |
| Working Environment | |
| Temperature | Operating: 0°C to 60°C ;Storage -30°C to 70°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Dimensions | |
| Mounting Type | Embedded Installation |
| Mechanical dimensions | Drawings |
| Weight (Net) | 14 kgs/ piece, 2 pieces/ carton |
| Drawings | Please contact us for details |
Packaging & Delivery
| Packing details | 1x 24 inch Industrial Touch Panel PC with QM77 Quad i7-6700HQ
Packed in 2 pieces/carton with protection foam Optional accessories:1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
