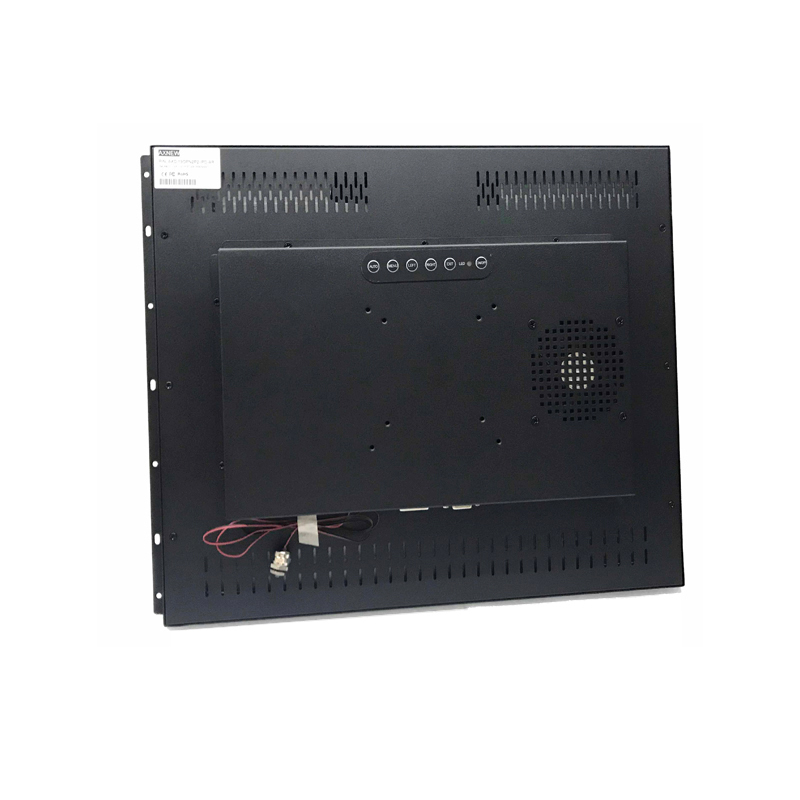

The AXD-19OPN1P2-IPD is 19” Open Frame Rugged embedded touch monitor, can be rear mount or with standard integrated metal housing for easy installation, support rear mounting and VESA mount .
It is suitable for gas station, financial machines, sports venues, medical devices, and other occasions that require high bright touch display.
| Display Specifications | |
| Display | 19″ Color Industrial Open Frame touch monitor with privacy filter installed |
| Model Name | AXD-19OPN1P2-IPD |
| Active Display Area (mm) | 376.3 (H)x301.1(V) |
| Pixel Pitch (mm) | 0.297(H)x0.297(V) |
| Resolution (Pixel) | SXGA (1280X1024) 16.2 M (6 bit + FRC) |
| Brightness (CD/m^2) | 800cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 34.5W typical, normal operation |
| Touch Screen | |
| Touch Type. | Projected-capacitive touch with anti-vandal glass |
| Touch Solution | Industrial chipset with G+G Cover glass |
| Touch hardness | >7H |
| Touch Glass Treatment | 85% Transmission Anti-glare to protect from sunlight |

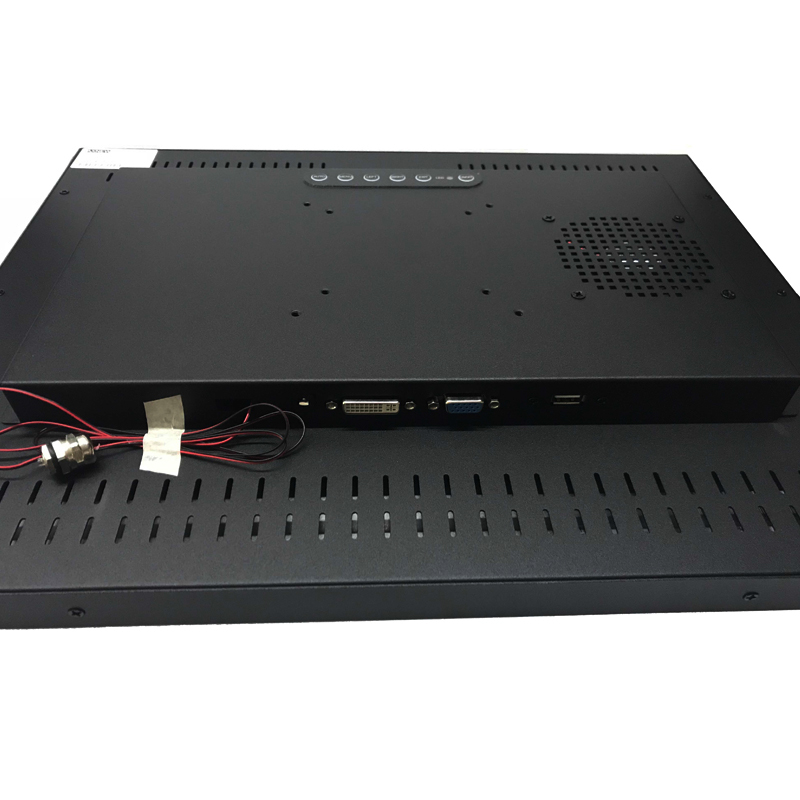

| I/O Connectors | 1x12v DC Input,1XVGA,1x DVI-D |
| Power Input | DC 12V,5A 60W |
| Mechanical Specifications | |
| Construction | Steel chassis & Touch installed with LCD screen |
| Dimensions | 421.0 x 346.0x 16.6mm |
| Mounting | Edge locking ,fixing holes embedded |
| Power source | AC 100~240V/ 12V DC-5A |
| Environment Specifications | |
| Operating Temperature | -5~60℃ |
| Storage Temperature | -20~60℃ |
| Rating | Facilitate installation of the demolition, solid portfolio |
Packaging & Delivery
| Packing details | 1x 19 inch Industrial Open Frame touch monitor with privacy filter installed; Packed in 3 pieces/carton with protection foam Optional accessories: 1Xhdmi , 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
