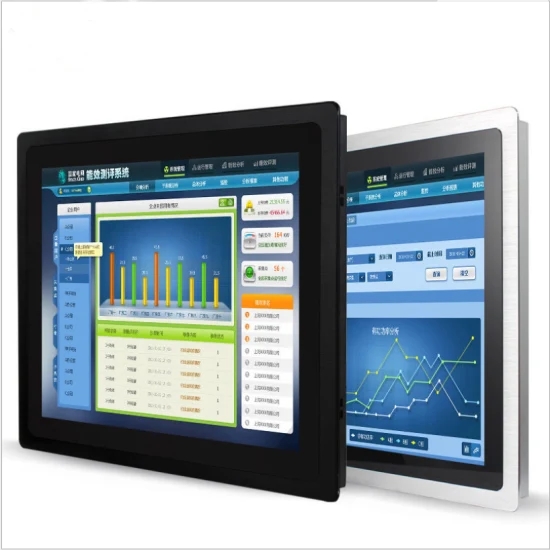

Fanless 15 Inch I5 Capacitive Industrial Touch Panel PC 1024X768 I5 Fast Processor

Brand :

Model NO: AXD-15PPC-V7A

Screen Size: 15 Inch

Display Resolution(pixel): 1024×768

Contrast Ratio:700:1

Brightness (CD/m^2): 500cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Panel PC information
Model Number AXD-15PPC-V7A
15” Industrial panel Touch pc Fanless
Case/Bezel Color Black
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Useful Screen Area 304.8×228.6mm
Touch Panel Industrial projected capacitive touch with eeti chipset
Touch response time 10ms (typical)
Touch PC Dimensions 309.1x 247.5 x50.0 mm
Optimal (native) Resolution 1024×768
LCD panel Pixel pitch 0.294 x 0.294 mm
LCD panel Colors 16.2 million
LCD panel Brightness 500 cd/m2
LCD panel Response Time 8ms
Contrast Ratio 700:1
Viewing Angle ( Wide )
Horizontal (left/right) ±80° or 160° total
Vertical (up/down) 60°(up), 80°(down) or 140° total
Output Interface DC*1;HDMI*1;Audio*2;RS232(COM)*2;etc
Input Interface USB*4.can extend
Net Internet LAN
Watch Dog Technology Support
Power Specification External AC to DC power brick
Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5)
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power dissipation: 36W max
ECM (Embed Computer Module) Intel® Dual Core I5 3317U(2.4 GHz )

SSD: 64G ;Rom:4G(DDR3,max6G);

Operation System:Win10/8/7;Linux

Temperature Operating: -10°C to 60°C ;Storage -20°C to 80°C
Humidity (non condensing) Operating: 20%-90%; Storage: 10%-95%
Shipping Carton Dimensions one piece/ per carton
Weight (approx.) Actual: 5kg ;Shipping: 7 kg
Dimensions
Holes fixings Vesa mounting 100×100; fixing button
Mechanical dimensions 376.1mmx 300.0mmx50.0mm
Drawings Please contact us for details
