| Display Specifications | |

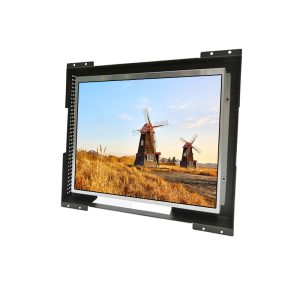

| Display | 12″ Color TFT Industrial Open frame Monitor |
| Model Name | AXD-12OPN1P1-V3 |
| Active Display Area (mm) | 246.0 (H) x 184.5 (V) |
| Pixel Pitch (mm) | 0.307 (H) x 0.307 (V) |
| Resolution (Pixel) | 1024X768 |
| Brightness (CD/m^2) | 450cd/m^2 |
| Contrast Ratio | 700:1 |
| Viewing Angle (CR >=10) | 160/160 |
| Power consumption | 7.3 W typical, normal operation |
| Touch Screen | Resistive, capacitive ;IR Touch ;RS232/USB(Optional) |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional),S-VIDEO,AV |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 350.1x 264.1x 50.0(mm) |
| Mounting | Up-down, Left-right fixing holes ,VESA 75×75(100×100) Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -30~85ºC |
| Storage Temperature | -30~85ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 12.1″ OP Monitor 500nits with HD VGA input and power adapter |
