The following is the relevant introduction about the 5-inch Android all-in-one machine:
Portability: The 5-inch screen size makes the Android all-in-one machine compact in size and easy to carry. It can be conveniently applied to scenarios that require frequent movement, such as mobile office work, on-site law enforcement, outdoor inspections, etc.
Convenient Operation: Based on the Android system, it has an intuitive touch screen interface. The operation is simple and easy to understand, and users can quickly get started. Moreover, it supports multi-touch, enabling various operation gestures such as zooming and swiping.
Rich Functions: It can integrate multiple functions, such as GPS navigation, Bluetooth communication, camera shooting, code scanning identification, fingerprint identification, etc., meeting the diverse needs of different users in various scenarios.
| Panel PC information | |
| Model Number | AXD-05PPC-AD1 |
| 5.0” Android Touch panel pc | |
| Case/Bezel Color | Black front bezel |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 16:9 |
| Touch Panel | Multi touch capacitive Flat Screen |
| Touch response time | 10ms (typical) |
| Optimal (native) Resolution | 800 x 480 |
| LCD panel Pixel pitch | 0.264 x 0.264 mm |
| LCD panel Colors | 16.2 million |
| LCD panel Brightness | 300 cd/m2 |
| LCD panel Response Time | 8ms |
| Contrast Ratio | 500:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±60° or 120° total |
| Vertical (up/down) | 60°(up),60°(down) or 120° total |
| CPU | Cortex-A8 1GHz |
| storage | 512MDDR3 SDRAM( Andriod is 1G) |

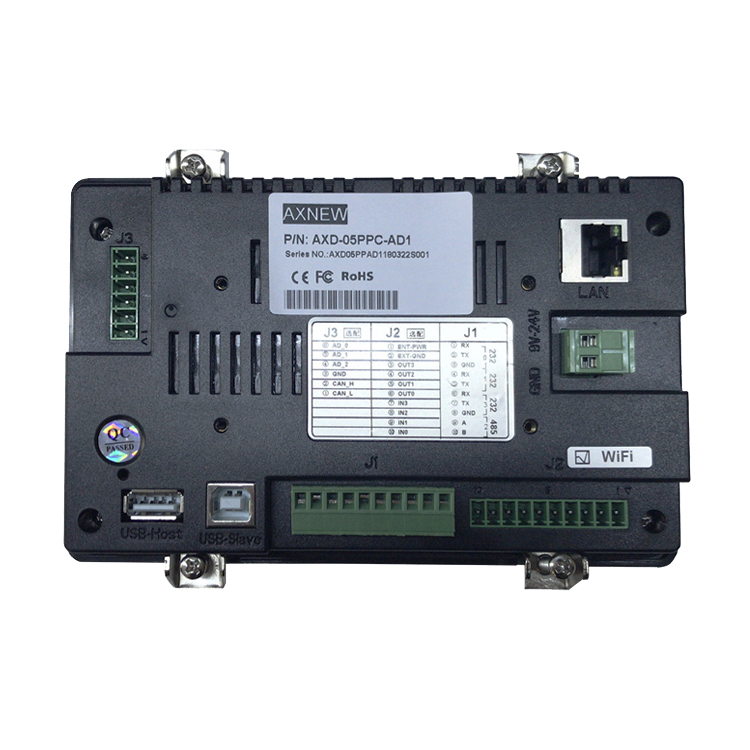

| Serial Ports | 4 x COM ports (1x RS-232/422/485 by-pin connector) |
| USB Ports | 2 x USB external ports |
| LAN | 1 x LAN RJ-45 connector/WIFI options |
| NandFlash | 256M Flash |
| DC Power In | 1 x 4-pin connector |
| Extended storage | 32G for SD card |
| Optional interfaces | CAN/RS485 |
| Supporting O.S | Andriod 4.2.2 version |
| Power Specification | DC 9V-24V |
| Working Environment | |
| Temperature | Operating: 0°C to 50°C ;Storage -10°C to 65°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Dimensions | |
| Mounting Type | Embedded Installation |
| Weight (Net) | 1.0kgs/ piece |
| Drawings | Please contact us for details |
Packaging & Delivery
| Packing details | 1x 5.0 Inch android Touch Panel PC; Packed in 10 pieces/carton with protection foam |
| Delivery terms | 7- working days for stock products after receiving payments; 15working days for order production |
