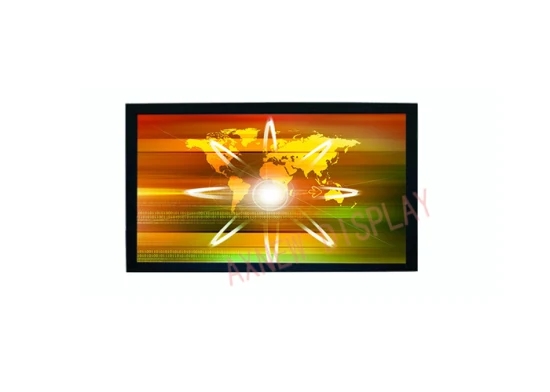

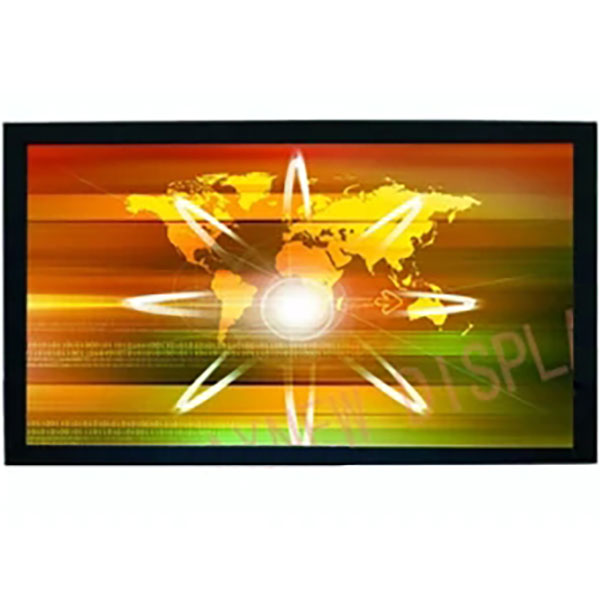

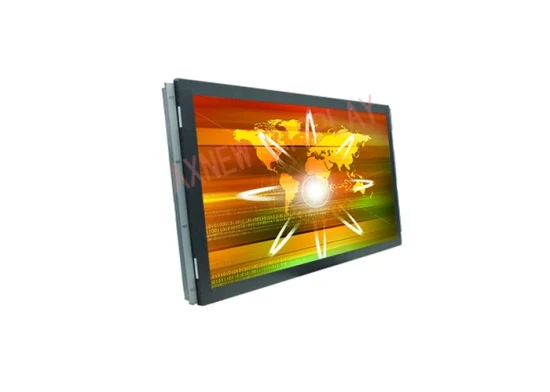

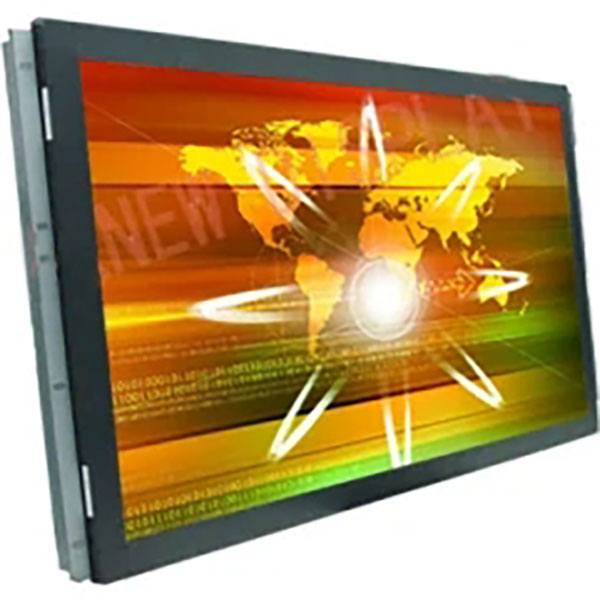

28.5W VGA DVI Industrial LCD Display 400CD/M2 Capacitive Touch Screen Display

Brand :

Model NO: AXD-26OPN1T1-V2(VGA/DVI)
Screen Size: 26 Inch
Display Resolution(pixel): 1920×1080
Contrast Ratio:1500:1
Brightness (CD/m^2): 400 cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc

Display Specifications

Display

26″ Color LED Industrial SAW Touch Monitor

Model Name

AXD-26OPN1T1-V2

Active Display Area (mm)

575.77(H)x 323.71(V)

Pixel Pitch (mm)

0.4215(H)x 0.4215(V)

Resolution (Pixel)

1366X768;1920X1080  262,144(6 bit + FRC)

Brightness (CD/m^2)

400cd/m^2; 500nits

Contrast Ratio

1500:1

Viewing Angle (CR >=10)

176/176 wide view angle

Power consumption

28.5W typical, normal operation

Touch Screen

SAW  anti-vandal touch

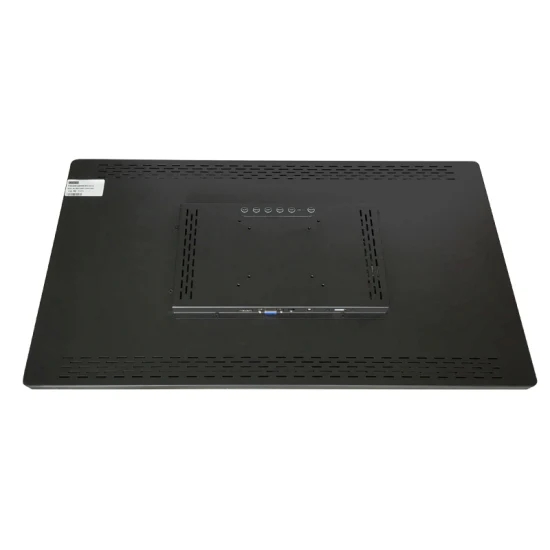

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A 48W Adapter

Mechanical Specifications

Construction

Open frame steel metal material

Dimensions

666.0x 376.2x 95.0(mm)

Mounting

Embedded ,right and left ; VESA 75×75(100×100) Wall Mounting Optional

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

0~60ºC

Storage Temperature

-10~60ºC

Rating

Facilitate installation of the demolition, solid portfolio

Ordering Information

26.0″ OP LED Monitor with VGA input and power adapter


Features and Advantages

1. New and A grade perfect panels with wide viewing angle
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces; SAW long use life with USB/ RS232 touch controller

6. 26 inch touch open frame monitor for application control , advertising player, campus and industrial terminals etc
