| Display Specifications | |

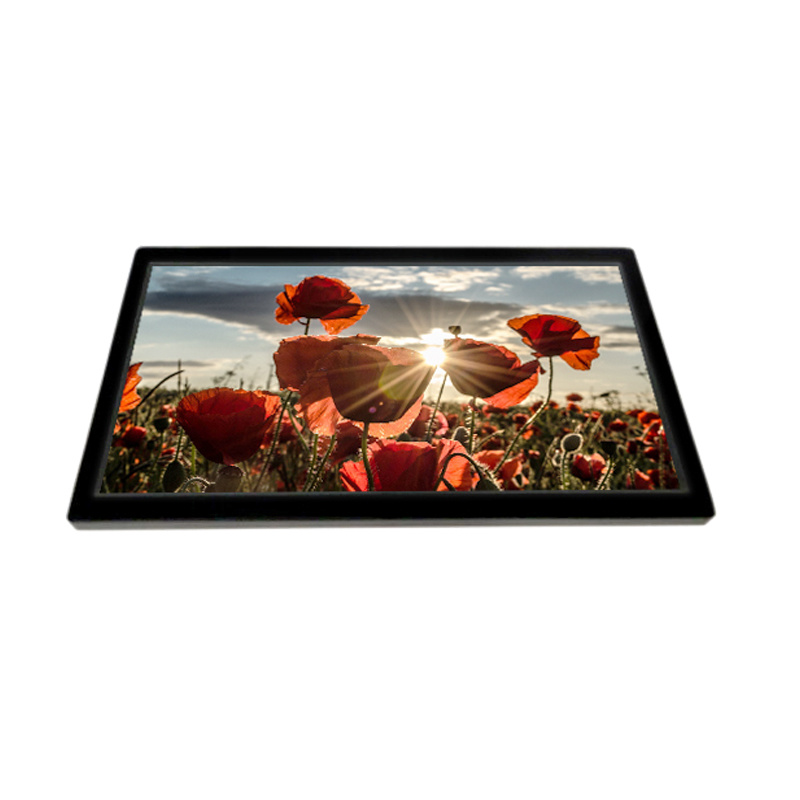

| Display | 24″ Color TFT LED monitor |
| Model Name | AXD-24OPN1P1-VH5 |
| Active Display Area (mm) | 535.40(H)X303.0(V) |
| Pixel Pitch (mm) | 0.276(H)x0.276(V) |
| Resolution (Pixel) | WSXGA (1920X1080 FULL HD) 16.7M COLORS |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 64.5 W typical, normal operation |
| Touch Screen | SAW ;Resistive,capacitive ;IR Touch ;RS232/USB(Optional) |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | steel metal / Black color |
| Dimensions | 548.0X324.0x 40.0(mm) |

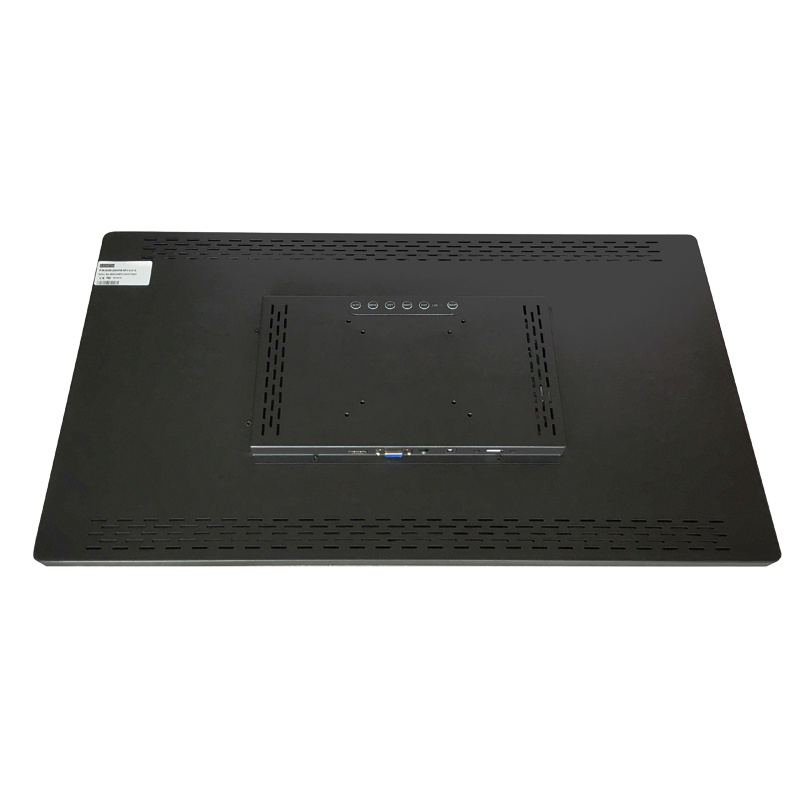

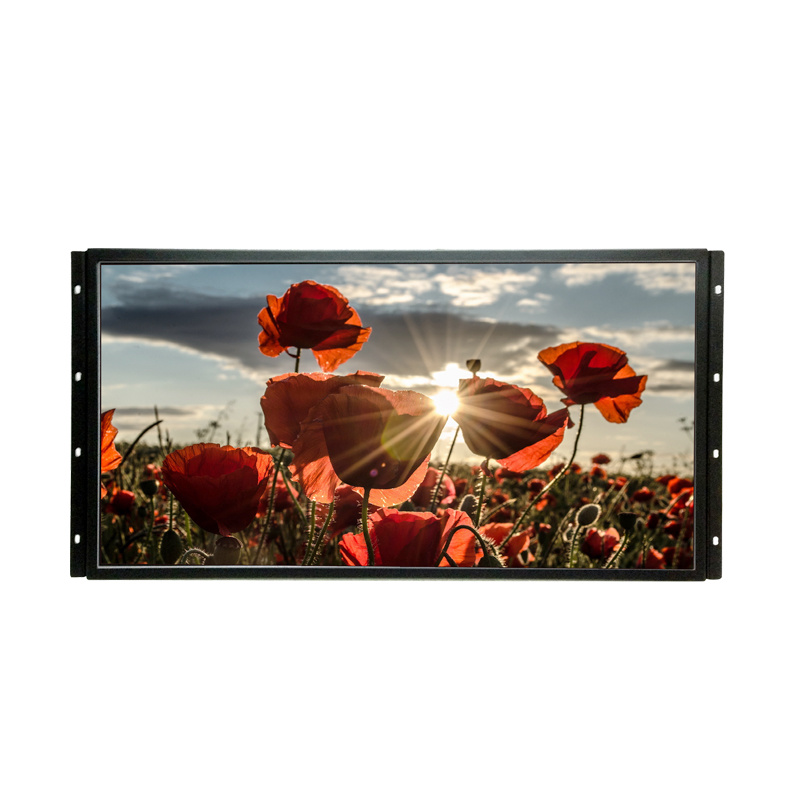

| Mounting | Embedded ,vesa 75×75(100×100) Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC/AC adapter |
| Environment Specifications | |
| Operating Temperature | 0~60ºC |
| Storage Temperature | -20~60ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 24″OP wide screen sunlight readable Monitor with VGA input and power adapter |
