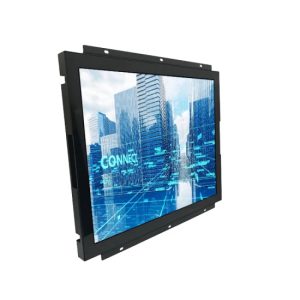

19 Inch IP65 Touch Screen Monitor 600nits with IPS Display

Brand :

Model NO.: AXD-19OPPMD-T2V2
Size: 19 inch
Resolution: 1280×1024
Brightness: 600cd/m2
Touch Type: capacitive touch
Front design: IP55 Sealing design

Category:
Display Specifications
Display 19″ Color TFT IP65 Touch LCD Monitor
Model Name AXD-19OPPMD-T2 V2
Active Display Area (mm) 376.3 (H)x301.1(V)
Pixel Pitch (mm) 0.294(H)x0.294(V)
Resolution (Pixel) SXGA (1280X1024) 262,16.2M (6 bit + FRC)
Brightness (CD/m^2) 600cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 170/160
Power consumption 28.5W typical, normal operation
Touch Screen Projected-capacitive ;USB communication
Layer G+G 3MM anti-vandal glass
Touch 10 points touch
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,1xDVI-D;1xHDMI
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel metal with rugged frame
Dimensions 438.6 x 361.0x 50.0 (mm)
Mounting fixing braket ;Embedded ;Panel Mount;vesa mount
Power source AC 100~240V/ 12V 4A AC/DC adapter
Environment Specifications
Operating Temperature -10~60℃
Storage Temperature -20~70℃

Quick Comparison

Settings19 Inch IP65 Touch Screen Monitor 600nits with IPS Display removeWaterproof Touch Screen Monitor 15 Inch 176 Super Viewing Angle Industrial Panel Mount remove23.3W IP65 Resistive Touch LCD Monitor 800CD/M2 for Outdoor CNC 12VDC remove15 Inch 24V industrial panel mount Touch monitor with HDMI input removeSlim Thin Waterproof LCD Display 10.4 Inch 300nits Brightness Projected Capacitive Touch remove15 Inch Wide Screen 1366X768 IP65 Capacitive Touch Monitor with DC12V remove
Name19 Inch IP65 Touch Screen Monitor 600nits with IPS Display removeWaterproof Touch Screen Monitor 15 Inch 176 Super Viewing Angle Industrial Panel Mount remove23.3W IP65 Resistive Touch LCD Monitor 800CD/M2 for Outdoor CNC 12VDC remove15 Inch 24V industrial panel mount Touch monitor with HDMI input removeSlim Thin Waterproof LCD Display 10.4 Inch 300nits Brightness Projected Capacitive Touch remove15 Inch Wide Screen 1366X768 IP65 Capacitive Touch Monitor with DC12V remove
Image19" IP65 Touch Screen Monitor 600nits with IPS DisplayWaterproof Touch Screen Monitor 15 Inch 176 Super Viewing Angle Industrial Panel Mount23.3W IP65 Resistive Touch LCD Monitor 800CD/M2 for Outdoor CNC 12VDC15 inch 24V industrial panel mount Touch monitor with HDMI inputSlim Thin Waterproof LCD Display 10.4 Inch 300nits Brightness Projected Capacitive Touch15′ ′ Wide Screen 1366X768 IP65 Capacitive Touch Monitor with DC12V
SKU
Rating
Price
Stock
Availability
Add to cart

DescriptionModel NO.: AXD-19OPPMD-T2V2 Size: 19 inch Resolution: 1280x1024 Brightness: 600cd/m2 Touch Type: capacitive touch Front design: IP55 Sealing designModel NO: AXD-15OPIPN1P1-V2 Screen Size: 15 Inch Display Resolution(pixel): 1024X768 Contrast Ratio:800:1 Brightness (CD/m^2): 500cd/m^2 Touch type: Resistive/Capacitive Touch screen Application: Kiosks,Industrial machines,Automation,etcModel NO: AXD-15OPIPPM07-T1 Screen Size: 15 Inch Display Resolution(pixel): 1024x768 Contrast Ratio:600:1 Brightness (CD/m^2): 800cd/m^2 Touch type: Resistive/Capacitive Touch screen Application: Kiosks,Industrial machines,Automation,etcModel No.: AXD-15OPIP2-VT1 Size: 15 inch Resolution: 1024x768 Brightness: 500cd/m2 Touch type: capacitive touch Design frame: IP front bezel Power input: 24V inModel NO: AXD-10OPN1P1-V2C Screen Size: 10.4 Inch Display Resolution(pixel): 800X600 Contrast Ratio:500:1 Brightness (CD/m^2): 300cd/m^2 Touch type: Resistive/Capacitive Touch screen Application: Kiosks,Industrial machines,Automation,etcModel NO: AXD-156OPIVT2W2 Screen Size: 15.6 Inch Display Resolution(pixel): 1366x768 Contrast Ratio:800:1 Brightness (CD/m^2): 400cd/m^2 Touch type: Resistive/Capacitive Touch screen Application: Kiosks,Industrial machines,Automation,etc
Content
Display Specifications
Display 19" Color TFT IP65 Touch LCD Monitor
Model Name AXD-19OPPMD-T2 V2
Active Display Area (mm) 376.3 (H)x301.1(V)
Pixel Pitch (mm) 0.294(H)x0.294(V)
Resolution (Pixel) SXGA (1280X1024) 262,16.2M (6 bit + FRC)
Brightness (CD/m^2) 600cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 170/160
Power consumption 28.5W typical, normal operation
Touch Screen Projected-capacitive ;USB communication
Layer G+G 3MM anti-vandal glass
Touch 10 points touch
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,1xDVI-D;1xHDMI
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel metal with rugged frame
Dimensions 438.6 x 361.0x 50.0 (mm)
Mounting fixing braket ;Embedded ;Panel Mount;vesa mount
Power source AC 100~240V/ 12V 4A AC/DC adapter
Environment Specifications
Operating Temperature -10~60℃
Storage Temperature -20~70℃
Display Specifications
Display 15" Color TFT Panelmount IP65 touchscreen Monitor
Model Name AXD-15OPIPN1P1-V2
Active Display Area (mm) 305.7(H)x229.7(V)
Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
Resolution (Pixel) 1024X768
Brightness (CD/m^2) 500cd/m^2
Contrast Ratio 800:1
Viewing Angle (CR >=10) 176/176
Power consumption 10.3 W typical, normal operation
Touch Screen
Type 5 wire Resistive touchscreen USB
Durability 35 Million touches
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D
Power Input AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction Aluminum Frame with rugged powered housing
Dimensions 376.1mmx 300.0mmx50.0mm
Mounting Up-down, Left-right panelmount screws fixing holes ,VESA 75x75(100x100)
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~80ºC
Storage Temperature -30~80ºC
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 15" panelmount Monitor 500nits with HD VGA input and power adapter



Packaging & Delivery

Packing details

1x 12.1 inch panelmount touchscreen monitor
Packed in 5 pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms 7- working days for stock products after receiving payments; 15 working days for order production



Features and Advantages



1. G15 New and Industrial A grade perfect panels with 70,000 Hours (min) led backlight life
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. Rugged panel mount closed industrail design to protect the LCD screen
5. VGA DVI interfaces ;5 wire resistive touch screen,usb port
6. 15 inch industrial touchscreen monitor for application control ,and industrial terminals etc

Waterproof Touch Screen Monitor 15 Inch 176 Super Viewing Angle Industrial Panel Mount Waterproof Touch Screen Monitor 15 Inch 176 Super Viewing Angle Industrial Panel Mount

Display Specifications
Display 15" Color TFT Panel mount touch Monitor
Model Name AXD-15OPIPPM07-T1
Active Display Area (mm) 304.1(H)x304.1(V)
Pixel Pitch (mm) 0.297(H)x0.297(V)
Resolution (Pixel) XGA (1024X768) 262K/16.2M Color
Brightness (CD/m^2) 800nits
Contrast Ratio 600:1
Viewing Angle (CR >=10) 160/140
Power consumption 23.3W typical, normal operation
Touch Screen Resistive;RS232/USB(Optional)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D
Power Input DC 12V,@4A 48W
Mechanical Specifications
Construction Steel Metal chassis & Black Color
Dimensions 398.0 x 295.0x 48 (mm)
Mounting Edge fixing holes, vesa mounting on the backside
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -10~70ºC
Storage Temperature -20~80ºC
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 15" Panel mount touch LCD Monitor with VGA input and power adapter
23.3W IP65 Resistive Touch LCD Monitor 800CD/M2 for Outdoor CNC 12VDC 23.3W IP65 Resistive Touch LCD Monitor 800CD/M2 for Outdoor CNC 12VDC 23.3W IP65 Resistive Touch LCD Monitor 800CD/M2 for Outdoor CNC 12VDC
Display 15" Color TFT Panelmount IP65 touchscreen Monitor
Model Name AXD-15OPIP2-VT1
Active Display Area (mm) 305.7(H)x229.7(V)
Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
Resolution (Pixel) 1024X768
Brightness (CD/m^2) 500cd/m^2
Contrast Ratio 800:1
Viewing Angle (CR >=10) 176/176
Power consumption 10.3 W typical, normal operation
Touch Screen
Type capacitive touchscreen USB
Durability 50 Million multi touches
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,HDMI
Power Input 3PIN 24V DC connector
Mechanical Specifications
Construction Aluminum Frame with rugged powered housing
Dimensions 376.1mmx 300.0mmx50.0mm
Mounting Up-down, Left-right panelmount screws fixing holes ,VESA 75x75(100x100)
Power source DC24V ( wide voltage range)
Environment Specifications
Operating Temperature -20~80℃
Storage Temperature -30~80℃
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 15” panelmount Monitor 500nits with hmdi  VGA input with 3 PIN connector

15 inch 24V industrial panel mount Touch monitor with HDMI input

Display Specifications
Display 10.4" Color TFT IP65 touchscreen Monitor
Model Name AXD-10OPN1P1-V2C
Active Display Area (mm) 211.2 (H) x 158.4 (V)
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Resolution (Pixel) 800X600
Brightness (CD/m^2) 300cd/m^2
Contrast Ratio 500:1
Viewing Angle (CR >=10) 140/120
Power consumption 6.4 W typical, normal operation
Touch Screen
Type Capacitive touchscreen USB
Durability 50 Million touches(min)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,HDMI
Power Input AC 100~240V,Universal,±10% ; AC/DC 12V4A
Mechanical Specifications
Construction Steel Frame with rugged powered housing
Dimensions 248.8x 196.0x 42.2(mm)
Mounting VESA 75x75(100x100)
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70ºC
Storage Temperature -30~80ºC
Rating Facilitate installation of the demolition, solid portfolio
Ordering Information 10.4" capacitive IP65 touch monitor with 300nits


Packaging & Delivery


Packing details

1x 10.4 inch capacitive IP65 touch monitor

Packed in 5 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms 7- working days for stock products after receiving payments; 15 working days for order production


Features and Advantages



1. G104 series New and Industrial perfect panels

2. industrial control board supports the displays working 24 hours

3. Panel mount with rugged frame guarantees its working normally in rough environment

4. VGA HDMI interfaces ; Pcap capacitive touch screen,usb port

5. 10.4 inch industrial touchscreen monitor for application control ,and industrial terminals etc

Slim Thin Waterproof LCD Display 10.4 Inch 300nits Brightness Projected Capacitive Touch

Slim Thin Waterproof LCD Display 10.4 Inch 300nits Brightness Projected Capacitive Touch

Slim Thin Waterproof LCD Display 10.4 Inch 300nits Brightness Projected Capacitive Touch

Display Specifications
Display 15.6" Color TFT IP65 Touch monitor
Model Name AXD-156OPIVT2W2
Active Display Area (mm) 344.16(H)x193.59(V)
Pixel Pitch (mm) 0.1795(H)x0.1795(V)
Resolution (Pixel) 1366x768
Brightness (CD/m^2) 400nits
Contrast Ratio 800:1
Viewing Angle (CR >=10) 170/160
Power consumption 13.6W typical, normal operation
Touch Screen Pro-Capacitive touch panel( USB Controller)
OSD Control On the back side
I/O Connectors 1x12v,1XVGA, 1xHDMI
Power Input 3 pin connector with 24V converter
Mechanical Specifications
Construction Steel housing & black Color, anti-vandal
Dimensions 397.0x 25270.0x43.0(mm)
Mounting Embedded ,up and down; left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -10~60ºC
Storage Temperature -15~65ºC
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 15.6" 1366x768  with 2mm anti-vandal capacitive touch with display port Input


Features and Advantages

  1. 15.6 inch capacitive touch with flat true design, with IP65 treatment , is new and popular touch technology for Medical industry , Automatic equipments etc 2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed 3. industrial control board supports the displays working 24 hours, display port , hdmi, DVI signal inputs 4. Professional and industrial hardware and parts to guarantee its working normally in rough environment 5. 8-40v wide voltage could be supported , 24V DC is typical voltage for the monitor. 6. Projection capacitive touch with anti-vandal glass, using eeti chipset witout any interference. 7. water proof sealing in the front , dust proof , protecitve the screen from harsh environment 15′ ′ Wide Screen 1366X768 IP65 Capacitive Touch Monitor with DC12V 15′ ′ Wide Screen 1366X768 IP65 Capacitive Touch Monitor with DC12V 15′ ′ Wide Screen 1366X768 IP65 Capacitive Touch Monitor with DC12V
WeightN/AN/AN/AN/AN/AN/A
DimensionsN/AN/AN/AN/AN/AN/A
Additional information
