| Display Specifications | |
| Display | 19″ Color TFT High brightness touch Monitor |
| Model Name | AXD-19OPN1P2-VHT2 |
| Active Display Area (mm) | 376.3 (H)x301.1(V) |
| Pixel Pitch (mm) | 0.294(H)x0.294(V) |
| Resolution (Pixel) | SXGA (1280X1024) 16.2 M (6 bit + FRC) |
| Brightness (CD/m^2) | 800cd/m^2 |
| Contrast Ratio | 2000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 50.5W typical, normal operation |
| Touch Screen | Capacitive touch panel anti-vandal |
| OSD Control | On the back side |

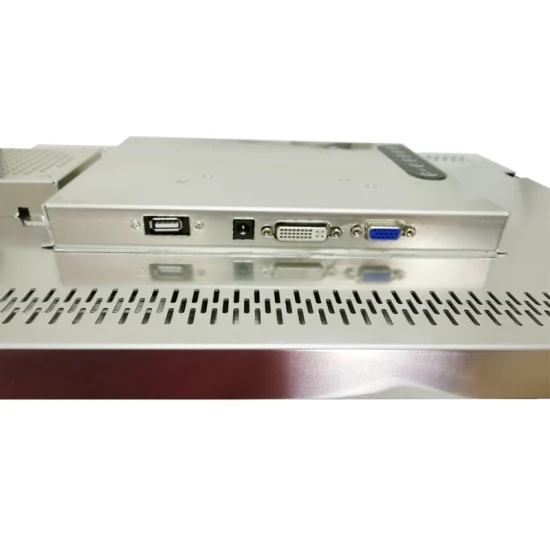

| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel chassis & Black Color |
| Dimensions | 432.0 x 339.0×49.8 (mm) |
| Mounting | Edge locking ,fixing holes embedded |
| Power source | AC 100~240V/ 12V DC-4A |
| Environment Specifications | |
| Operating Temperature | -20~65ºC |
| Storage Temperature | -20~75ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 19″ PCAP high brightness display 800nits with VGA input and power adapter |
Packaging & Delivery
| Packing details | 1x 19 inch Sunlight Readable LCD display;Packed in 2 pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;Capacitive Touch screen with anti-vandal to protect the LCD
6. 19 inch high brightness open frame touch monitor for application control , advertising player ,campus and industrial terminals etc
