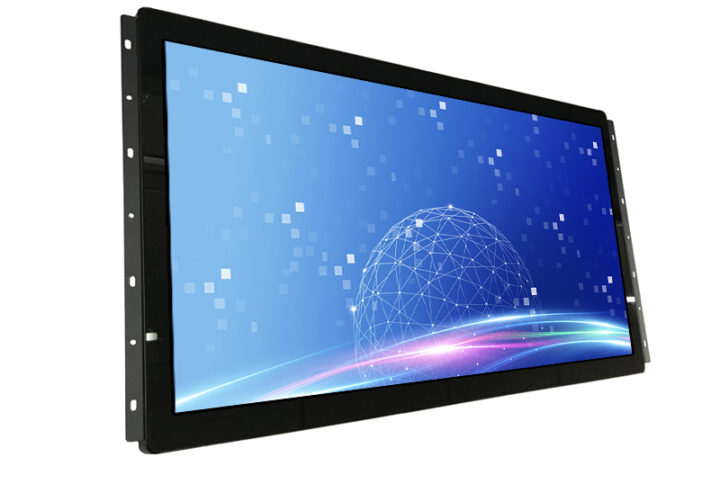

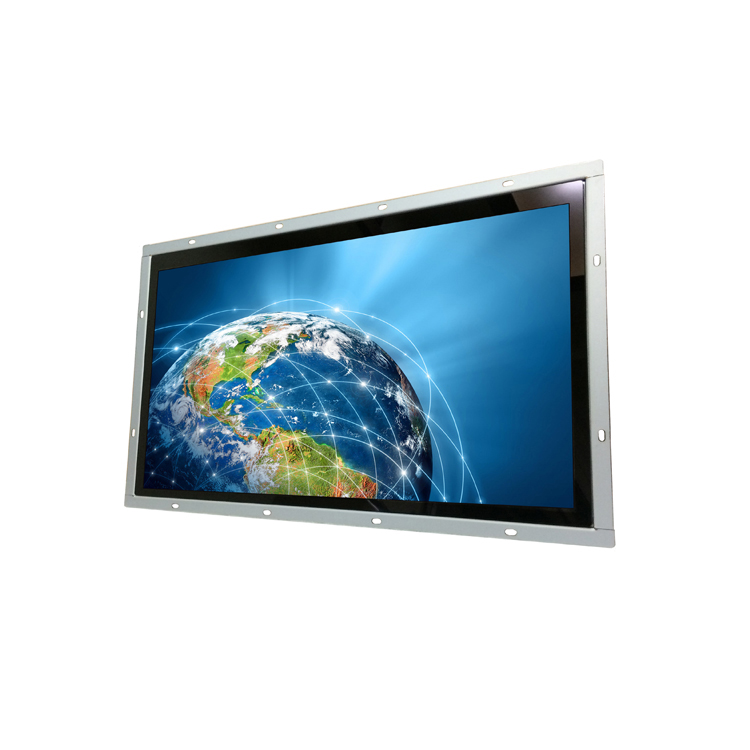

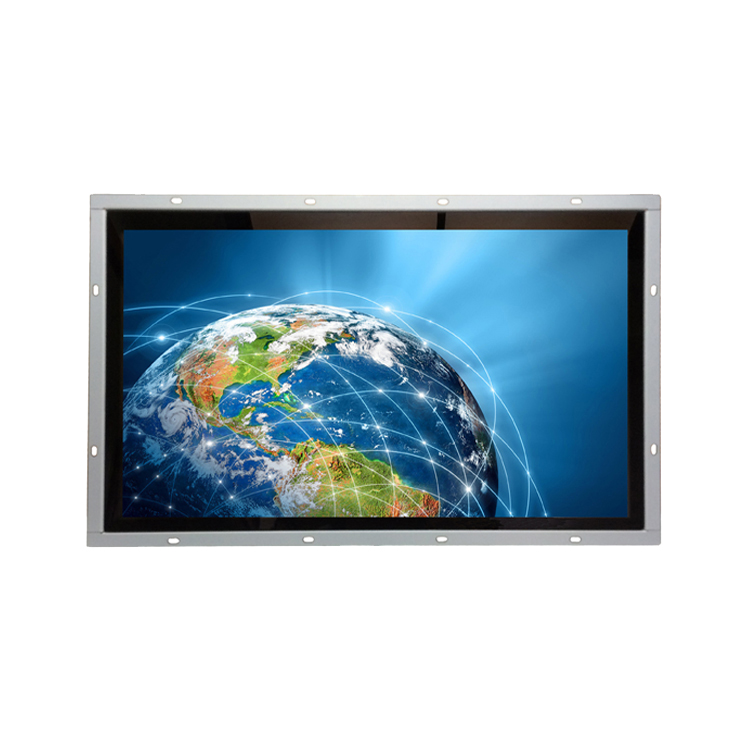

17.3 inch is one special size 16:9 open frame capacitive touch monitor with 1920×1080 resolution at 400nits, which is widely used in some medical devices, military Industrial monitors , gas station ,its rear mounting with open Frame LCD Monitor offers flexible options for TFT LCD Panel, touchscreen, signal interfaces.
Multi-Platform Support: Compatible with Windows, Linux, or Android for HMI (Human-Machine Interface) customization.
| Display Specifications | |
| Display | 17.3″ Capacitive Touch LCD Monitor |
| Model Name | AXD-17OPEXT3 |
| Active Display Area (mm) | 385.09 (H)x218.01(V) |
| Pixel Pitch (mm) | 0.1989 x 0.1989 |
| Resolution (Pixel) | WSXGA (1920X1080) |
| Brightness (CD/m^2) | 400cd/m^2 |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 23.4 W typical, normal operation |
| Touch Screen | Pro-Capacitive Touch( Multi-touch) |
| OSD Control | On the back side |

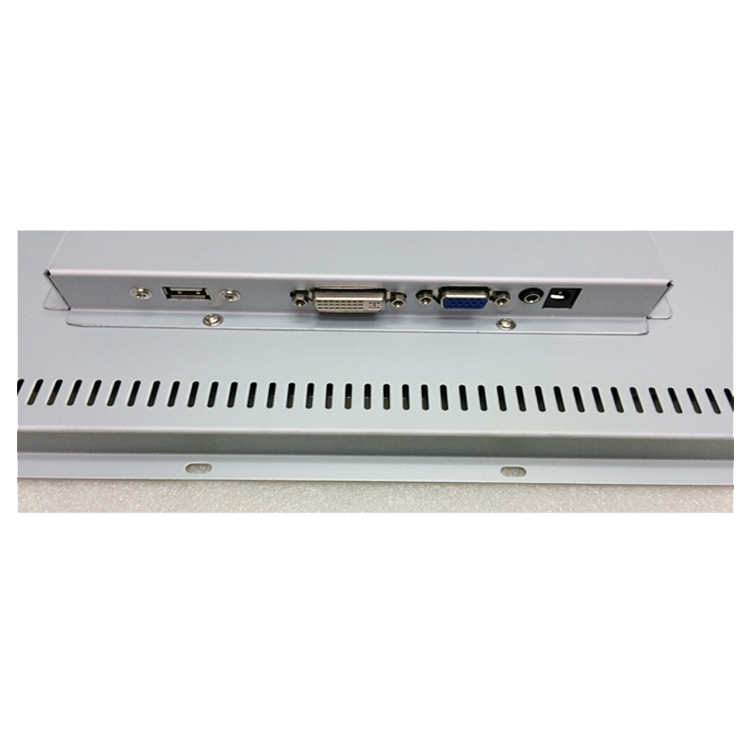

| I/O Connectors | 1x12v,1XVGA,DVI-D,HD |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel metal housing |
| Dimensions | 428.0x 265.0x 42.0(mm) |

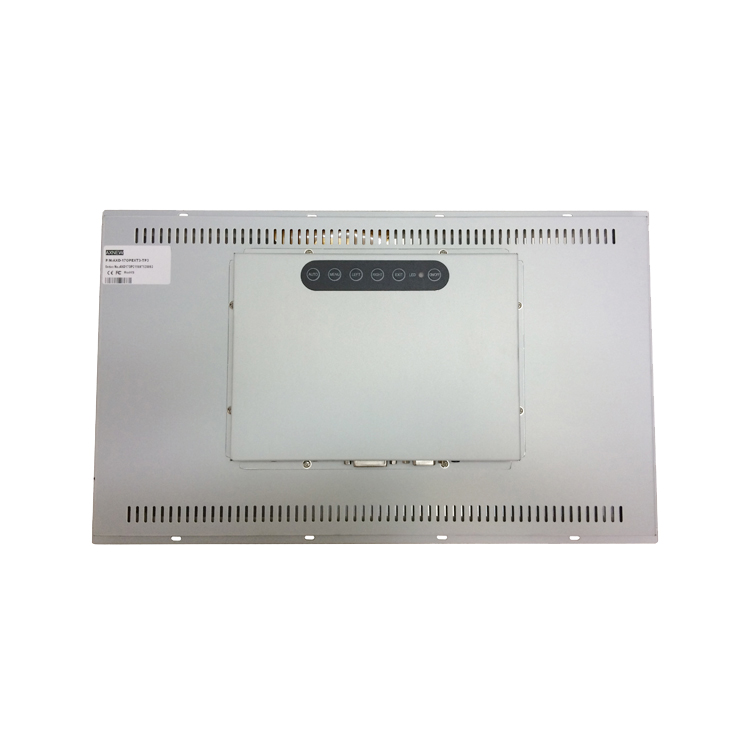

| Mounting | Embedded ,fixing holes on the back frame |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -10~60ºC |
| Storage Temperature | -20~70ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 17.3″ Open Frame capacitive Touch lcd FHD monitor |
