The 15-inch multi-touch all-in-one machine is a practical interactive device. With a screen size of approximately 15 inches, it adopts capacitive touch screen technology and supports multi-touch operations. It usually features a high-definition display with clear images and vivid colors. Equipped with a high-performance processor, the device runs smoothly. It has rich interfaces and can connect to various external devices.
Widely used in fields such as education, commercial display, and industrial control, it enhances user experience, improves work efficiency, and brings more convenience to people’s lives and work.
Technical Parameter
| Display | 15″ Color TFT Panelmount IP65 touchscreen Monitor |
| Model Name | AXD-15OPPC2-A11 |
| Active Display Area (mm) | 305.7(H)x229.7(V) |
| Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) |
| Resolution (Pixel) | 1024X768 |
| Brightness (CD/m^2) | 350cd/m^2 |
| Contrast Ratio | 800:1 |
| Viewing Angle (CR >=10) | 176/176 |
| Power consumption | 10.3 W typical, normal operation |
| Touch Screen | |
| Type | capacitive touchscreen USB |
| Durability | 50 Million multi touches |
| OSD Control | On the back side |

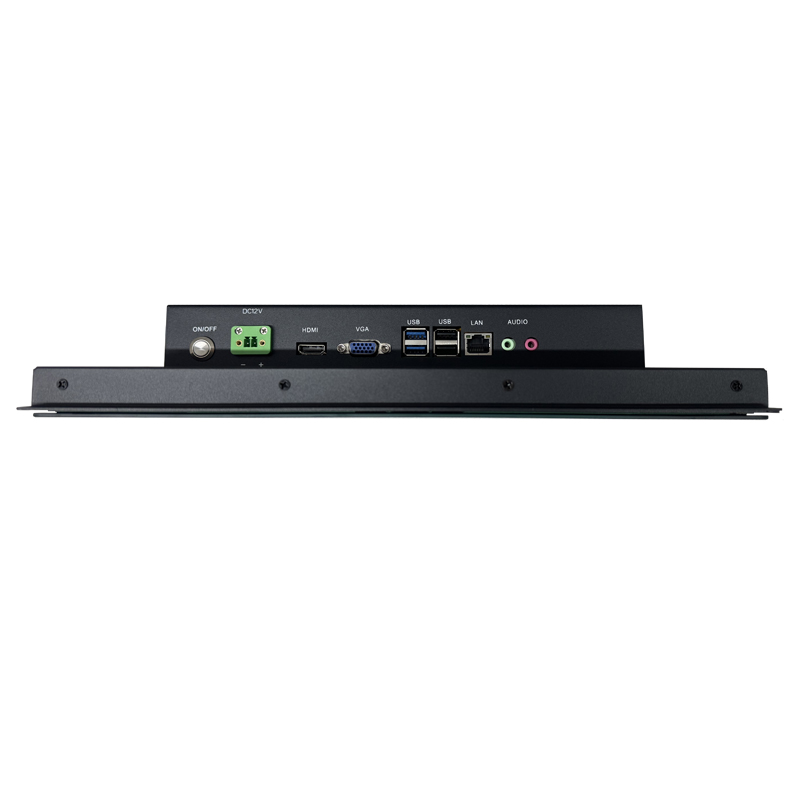

| I/O Connectors | 1x12v,1XVGA, |
| Power Input | 3PIN 24V DC connector |
| Mechanical Specifications | |
| Construction | Aluminum Frame with rugged powered housing |
| Dimensions | 376.1mmx 300.0mmx50.0mm |
| Mounting | Up-down, Left-right panelmount screws fixing holes ,VESA 75×75(100×100) |
| Power source | DC24V ( wide voltage range) |
| Environment Specifications | |
| Operating Temperature | -20~80℃ |
| Storage Temperature | -30~80℃ |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 15” panelmount Monitor 500nits with VGA input with 3 PIN connector |
Packaging & Delivery
| Packing details | 1x 10 inch Open frame Industrial Touch Panel PC ; Packed in 5 piece/carton with protection foam Optional accessories:1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. New and Industrial A grade perfect panels , with super viewing angle, high brightness up to 500nits.
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. Industrial motherboard with high speed supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA USB RS232 RS 485 interfaces
6. 15 inch open frame resistive touch is new and popular touch technology for Medical industry , Automatic equipments ,industrial controls etc
