| Display Specifications | |

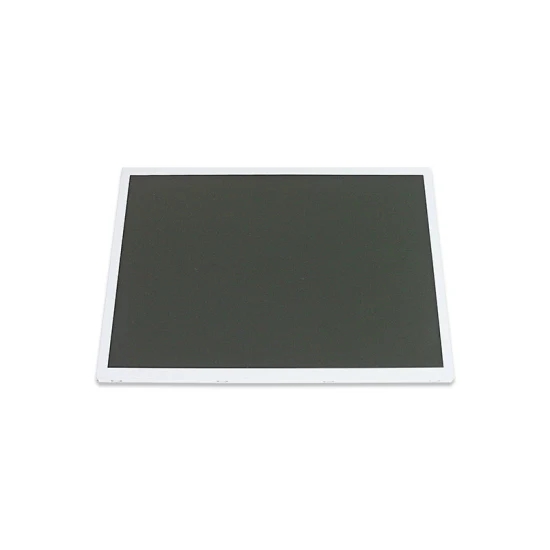

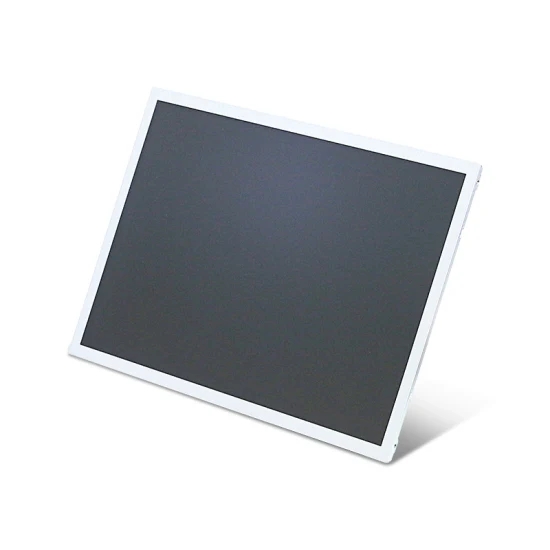

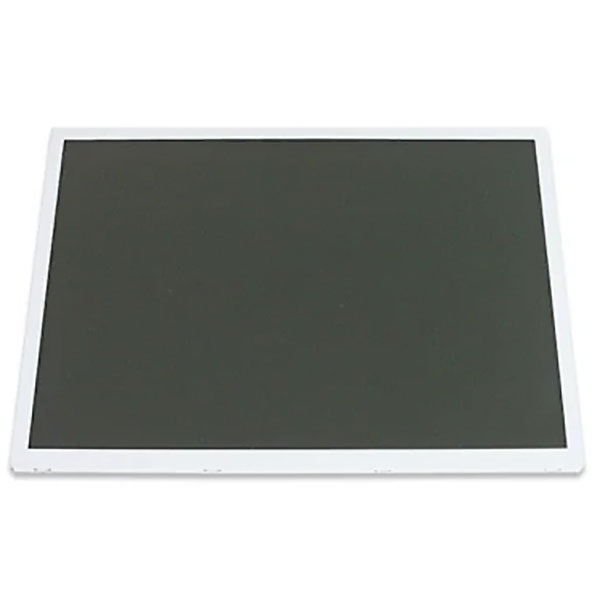

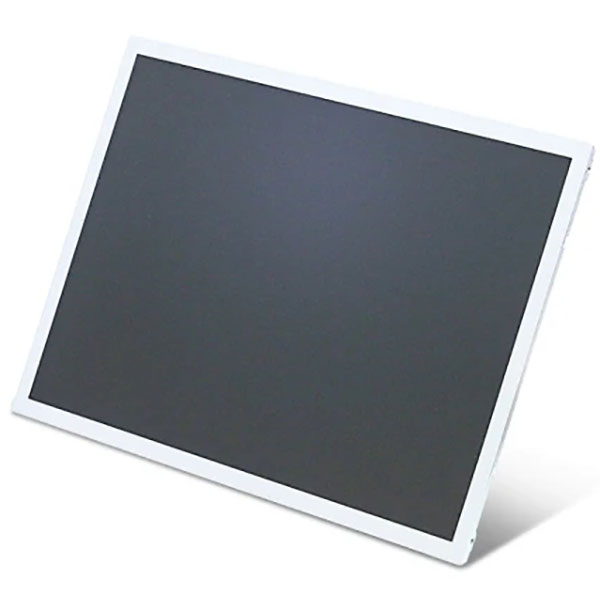

| Display | 15″ Color TFT Open frame LCD with 180° privacy film |
| Model Name | AXD-15OPN1P1-VH4 |
| Active Display Area (mm) | 304.1(H)x304.1(V) |
| Pixel Pitch (mm) | 0.297(H)x0.297(V) |
| Resolution (Pixel) | XGA (1024X768) 262K/16.2M Color |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 19.6 W typical, normal operation |
| Touch Screen | NO touch , if need ,please order |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel Metal chassis & Black Color |
| Dimensions | 326.5 x 253.5x 12.0 (mm) |
| Mounting | m3 X4 on sides |
| Power source | AC 100~240V/ 12V DC adapter |
| Environment Specifications | |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~85ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
Features and Advantages
1. New and Industrial A grade perfect panels with 1024X768 high resolution
2. industrial control board supports the displays working 24×7 days
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. Open frame with resistive design to protect the LCD screen
5. 1000nits super high brightness
6. VGA DVI interfaces ; Capacitive touch with USB interface for optional choice.
7.15 inch open frame capacitive touch LCD with anti-vandal glass, privacy filter option for application control industrial terminals, Financial devices etc
