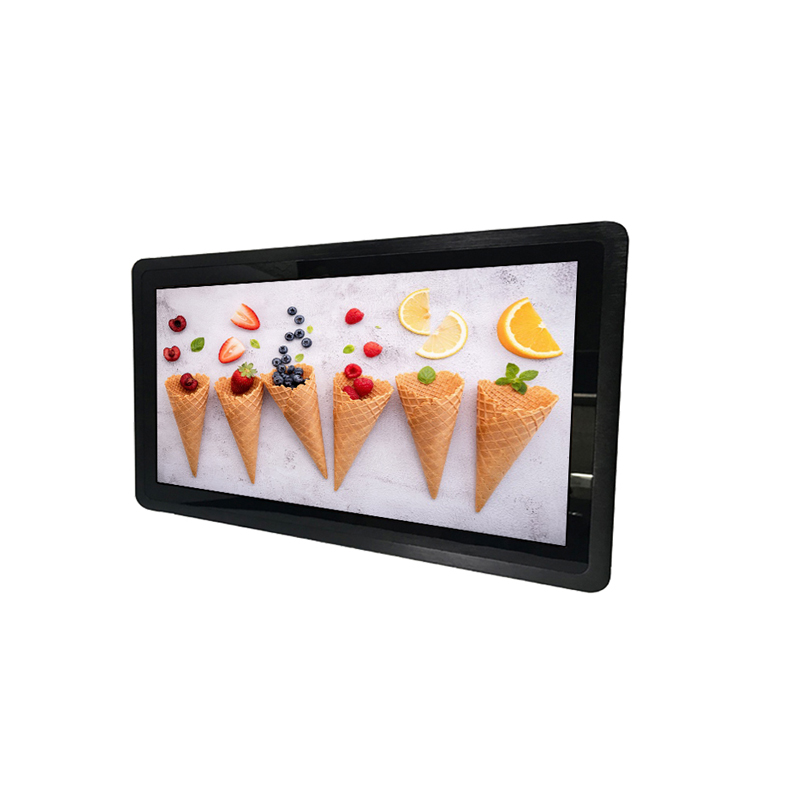

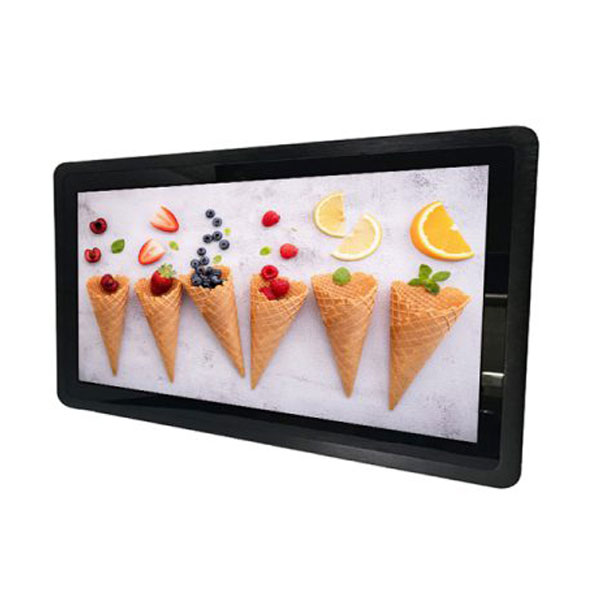

15.6 Inch I7 Qm170 6700u Capacitive Touch Industrial Panel PC

Brand :

Model NO: AXD-156PPC-V5

Screen Size: 15.6 Inch

Display Resolution(pixel): 1920X1080

Contrast Ratio:700:1

Brightness (CD/m^2): 400cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Panel PC information
Model Number AXD-156PPC-V5
15.6” Industrial touch panel pc
Case/Bezel Color Alumium sealing bezel and Black powered housing
TFT Type Industrial LCD with LED backlight
Aspect ratio 16:9
Touch Panel Capacitive touch Flat Screen
Touch response time 8ms (typical)
Optimal (native) Resolution 1920X1080
LCD panel Pixel pitch 0.264 x 0.264 mm
LCD panel Colors 16.7 million
LCD panel Brightness 400 cd/m2
LCD panel Response Time 8ms
Contrast Ratio 700:1
Viewing Angle ( Wide )
Horizontal (left/right) ±80° or 160° total
Vertical (up/down) 60°(up), 80°(down) or 160° total
CPU Intel® I7 6700

Processor; DDR3 800MHz SDRAM

storage 128G SSD
Serial Ports 2x COM ports (1x RS-232/422/485 by-pin connector)
USB Ports 4x USB external ports ; 6 six USB internal ports
LAN 1x LAN RJ-45 connector; could be two for options
Net 1 x Realtek RTL8111C Gigabit Ethernet controller
DC Power In 1 x DC Jack 2.5
Video Port 1 x HDMI
Watch Dog Timer 1~255 levels reset
Internal Sockets & Connectors 1 x Compact Flash socket (reserved for OEM project)
Power Specification DC 12V-24V
Working Environment
Temperature Operating: -10°C to 70°C ;Storage -20°C to 70°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Shock Operating 16G, 11ms & Non-operating 4G, 20ms (with
Dimensions
Mounting Type Embedded Installation
Mechanical dimensions 397 x 252.0 x 62mm
Weight (Net) 6kgs/ piece
Drawings Please contact us for details



Features and Advantages

1. New and A grade lcd panel with other components on stable supply

2. projected capacitive  touchscreen makes the touch sense perfectly

3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment

4. Professional and industrial hardware and parts to guarantee its working normally in rough environment

5. Mounting holes on base bottom for tabletop security;Removable base and VESA mounting option

6. 15.6 Capacitive touch panel pc hardware for industrial terminals, Automatic applications, KIOSKs etc.
