The 13.3-inch embedded open frame touch panel PC with a resolution of 1280X800 usually features compactness, portability, and high integration. It has a wide range of applications and is suitable for business office work, education and training, home entertainment, digital signage, as well as professional equipment in the fields of industry and healthcare.
| Model Number | AXD-13OPIPPC-VI5 |
| 13” Open Frame touch monitor | |
| Case/Bezel Color | Silver |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 16:10 |
| Touch Panel | Industrial PCAP Flat Screen |
| Touch response time | 8ms (typical) |
| Optimal (native) Resolution | 1280X800 |
| LCD panel Pixel pitch | 0.297 x 0.297 mm |
| LCD panel Colors | 16.7 million |
| LCD panel Brightness | 350 cd/m2 |
| LCD panel Response Time | 5ms |
| Contrast Ratio | 800:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±80° or 160° total |
| Vertical (up/down) | 70°(up), 70°(down) or 140° total |

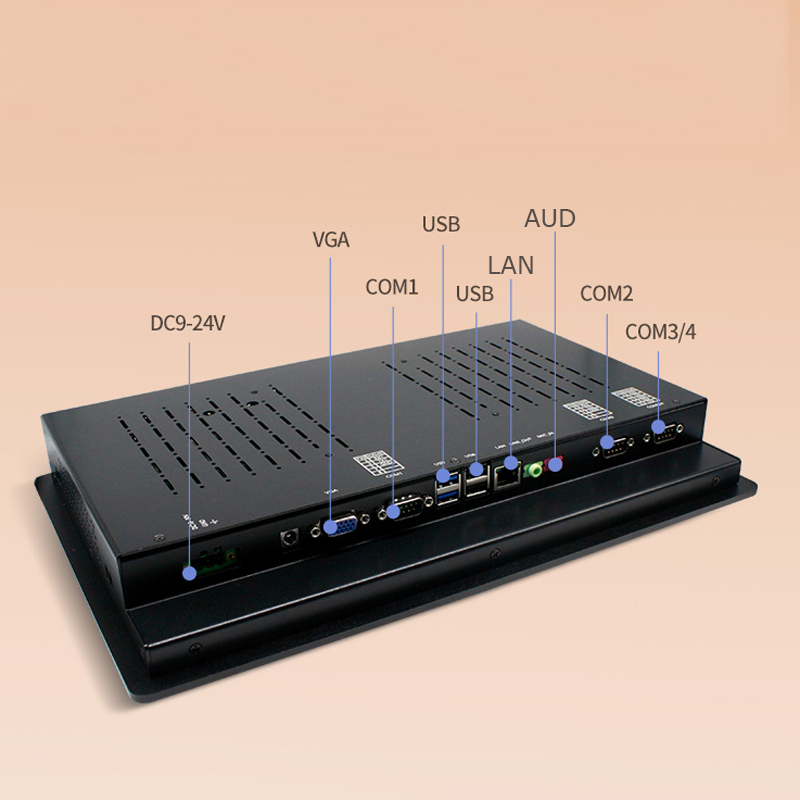

| Multiple controller board | VGA,HD Signal inputs |
| Touch type | Pro-capacitive touch with cover glass |
| Touch Connector | USB A-B port |
| Touch life | Over 500 Million touch |
| 1 x LAN RJ-45 connector | |
| DC Power In | 1 x DC2.1 connector |
| Power Specification | DC 12V 4A |
| Working Environment | |
| Temperature | Operating: -10°C to 60°C ;Storage -20°C to 65°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Dimensions | |
| Mounting Type | Embedded Installation,wall mounting |
| Mechanical dimensions | 339.0 x 225 x 43.0 mm |
| Weight (Net) | 3.5 kgs/ piece, 1 piece/ carton |
| Drawings | Please contact us for details |
Packaging & Delivery
| Packing details | 1x 13.3 inch Open Frame touch monitor ; Packed in 5 piece/carton with protection foam Optional accessories:1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
