12.1 Inch 800X600 Industrial Touch Panel PC J1900 Fanless DC 24V

Brand :

Model NO: AXD-12PPC-V4C2

Screen Size: 12.1 Inch

Display Resolution(pixel): 800X600

Contrast Ratio:500:1

Brightness (CD/m^2): 400cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc


Panel PC information
Model Number AXD-12PPC-V4C2
12.1” Industrial panel Touch pc
Case/Bezel Color Black
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Useful Screen Area 245.76 mm x 184.32mm
Touch Panel Industrial Flat Projected capacitive touch
Touch response time 10ms (typical)
Touch PC Dimensions 315.6x 254.6×64.3mm
Optimal (native) Resolution 800×600;
LCD panel Pixel pitch 0.294 x 0.294 mm
LCD panel Colors 16.2 million
LCD panel Brightness 400 cd/m2
LCD panel Response Time 25 ms
Contrast Ratio 500:1
Viewing Angle ( Wide )
Horizontal (left/right) ±70° or 140° total
Vertical (up/down) 60°(up), 60°(down) or 120° total
Output Interface DC*1;HDMI*1;Audio*2;RS232(COM)*2;etc
Input Interface USB*4.can extended to 6 six
Net Internet LAN; 2x RJ45
Watch Dog Technology Support
Power Specification External AC to DC power brick
PC input: +12VDC ±5%,3.0 A; DC 3PIN screw connector,could support 24V
AC to DC power brick input: 100-240 VAC, 50/60 Hz
Power dissipation: 22W max
ECM (Embed Computer Module) Intel® J1900(2.0 GHz )

SSD: 64G ;Rom:4G(DDR3,max8G);

Operation System:Win10/8/7;Vista;Linux

Temperature Operating: -10°C to 70°C ;Storage -20°C to 80°C
Humidity (non condensing) Operating: 20%-90%; Storage: 10%-95%
Shipping Carton Dimensions one piece/ per carton
Weight (approx.) Actual: 5kg ;Shipping: 7 kg

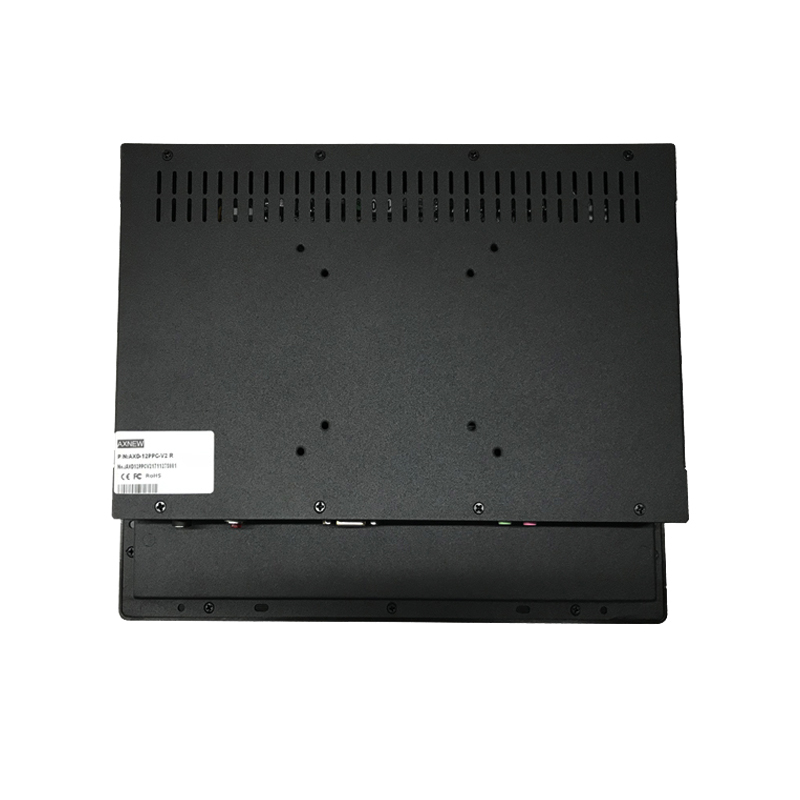

Holes fixings Vesa mounting 100×100; fixing button
Mechanical dimensions 309.1mmx 247.5mmx50.0mm
Drawings Please contact us for details


Features and Advantages

1. 12 inch industial grade panel with capacitive touch , built with pc

2. Adopted pro-jected capacitive touchscreen with eeti chipset makes the touch sense perfectly without interferrence.

3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment, pass cooled with low consumption.less than 22 Walt.

4. Professional and industrial hardware and parts to guarantee its working normally in rough environment

5. Mounting holes on base bottom for tabletop security, VESA mounting and clamps mount option

6. 12.1”industrial capacitive Touch pc hardware for Industrial automatic, Gaming, industrial devices, automatic vending machines.
