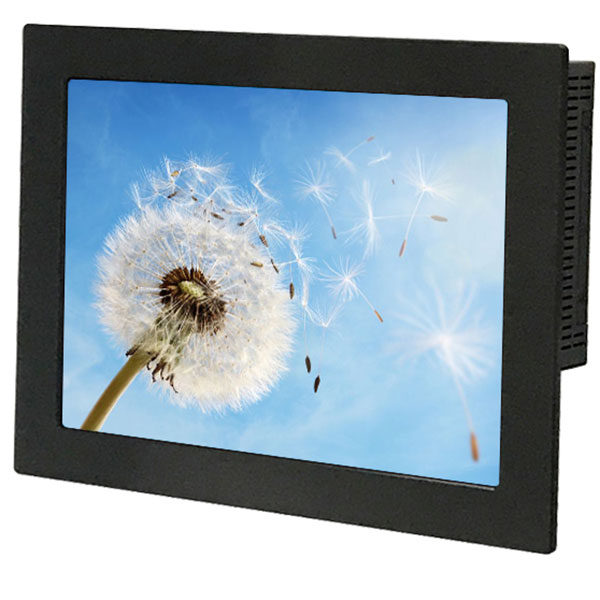

| Panel PC information | |
| Model Number | AXD-12PPC-V2 |
| 12.1’’ Touch pc | |
| Case/Bezel Color | Black |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 4:3 |
| Useful Screen Area | 245.76 mm x 184.32mm |
| Touch Panel | Industrial Resistive Flat Screen |
| Touch response time | 10ms (typical) |
| Touch PC Dimensions | 309.1x 247.5 x50.0 mm |
| Optimal (native) Resolution | 800×600; 1024×768 |
| LCD panel Pixel pitch | 0.296 x 0.296 mm |
| LCD panel Colors | 262K/16.2 million |
| LCD panel Brightness | 400 cd/m2 |
| LCD panel Response Time | 25 ms |
| Contrast Ratio | 500:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±80° or 160° total |
| Vertical (up/down) | 80°(up), 80°(down) or 160° total |
| Output Interface | DC*1;HDMI*1;Audio*2;RS232(COM)*2;etc |
| Input Interface | USB*2.can extend |
| Net | Internet LAN |
| Watch Dog Technology | Support |
| Power Specification | External AC to DC power brick |
| Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5￠) | |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | |
| Power dissipation: 36W max | |
| ECM (Embed Computer Module) | Intel® processor D2550 (1.8GHz + NM10 Chipset)
SSD: 8G;Rom:1G(DDR3,max6G); Operation System:Win10/8/7;Xp;Vista;Linux |
| Temperature | Operating: -10°C to 70°C ;Storage -20°C to 80°C |
| Humidity (non condensing) | Operating: 20%-90%; Storage: 10%-95% |
| Shipping Carton Dimensions | one piece/ per carton |
| Weight (approx.) | Actual: 5kg ;Shipping: 7 kg |
| Dimensions | |
| Holes fixings | Vesa mounting 100×100; fixing button |
| Mechanical dimensions | 309.1mmx 247.5mmx50.0mm |
| Drawings | Please contact us for details |
