| Description | Model NO: AXD-15PPC-V7A
Screen Size: 15 Inch
Display Resolution(pixel): 1024x768
Contrast Ratio:700:1
Brightness (CD/m^2): 500cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc | Model NO: AXD-13OPPC-VI3
Screen Size: 13.3 Inch
Display Resolution(pixel): 1280x800
Contrast Ratio:500:1
Brightness (CD/m^2): 400cd/m^2
Touch type: PCAP/Resistive touch screen
Application: Kiosks,Industrial machines,Automation,etc | Screen Size: 10.4 inch
Display Resolution(pixel):800x600;1024x768
Contrast Ratio:600:1
Brightness (CD/m^2):400
Touch type: Resistive
Application: Kiosks, Industrial machines, Automation ,etc
Minimum Order Quantity: 5 Pieces
Price:Depends on product and order quantity
Packaging Details: 5 Pcs /Carton with firm foam
Delivery Time: 10 working days for production order | Screen Size: 12.1inch
Display Resolution(pixel):800x600
Contrast Ratio:600:1
Brightness (CD/m^2):500
Touch type: Resistive
Application: Kiosks, Industrial machines, Automation ,etc
Minimum Order Quantity: 3 Pieces
Price:Depends on product and order quantity
Packaging Details: 3 Pcs /Carton with firm foam
Delivery Time: 15working days for production order | Model NO: AXD-07OPIPPC-V2
Screen Size: 7 Inch
Display Resolution(pixel): 800X480
Contrast Ratio:500:1
Brightness (CD/m^2): 300cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc | Model NO: AXD-15PPC-A3
Screen Size: 15 Inch
Display Resolution(pixel): 1024x768
Contrast Ratio:700:1
Brightness (CD/m^2): 500cd/m^2
Touch type: Resistive/Capacitive Touch screen
Application: Kiosks,Industrial machines,Automation,etc |
| Content |
| Panel PC information |
|
| Model Number |
AXD-15PPC-V7A |
| 15.0'' Industrial touch panel pc |
| Case/Bezel Color |
Black |
| TFT Type |
Industrial LCD with LED backlight |
| Aspect ratio |
4:3 |
| Touch Panel |
5 wire industrial resisitive Flat Screen |
| Touch response time |
8ms (typical) |
| Optimal (native) Resolution |
1024x768 |
| LCD panel Pixel pitch |
0.264 x 0.264 mm |
| LCD panel Colors |
16.7 million |
| LCD panel Brightness |
500 cd/m2 |
| LCD panel Response Time |
8ms |
| Contrast Ratio |
700:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±80° or 160° total |
| Vertical (up/down) |
60°(up), 80°(down) or 160° total |
| CPU |
Soldered onboard Intel® I5 2.00GHz
Processor; DDR3 800MHz SDRAM |
| storage |
64G SSD |
| Serial Ports |
2x COM ports (1x RS-232/422/485 by-pin connector) |
| USB Ports |
4x USB external ports ; 6 six USB internal ports |
| LAN |
1x LAN RJ-45 connector; could be two for options |
| Net |
1 x Realtek RTL8111C Gigabit Ethernet controller |
| DC Power In |
1 x DC Jack 2.5 |
| Video Port |
1 x HDMI |
| Watch Dog Timer |
1~255 levels reset |
| Internal Sockets & Connectors |
1 x Compact Flash socket (reserved for OEM project) |
| Power Specification |
DC 12V;DC8-40V |
| Working Environment |
| Temperature |
Operating: -10°C to 60°C ;Storage -20°C to 70°C |
| Operating Humidity |
5 ~ 90% RH @40°C (non-condensing |
| Vibration |
5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Shock |
Operating 16G, 11ms & Non-operating 4G, 20ms (with |
| Dimensions |
| Mounting Type |
Embedded Installation |
| Mechanical dimensions |
376 x 300.0 x 50 mm |
| Weight (Net) |
5.5 kgs/ piece |
| Drawings |
Please contact us for details |
 |
| Model Number |
AXD-13OPPC-VI3 |

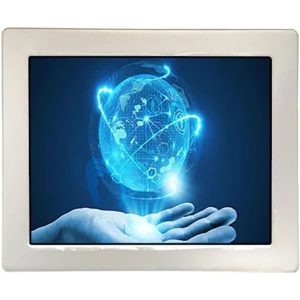

| 13'' Open Frame built panel pc |
| Case/Bezel Color |
white |
| TFT Type |
Industrial LCD with LED backlight |
| Aspect ratio |
4:3 |
| Touch Panel |
Industrial PCAP /Resistive Flat Screen |
| Touch response time |
8ms (typical) |
| Optimal (native) Resolution |
1280X800 |
| LCD panel Pixel pitch |
0.297 x 0.297 mm |
| LCD panel Colors |
16.7 million |
| LCD panel Brightness |
400 cd/m2 |
| LCD panel Response Time |
5ms |
| Contrast Ratio |
500:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±70° or 140° total |
| Vertical (up/down) |
70°(up), 70°(down) or 140° total |
| CPU |
Intel® Processor I3 (1.8GHz) |
| storage |
2G RAM;SSD 16G/32G Options |
| Serial Ports |
2 x COM ;RS232/RS485 |
| USB Ports |
2x USB V2.0; 2xUSB V3.0 |
| LAN |
1 x LAN RJ-45 connector |
| DC Power In |
1 x DC2.5 connector |
| Video Port |
1X Line-out |
| Other Ports |
1x LAN, 1X VGA ,1xHDMI,1X Audio |
| Internal Sockets & Connectors |
reserved for OEM project |
| Power Specification |
DC 12V |
| Working Environment |
| Temperature |
Operating: -10°C to 60°C ;Storage -20°C to 65°C |
| Operating Humidity |
5 ~ 90% RH @40°C (non-condensing |
| Vibration |
5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Dimensions |
| Mounting Type |
Embedded Installation,wall mounting |
| Mechanical dimensions |
339.0 x 225 x 47.0 mm |
| Weight (Net) |
3.5 kgs/ piece, 1 piece/ carton |
| Drawings |
Please contact us for details |
Packaging & Delivery
| Packing details |
1x 13 inch Open frame Industrial Touch Panel PC ;
Packed in 5 piece/carton with protection foam
Optional accessories:1x Power supply cable, 1x power adapter |
| Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. It's the latest evolution of Mini-ITX form factor industrial Motherboard with Dual GBE Lan.
2. It is based on Intel Celeron 3217U+HM76 chipset.Provide 2 Mini-PCIE and 1 Sim Slot to support Wifi/GPS/3G/
MSATA
3. 1 SODIMM slot,Supports up to 8GB, SATA (1 Sata 3.0, 2x Sata 2.0)and MSATA storage modes.
4. It supports 1080P HD and independent Dual view, 1 HDMI and 1 VGA . Dual Channel 24bit LVDS.
 |
| Panel PC information |
|
| Model Number |
AXD-10PPC-V3A |
| 10.4’’ Industrial touch panel pc |
| Case/Bezel Color |
Black |
| TFT Type |
Industrial LCD with LED backlight |
| Aspect ratio |
4:3 |
| Touch Panel |
capacitive touch panel |
| Touch response time |
8ms (typical) |
| Optimal (native) Resolution |
800X600 |
| LCD panel Pixel pitch |
0.264 x 0.264 mm |
| LCD panel Colors |
16.2 million |
| LCD panel Brightness |
400 cd/m2 |
| LCD panel Response Time |
8ms |
| Contrast Ratio |
500:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±70° or 140° total |
| Vertical (up/down) |
60°(up), 70°(down) or 130° total |
| CPU |
Soldered onboard Intel® Celeron J1900 2.0GHz
Processor; DDR3 800MHz SDRAM |
| storage |
64G SSD |
| Serial Ports |
2x COM ports could be installed if needed. |
| USB Ports |
4x USB external ports ; 6 six USB internal ports |
| LAN |
1x LAN RJ-45 connector; could be two for options |
| Net |
1 x Realtek RTL8111C Gigabit Ethernet controller |
| DC Power In |
1 x DC Jack 2.5 |
| Video Port |
1 x HDMI |
| Watch Dog Timer |
1~255 levels reset |
| Internal Sockets & Connectors |
1 x Compact Flash socket (reserved for OEM project) |
| Power Specification |
DC 12V;DC8-40V for options |
| Working Environment |
| Temperature |
Operating: -10°C to 60°C ;Storage -20°C to 70°C |
| Operating Humidity |
5 ~ 90% RH @40°C (non-condensing |
| Vibration |
5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Shock |
Operating 16G, 11ms & Non-operating 4G, 20ms (with |
| Dimensions |
| Mounting Type |
Embedded Installation |
| Weight (Net) |
5.0 kgs/ piece |
| Drawings |
Please contact us for details |
Features and Advantages
1. Fanless passive cooled mainboard with low consumption
2. 4G RAM, 64G SSD for memory
3. Capacitive touchscreen makes the touch sense perfectly
4. Mounting holes on base bottom for tabletop security; VESA mounting on the backside
5. 10.4’’industrial Touch pc hardware for industrial terminals, Automatic applications, KIOSKs etc.
|
| Panel PC information |
|
| Model Number |
AXD-12PPC-V3 |
| 12.1’’ Industrial panel Touch pc |
| Case/Bezel Color |
Black |
| TFT Type |
Industrial LCD with LED backlight |
| Aspect ratio |
4:3 |
| Useful Screen Area |
245.76 mm x 184.32mm |
| Touch Panel |
Industrial 5 wire Resistive Flat Screen |
| Touch response time |
10ms (typical) |
| Touch PC Dimensions |
309.1x 247.5 x50.0 mm |
| Optimal (native) Resolution |
1024x768 |
| LCD panel Pixel pitch |
0.294 x 0.294 mm |
| LCD panel Colors |
16.2 million |
| LCD panel Brightness |
500 cd/m2 |
| LCD panel Response Time |
25 ms |
| Contrast Ratio |
700:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±80° or 160° total |
| Vertical (up/down) |
80°(up), 80°(down) or 160° total |
| Output Interface |
DC*1;HDMI*1;Audio*2;RS232(COM)*2;etc |
| Input Interface |
USB*2.can extend |
| Net |
Internet LAN |
| Watch Dog Technology |
Support |
| Power Specification |
External AC to DC power brick |
| Monitor input: +12VDC ±5%,3.0 A; DC Jack (2.5) |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz |
| Power dissipation: 36W max |
| ECM (Embed Computer Module) |
Intel® J1900 (2.0 GHz )
SSD: 32G ;Rom:4G(DDR3,max6G);
Operation System:Win10/8/7;Xp;Vista;Linux |
| Temperature |
Operating: -10°C to 70°C ;Storage -20°C to 80°C |
| Humidity (non condensing) |
Operating: 20%-90%; Storage: 10%-95% |
| Shipping Carton Dimensions |
one piece/ per carton |
| Weight (approx.) |
Actual: 5kg ;Shipping: 7 kg |
| Dimensions |
| Holes fixings |
Vesa mounting 100x100; fixing button |
| Mechanical dimensions |
309.1mmx 247.5mmx50.0mm |
| Drawings |
Please contact us for details |
Features and Advantages
1. New and A grade lcd panel with other components on stable supply
2. Resistive touchscreen makes the touch sense perfectly
3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. Mounting holes on base bottom for tabletop security;Removable base and VESA mounting option
6. 12.1’’resistive Touch pc hardware for POS, Gaming, Hotel ,Restaurant terminals, KIOSK etc.
 |
| Panel PC information |
|
| Model Number |
AXD-07OPIPPC-V2 |
| 7.0'' Touch panel pc |
| Case/Bezel Color |
Black/ Aluminum front bezel |
| TFT Type |
Industrial LCD with LED backlight |
| Aspect ratio |
4:3 |
| Touch Panel |
Industrial 4 wire Resistive Flat Screen |
| Touch response time |
10ms (typical) |
| Optimal (native) Resolution |
800 x 480 |
| LCD panel Pixel pitch |
0.264 x 0.264 mm |
| LCD panel Colors |
16.2 million |
| LCD panel Brightness |
300 cd/m2 |
| LCD panel Response Time |
8ms |
| Contrast Ratio |
500:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±70° or 140° total |
| Vertical (up/down) |
70°(up), 70°(down) or 140° total |
| CPU |
ARM9 embedded CPU,,
frequency is 400MHZ |
| storage |
128M DDR2 SDRAM |
| Serial Ports |
4 x COM ports (1x RS-232/422/485 by-pin connector) |
| USB Ports |
2 x USB external ports |
| LAN |
1 x LAN RJ-45 connector/WIFI options |
| NandFlash |
256M Flash |
| DC Power In |
1 x 4-pin connector |
| Extended storage |
32G for SD card |
| Optional interfaces |
CAN/RS485 |
| Power Specification |
DC 9V-24V |
| Working Environment |
| Temperature |
Operating: 0°C to 50°C ;Storage -10°C to 65°C |
| Operating Humidity |
5 ~ 90% RH @40°C (non-condensing |
| Vibration |
5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Dimensions |
| Mounting Type |
Embedded Installation |
| Mechanical dimensions |
134x205 x 28.6 mm |
| Weight (Net) |
11kgs/ piece |
| Drawings |
Please contact us for details |
Features and Advantages
The 07OPIPPC-V2 is possible to switch between different assignments. It combines a graphic display and touch interface with a high efficiency industrial controller. Coordinating with MCU perfectly through serial port, 07OPIPPC-CE is suitable to industrial control, medical device, test monitoring, intelligent device, smart home, mobile or automotive systems, etc.
Configuration is usually used in man-machine interface, but this pattern is easy to operate and restricted in application. The managed code can be generated in Visual BASIC, C#, VC++. Users can design man-machine interface and transplant it to other ARM operating systems equipped with Microsoft Windows CE Embedded.
 |
| Panel PC information |
|
| Model Number |
AXD-15PPC-A3 |

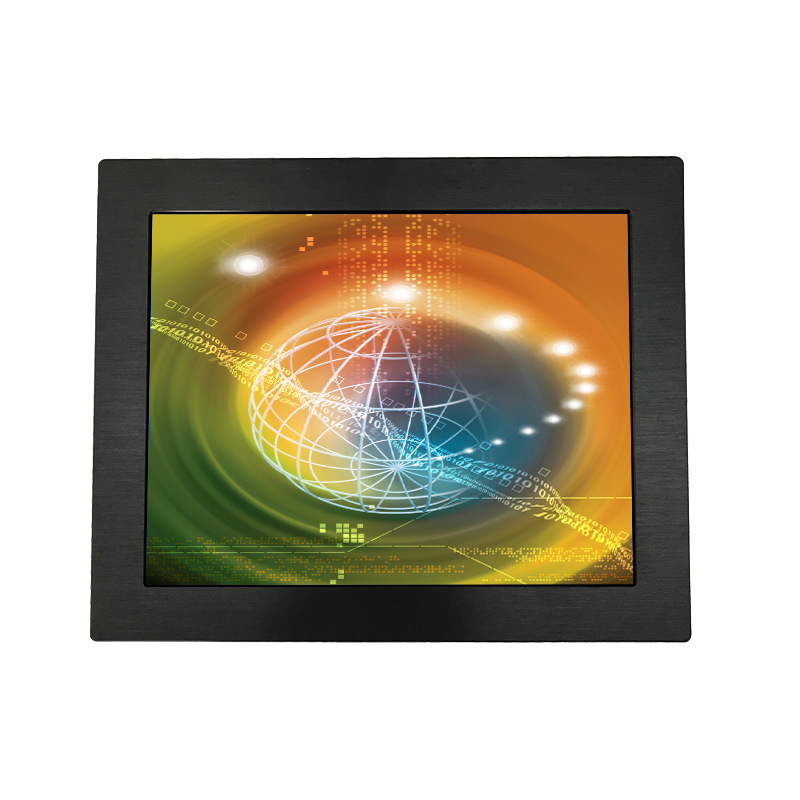

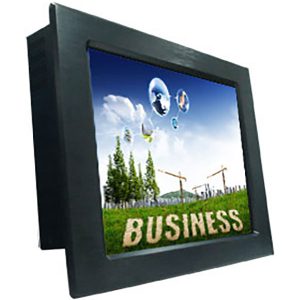

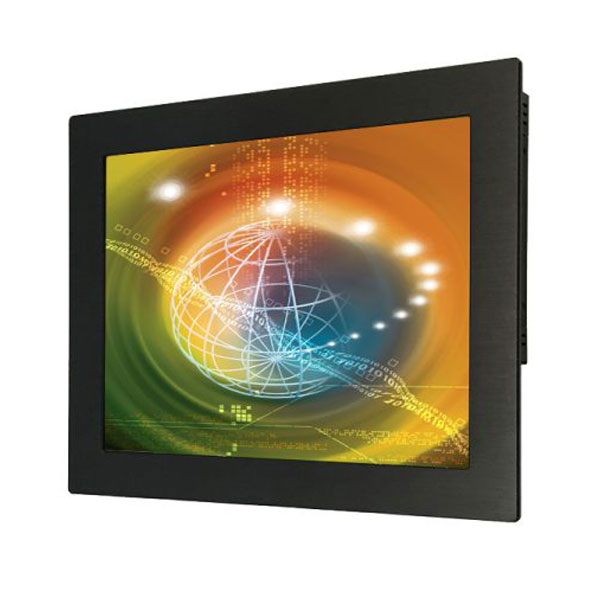

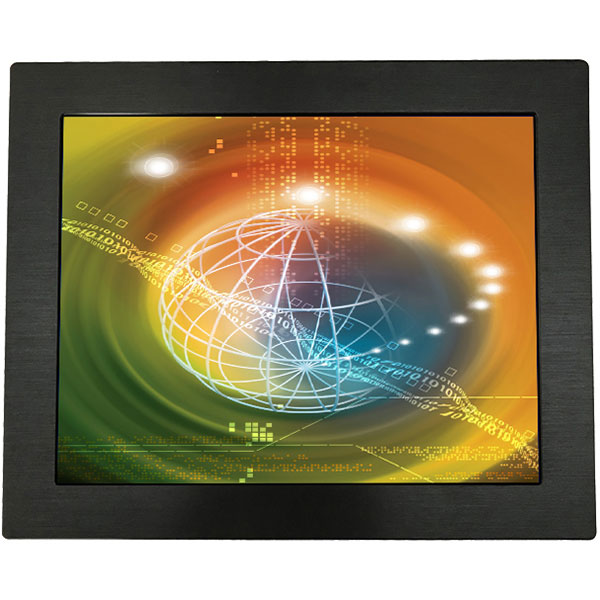

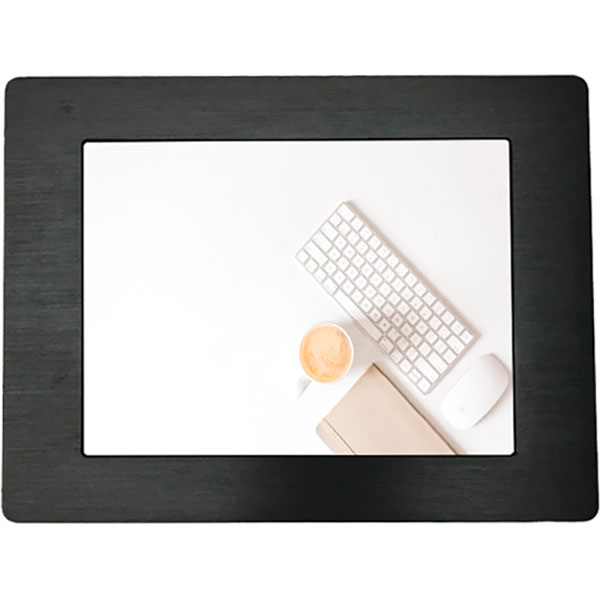

| 15.0'' Industrial touch panel pc |
| Case/Bezel Color |
Black |
| TFT Type |
Industrial LCD with LED backlight |
| Aspect ratio |
4:3 |
| Touch Panel |
5 wire industrial resisitive Flat Screen |
| Touch response time |
8ms (typical) |
| Optimal (native) Resolution |
1024x768 |
| LCD panel Pixel pitch |
0.264 x 0.264 mm |
| LCD panel Colors |
16.7 million |
| LCD panel Brightness |
500 cd/m2 |
| LCD panel Response Time |
8ms |
| Contrast Ratio |
700:1 |
| Viewing Angle ( Wide ) |
|
| Horizontal (left/right) |
±80° or 160° total |
| Vertical (up/down) |
60°(up), 80°(down) or 160° total |
| CPU |
Soldered onboard Intel® I5 3327U 1.8GHz
Processor; DDR3 800MHz SDRAM |
| storage |
64G SSD |

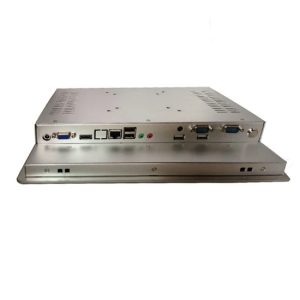

| Serial Ports |
2x COM ports (1x RS-232/422/485 by-pin connector) |
| USB Ports |
4x USB external ports ; 6 six USB internal ports |
| LAN |
1x LAN RJ-45 connector; could be two for options |
| Net |
1 x Realtek RTL8111C Gigabit Ethernet controller |
| DC Power In |
1 x DC Jack 2.5 |
| Video Port |
1 x HDMI |
| Watch Dog Timer |
1~255 levels reset |
| Internal Sockets & Connectors |
1 x Compact Flash socket (reserved for OEM project) |
| Power Specification |
DC 12V |
| Working Environment |
| Temperature |
Operating: -10°C to 60°C ;Storage -20°C to 70°C |
| Operating Humidity |
5 ~ 90% RH @40°C (non-condensing |
| Vibration |
5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Shock |
Operating 16G, 11ms & Non-operating 4G, 20ms (with |
| Dimensions |
| Mounting Type |
Embedded Installation |
| Mechanical dimensions |
376 x 300.0 x 50 mm |
| Weight (Net) |
5.5 kgs/ piece |
| Drawings |
Please contact us for details |
Features and Advantages
1. New and A grade lcd panel with other components on stable supply
2. 5 wire Resistive touchscreen makes the touch sense perfectly
3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment

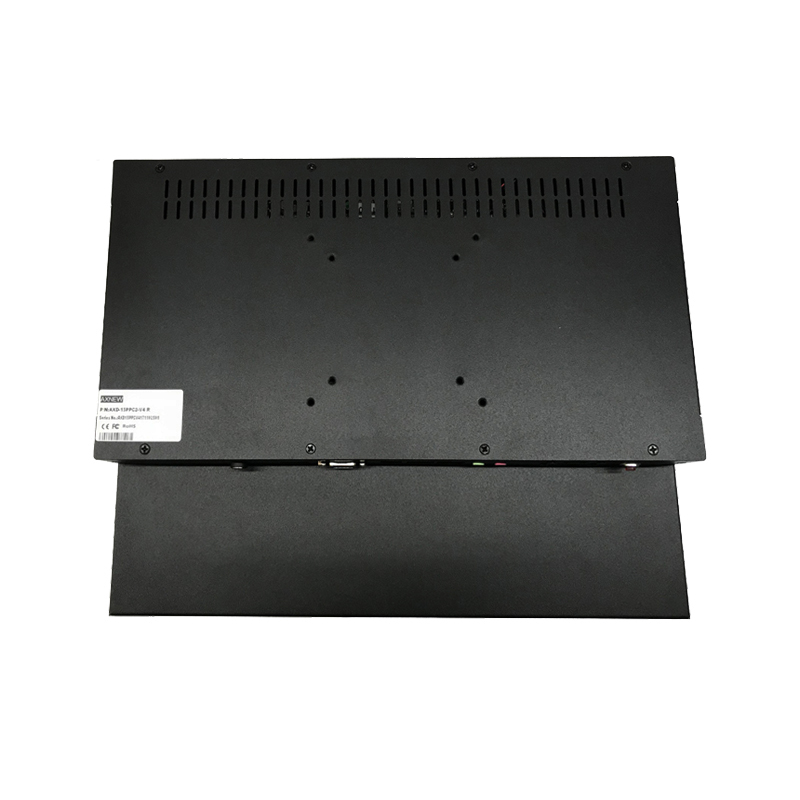

5. Mounting holes on base bottom for tabletop security;Removable base and VESA mounting option
6. 15''resistive Touch pc hardware for industrial terminals, Automatic applications, KIOSKs etc.
|
