| Display Specifications | |
| Display | 21.5″ Color TFT High Brightness touch monitor |
| Model Name | AXD-21OPN1P1-VH3 T1 |
| Active Display Area (mm) | 476.64 (H) x 268.11 (V) |
| Pixel Pitch (mm) | 0.2485 (H) x 0.2485 (V) |
| Resolution (Pixel) | 1920X1080 |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 31.71 W typical, normal operation |
| Touch Screen | 5 Wire Resistive with USB |
| OSD Control | On the back side |

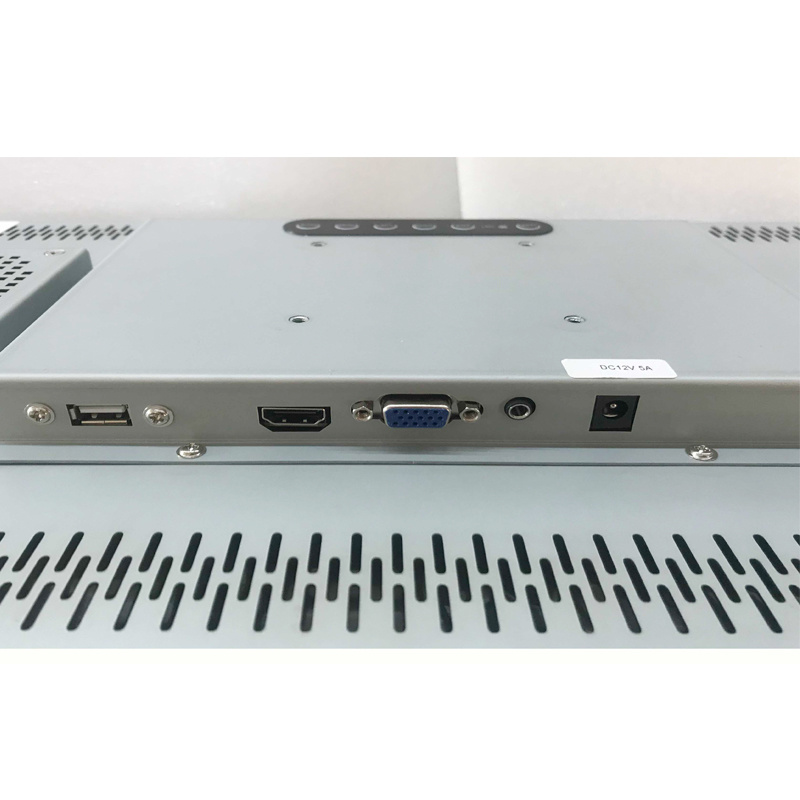

| I/O Connectors | 1x12v,1XVGA,HDMI |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 528.2x 295.2x 42.0(mm) |
| Mounting | U Left-right fixing holes ,VESA 75×75(100×100) |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -5~50ºC |
| Storage Temperature | -20~60ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 21.5″ Resistive High Brightness touch monitor 1000nits with full HD |
