10 Inch 1024X768 Embedded Industrial Touch PC HD Windows Computer

Brand :

Model NO: AXD-10OPPC-VI3

Screen Size: 10.4 Inch

Display Resolution(pixel): 1024×768

Contrast Ratio:600:1

Brightness (CD/m^2): 350cd/m^2

Touch type: Resistive/Capacitive Touch screen

Application: Kiosks,Industrial machines,Automation,etc

Model Number AXD-10OPPC-VI3

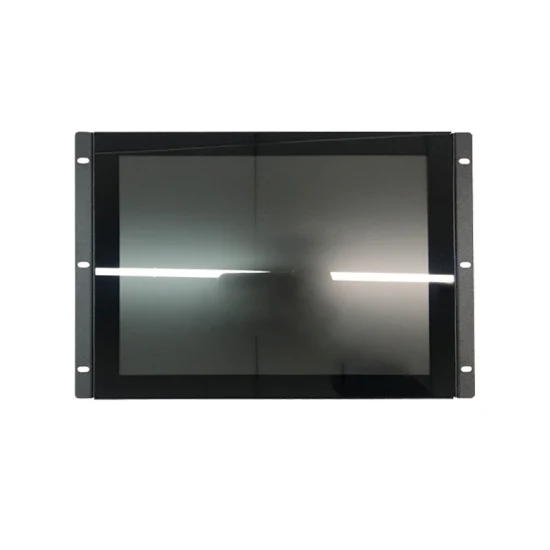

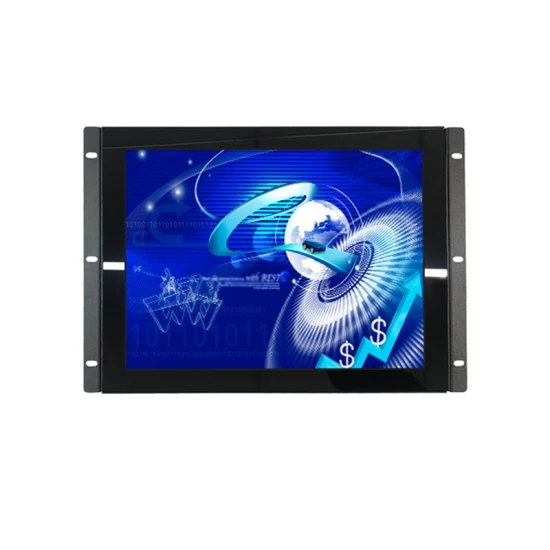

10.4” Open Frame built touch all in one
Case/Bezel Color black
TFT Type Industrial LCD with LED backlight
Aspect ratio 4:3
Touch Panel Industrial PCAP capacitive touch
Touch response time 8ms (typical)
Optimal (native) Resolution 1024X768
LCD panel Pixel pitch 0.264 x 0.264 mm
LCD panel Colors 16.7 million
LCD panel Brightness 350 cd/m2
LCD panel Response Time 5ms
Contrast Ratio 600:1
Viewing Angle ( Wide )
Horizontal (left/right) ±60° or 120° total
Vertical (up/down) 60°(up), 60°(down) or 120° total
CPU Intel® Processor I3 (1.8GHz)
storage 2G RAM;SSD 16G/32G Options

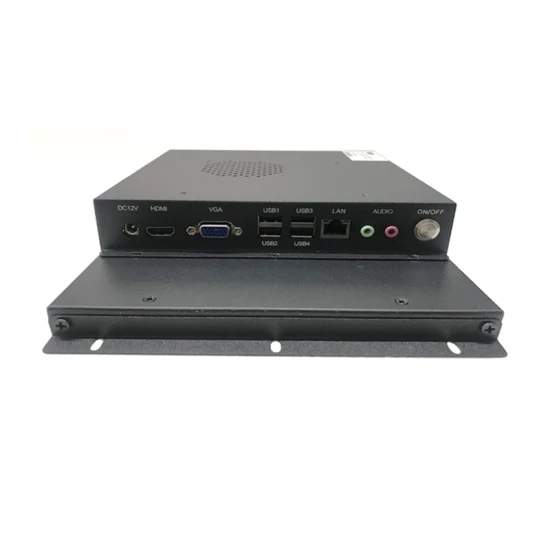

Serial Ports 2 x COM ;RS232/RS485
USB Ports 2x USB V2.0; 2xUSB V3.0
LAN 1 x LAN RJ-45 connector
DC Power In 1 x DC2.5 connector
Video Port 1X Line-out
Other Ports 1x LAN, 1X VGA ,1xHDMI,1X Audio
Internal Sockets & Connectors reserved for OEM project
Power Specification DC 12V
Working Environment
Temperature Operating: -10°C to 60°C ;Storage -20°C to 65°C
Operating Humidity 5 ~ 90% RH @40°C (non-condensing
Vibration 5 ~ 500Hz, 3Grms Random (with CF/SSD)
Dimensions
Mounting Type Embedded Installation,wall mounting
Mechanical dimensions accords with drawings
Weight (Net) 3.5 kgs/ piece, 1 piece/ carton
Drawings Please contact us for details



Packaging & Delivery
Packing details 1x 10 inch Open frame Industrial Touch Panel PC ;

Packed in 5 piece/carton with protection foam

Optional accessories:1x Power supply cable, 1x power adapter

Delivery terms 7- working days for stock products after receiving payments; 15 working days for order production



Features and Advantages

1, 1024×768  of 10.4inch industrial LCD panels with Wide temperature new A grade

2, 4G RAM, 64G SSD for memory

3. capacitive touchscreen with eeti industrial controller make the touch sense perfectly, adjustment the touch software

4. Mounting holes on base bottom for tabletop security; right and left embedded mounting on the sides

5. 10.4”industrial open frame bulit with Touch pc hardware for industrial terminals, Automatic applications, KIOSKs etc.
