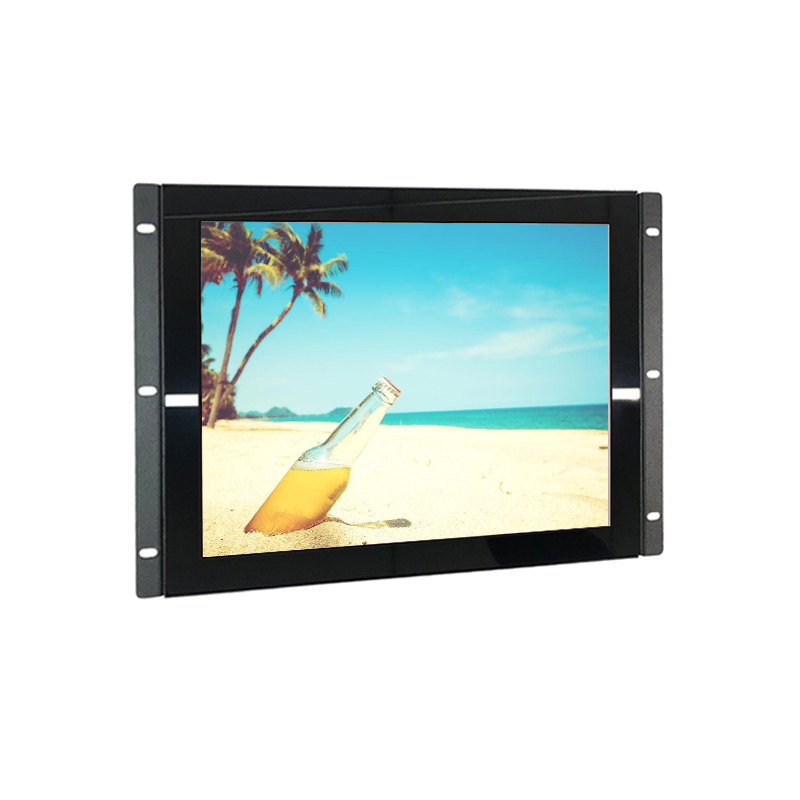

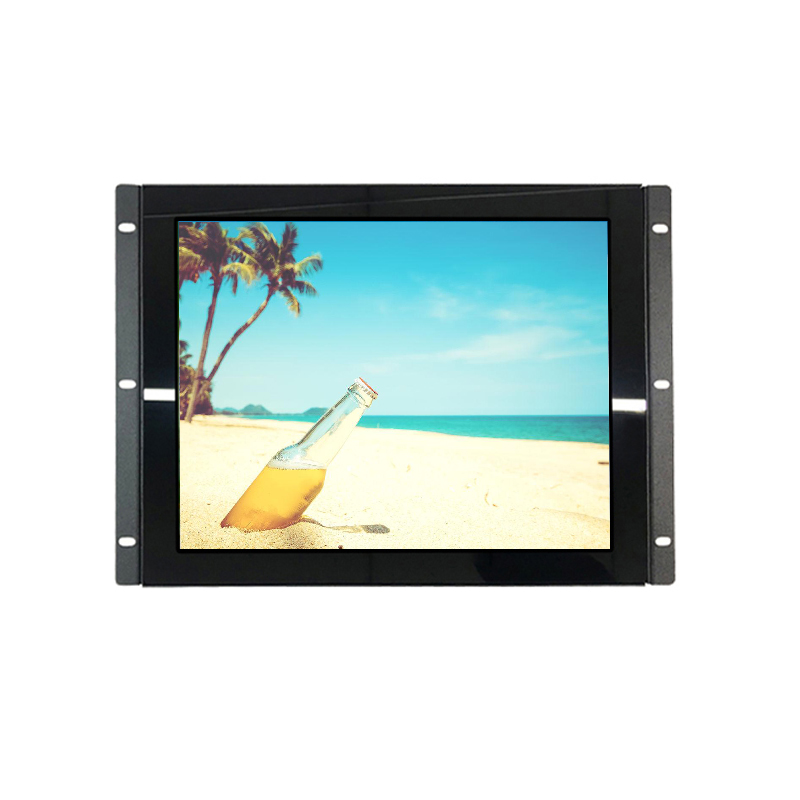

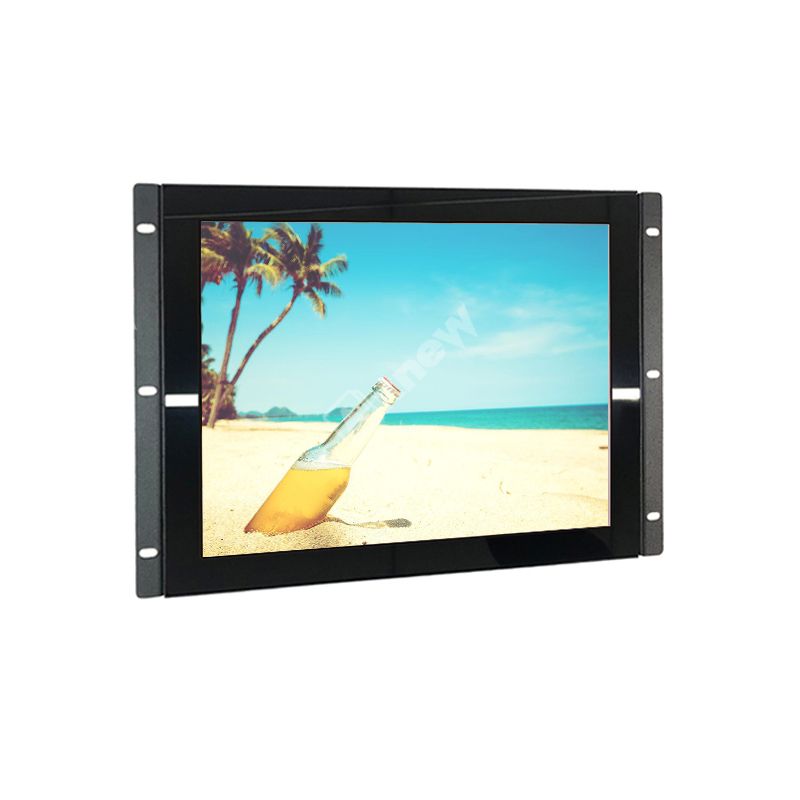

This 10.4-inch multi-touch all-in-one machine features a resolution of 1024X768, presenting clear and delicate images. With multi-touch technology, it offers sensitive and convenient operation for smooth interaction. The 4:3 screen ratio adapts to image display in various application scenarios. Equipped with high contrast and brightness, it ensures clear visibility of content under both indoor and outdoor lighting conditions.
It can be widely used in industrial control, commercial display, education, medical equipment and other fields, providing efficient and intuitive human-computer interaction experience for various industries.
| Model Number | AXD-10OPPC-VI4 |
| 10.4” Open Frame built touch all in one | |
| Case/Bezel Color | black |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 4:3 |
| Touch Panel | Industrial PCAP capacitive touch |
| Touch response time | 8ms (typical) |
| Optimal (native) Resolution | 1024X768 |
| LCD panel Pixel pitch | 0.264 x 0.264 mm |
| LCD panel Colors | 16.7 million |
| LCD panel Brightness | 350 cd/m2 |
| LCD panel Response Time | 5ms |
| Contrast Ratio | 600:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±60° or 120° total |
| Vertical (up/down) | 60°(up), 60°(down) or 120° total |
| CPU | Intel® Processor I3 (1.8GHz) |
| storage | 2G RAM;SSD 16G/32G Options |
| Serial Ports | 2 x COM ;RS232/RS485 |
| USB Ports | 2x USB V2.0; 2xUSB V3.0 |
| LAN | 1 x LAN RJ-45 connector |
| DC Power In | 1 x DC2.5 connector |
| Video Port | 1X Line-out |

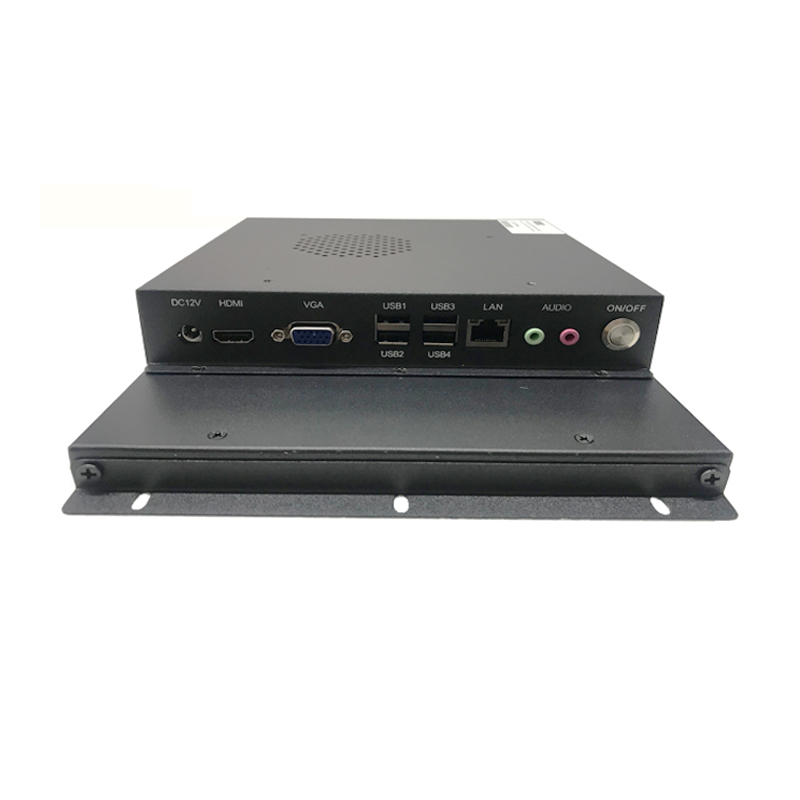

| Other Ports | 1x LAN, 1X VGA ,1xHDMI,1X Audio |
| Internal Sockets & Connectors | reserved for OEM project |
| Power Specification | DC 12V |
| Working Environment | |
| Temperature | Operating: -10°C to 60°C ;Storage -20°C to 65°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Dimensions | |
| Mounting Type | Embedded Installation,wall mounting |
| Mechanical dimensions | accords with drawings |
| Weight (Net) | 3.5 kgs/ piece, 1 piece/ carton |
| Drawings | Please contact us for details |
Packaging & Delivery
| Packing details | 1x 10 inch Open frame Industrial Touch Panel PC ; Packed in 5 piece/carton with protection foam Optional accessories:1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
