Sunlight readable with high brightness Open Frame LCD Monitor offers flexible options for TFT LCD Panel, touchscreen, signal interface and bracket mounting.
It is suitable for outdoor advertising, traffic information, sports venues, security monitoring, and other occasions that require high-brightness display.
The series with 1000nits high brightness sunlight readable lcd for outdoor application, and with standard integrated metal housing for easy installation, support rear mounting and VESA mount .

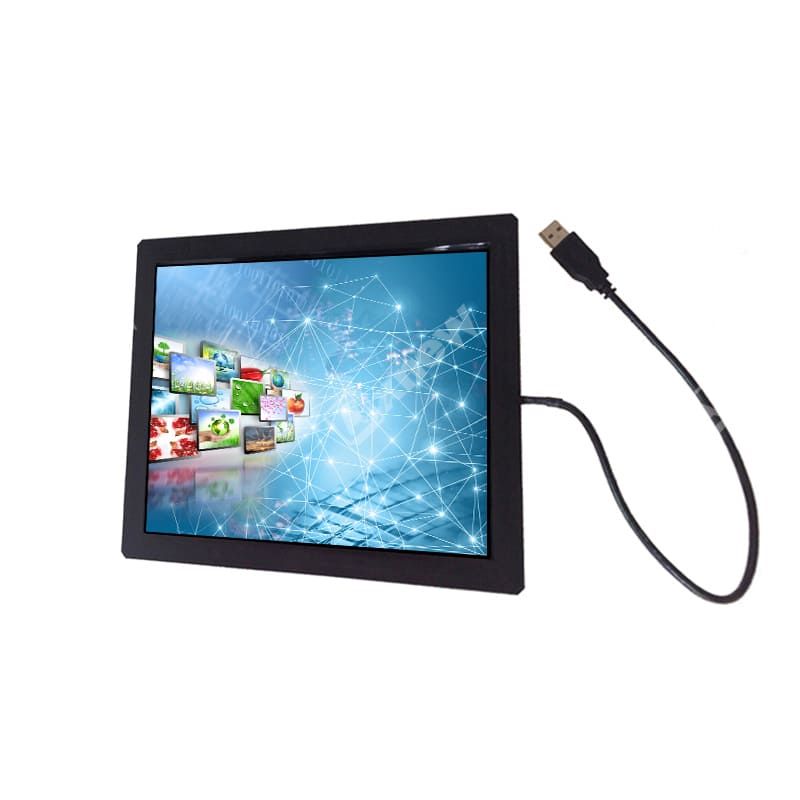

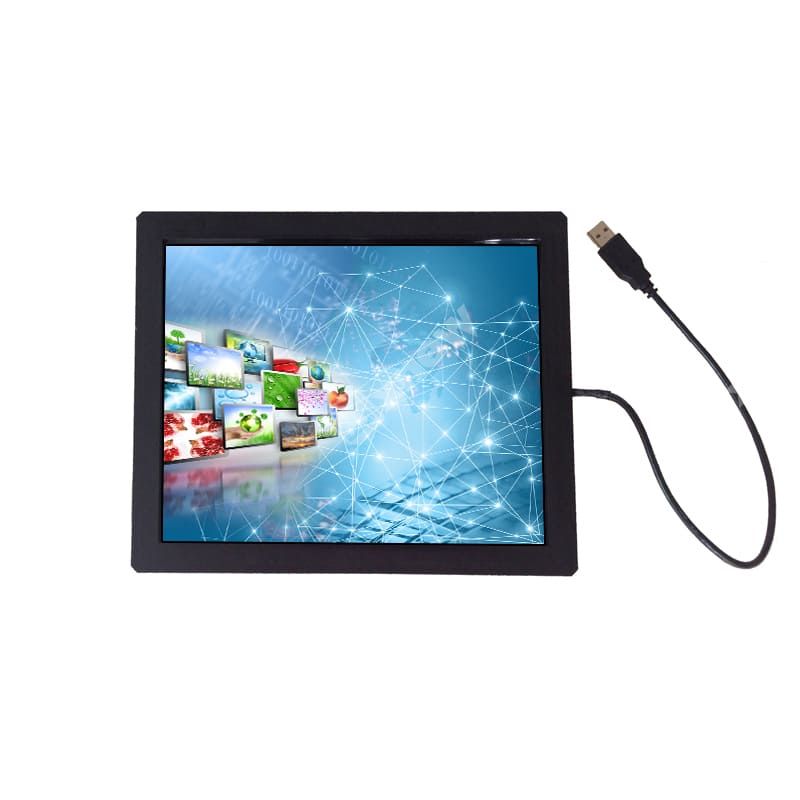

AXD-10OPN1P3-VH4 is 10.4” Open Frame monitor with 1000Nits high brightness, optional with IR infrared touch screen with IP65 front bezel design . Its long use life with wide temperature will ensure your machines’ high performance and high touch accuracy in the sun.
| Display Specifications | |
| Display | 10.4″ Color TFT sunlight readable Monitor |
| Model Name | AXD-10OPN1P3-VH4 |
| Active Display Area (mm) | 211.2(H)x158.4(V) |
| Pixel Pitch (mm) | 0.264(H)x0.264(V) |
| Resolution (Pixel) | VGA (800X600) 16.2M /6 bit + FRC |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 600:1 |
| Viewing Angle (CR >=10) | 160/120 |
| Power consumption | 20 W typical, normal operation |
| Touch Screen | IR Infrared touch screen, please request if needed |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |

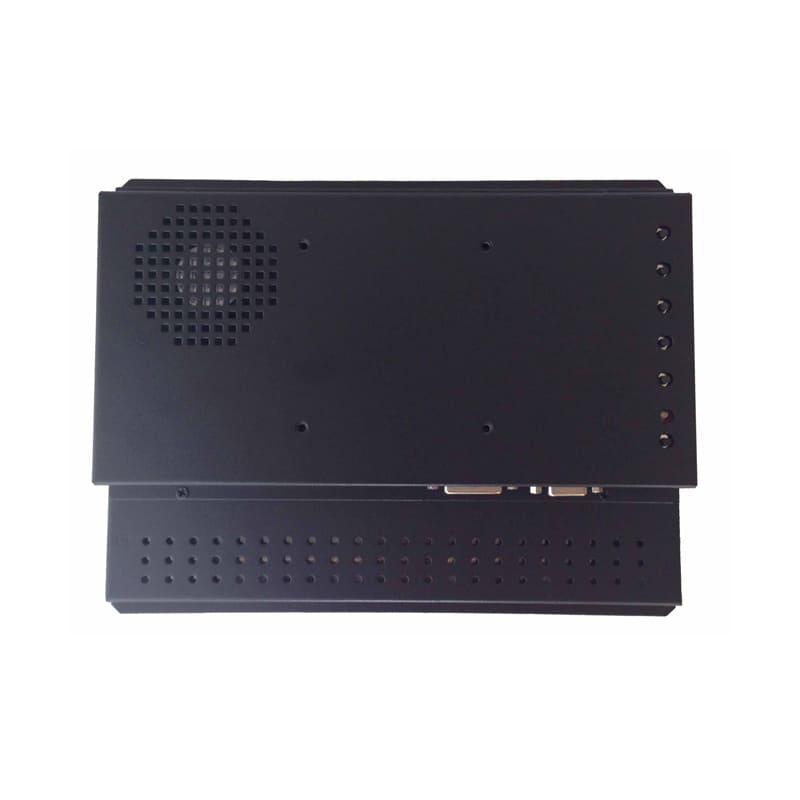

| Construction | Steel open frame & black Color |
| Dimensions | Subject to the updated drawings |
| Mounting | Edge fixing holes,Vesa Mounting |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -30~80ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 10.4″ high brightness open frame Monitor and power adapter for outdoors application |
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. Open frame design to protect the LCD screen
5. VGA DVI interfaces ; touch with USB interface options
6. Sunlight readable 10.4 inch open frame touch LCD for application control , advertising player ,campus and industrial terminals etc
